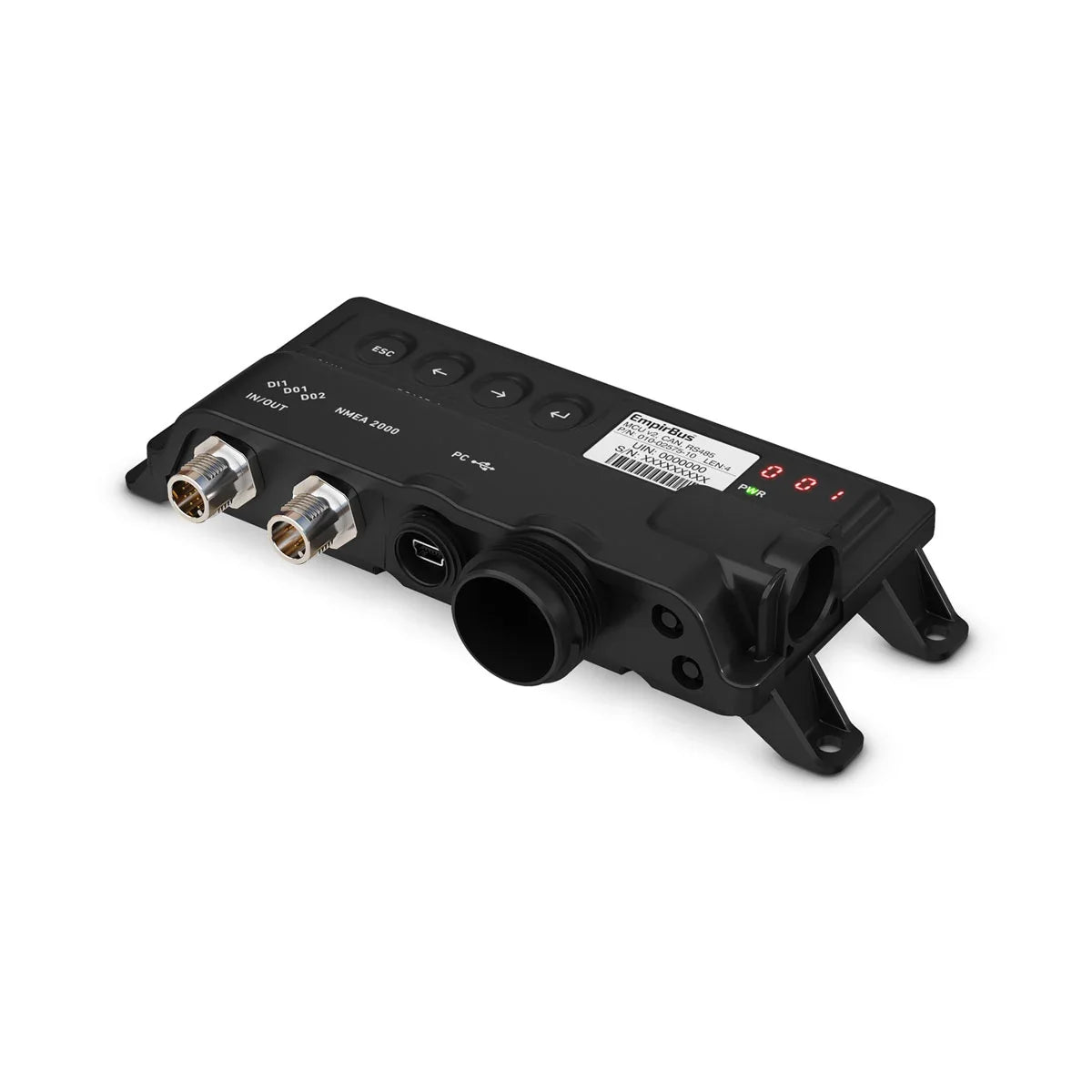

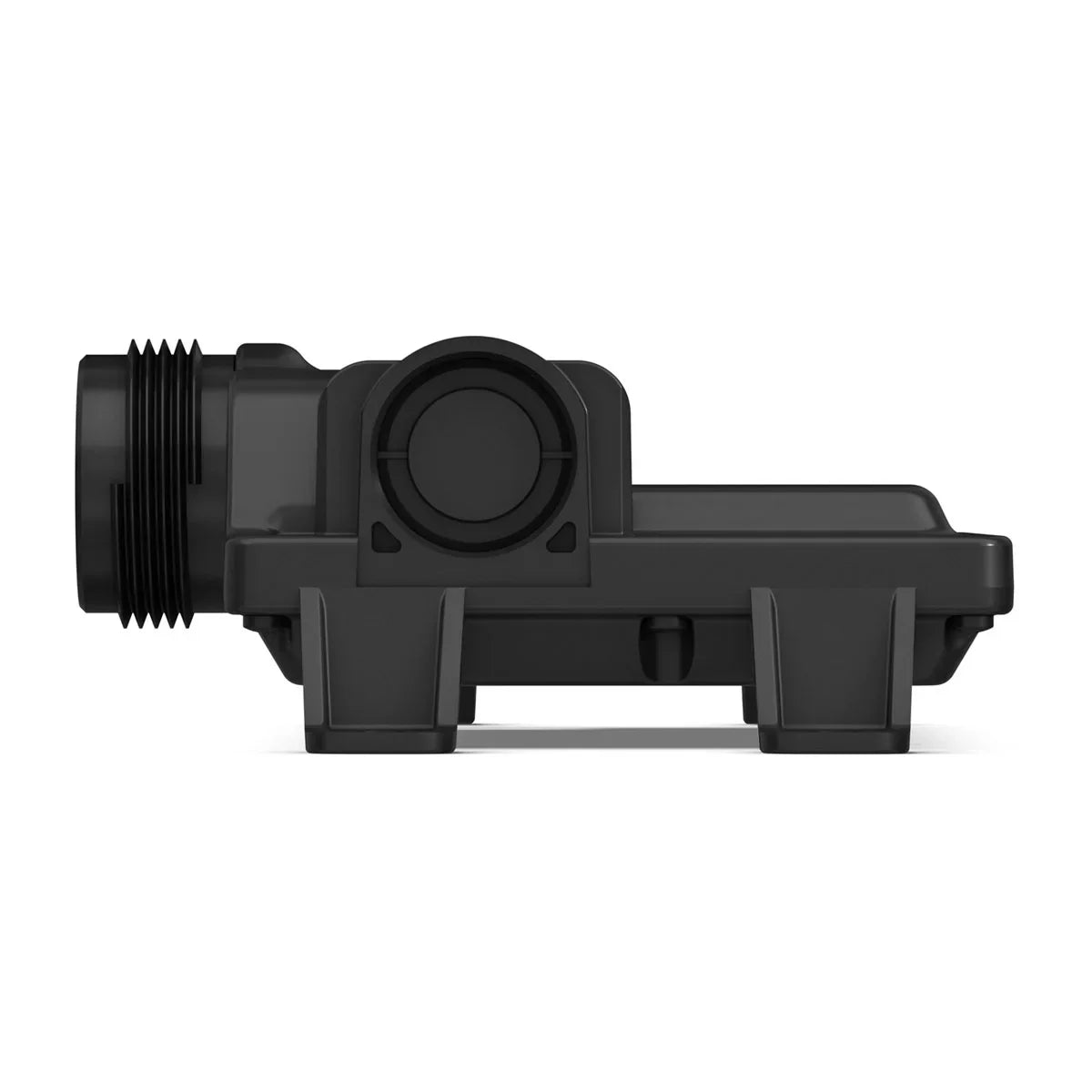

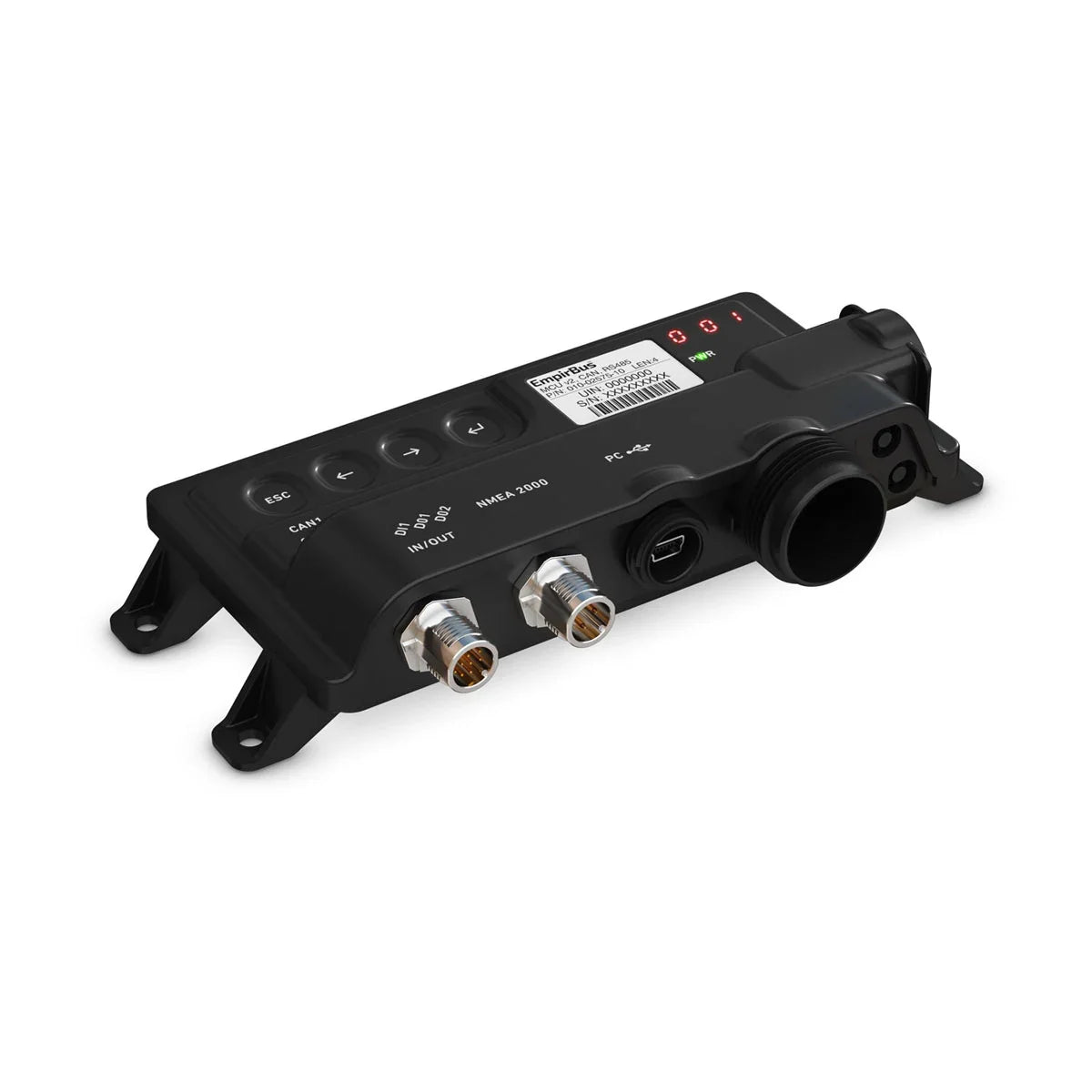

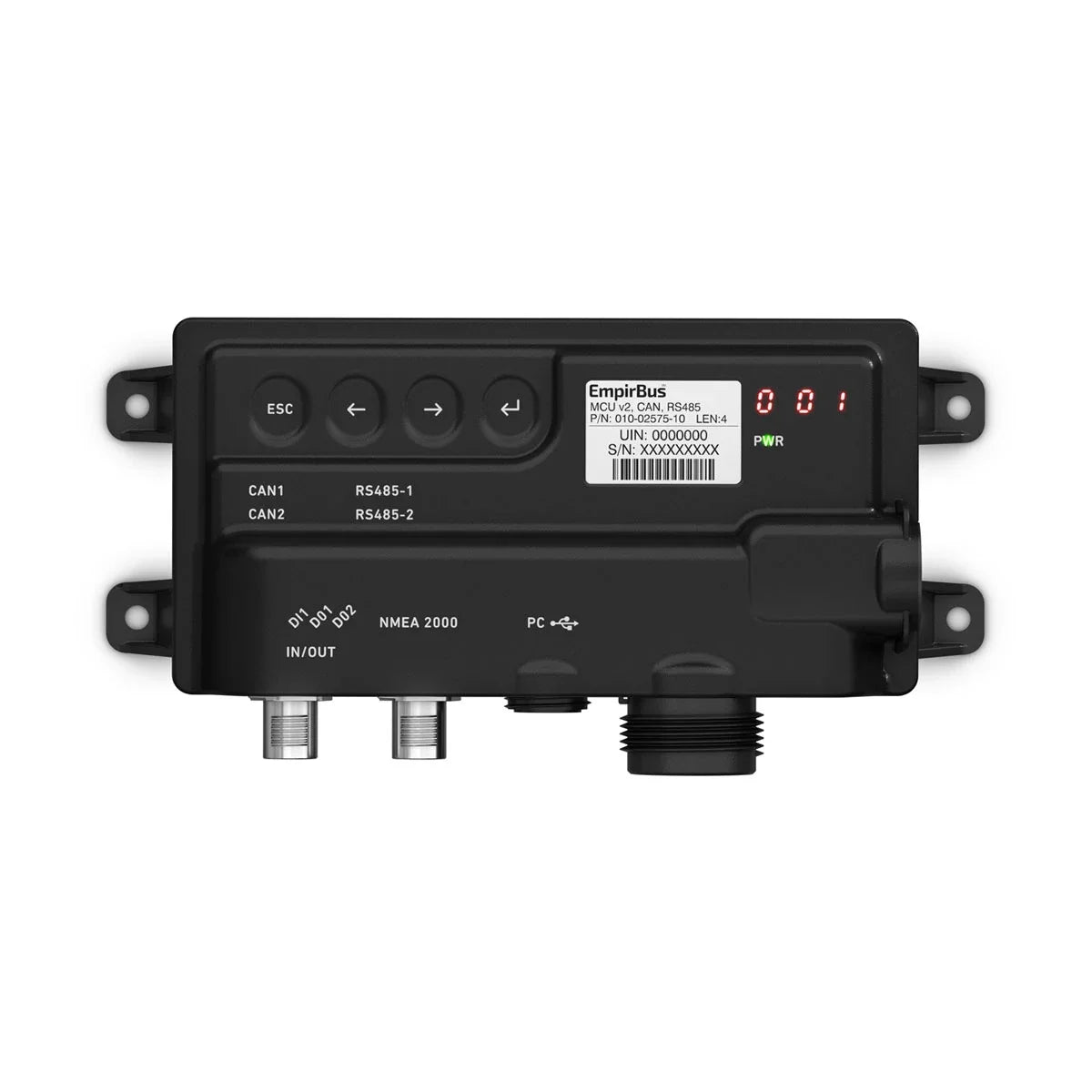

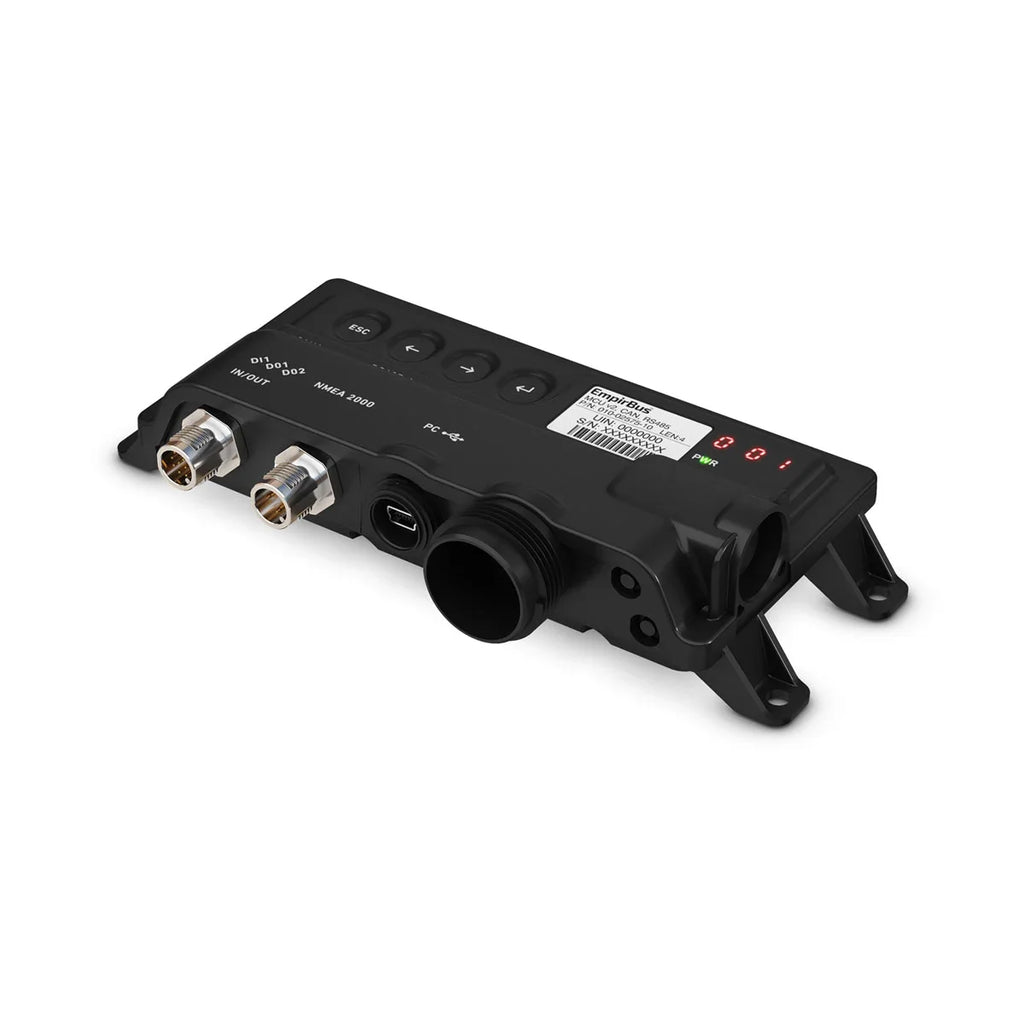

EmpirBus™ MCU v2
$0.00
Skip to product information
EmpirBus™ MCU v2
$0.00
Overview
Specs
General | |
| Dimensions (WxHxD) | 6.8" x 3.5" x 1.8" (173 x 89 x 32.5 mm) |
| Weight | 7.1 oz (200 g) |
| Communication | CAN-bus NMEA 2000® network LEN-4 2 auxiliary CAN ports 2 auxiliary RS485 ports |
| Power supply | Powered via NMEA 2000 |
| Power consumption | Max/average 195 mA @ 9 V/165 mA @ 9 V |
| Supply voltage | 9-32 Vdc |
| Ambient temperature | -20° C to +55° C |
| Enclosure water rating | IP65 |
Connector | |
| NMEA 2000 | Micro 5-pin M12 male, mini USB, 12-pin M12 male |
