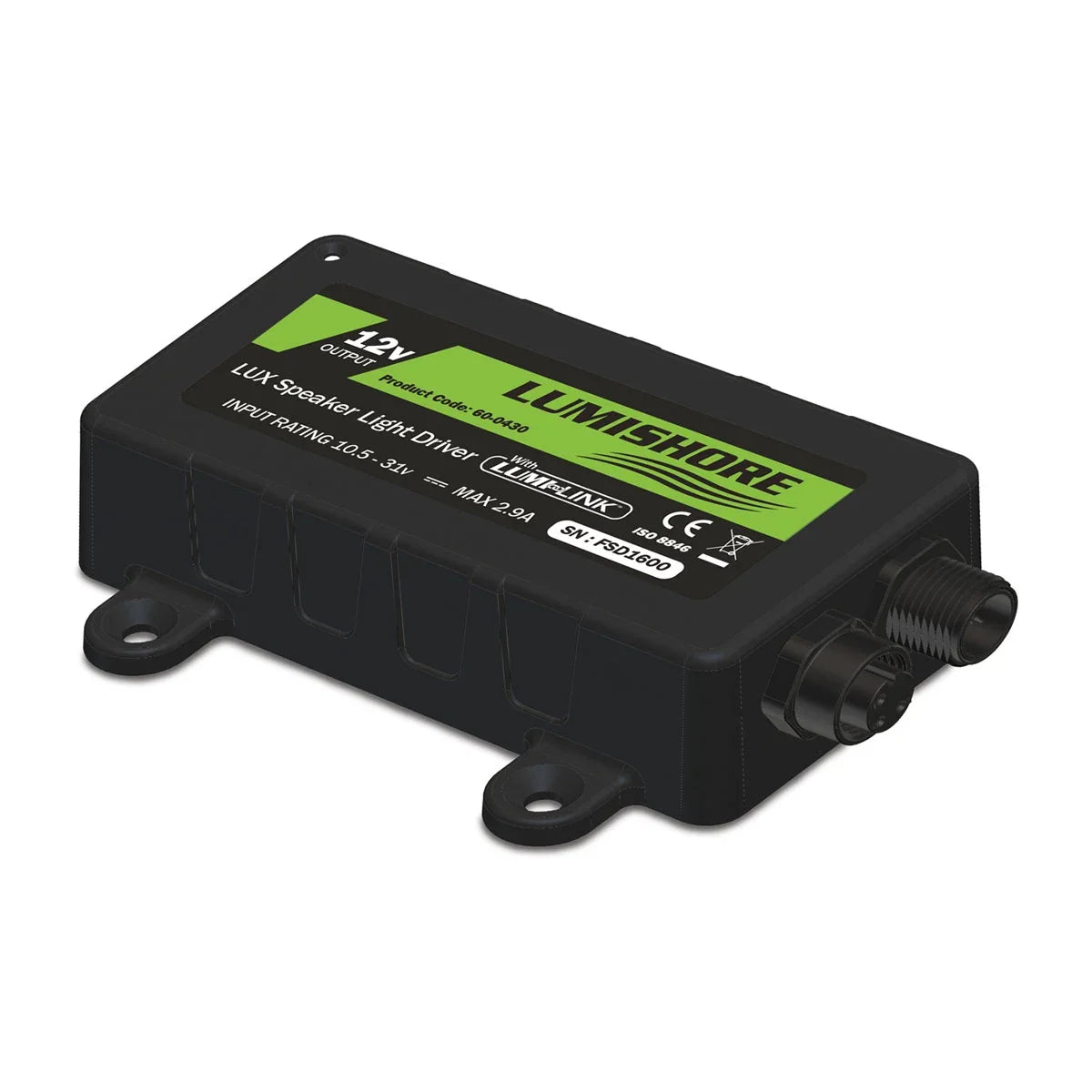

Lumishore® LUX Speaker Light Driver
Sale price
$50.00
Regular price $249.99
Skip to product information
Lumishore® LUX Speaker Light Driver
Sale price
$50.00
Regular price $249.99
Overview
SYNC YOUR BOAT LIGHTS TO THE BEAT
This driver allows you to connect your illuminated speakers to your LUX lighting system. It provides full-spectrum CRGBW color control, white color tuning and advanced lighting features from your EOS-LUX command center — or as a stand-alone module operated from an on/off switch.
COMPATIBLE WITH CRGBW AND RGBW LED MARINE SPEAKERS
CONTROLS UP TO 16 SPEAKERS
CONTROL VIA MOMENTARY SWITCH OR COMPATIBLE MFD
IP68-RATED FOR DUST AND WATER PROTECTION
3-YEAR WARRANTY
Specs
General | |
| Warranty | 3 years |
|---|---|
| Number of lights per Eclipse Comand Center/Expansion module zone | Maximum 16 speakers |
| Electrical installation | Plug and play/hard-wired |
| Operating voltage | 12 V/24 V |
| Operating voltage range | 10.5-31 VDC |
| Current consumption 12 V (max) | 0.05 A (device only) |
| Current consumption 24 V (max) | 0.03 A (device only) |
| Average power draw | 0.6 W (device only) |
| Construction | Powder-coated, marine-grade aluminium |
| Water and dust rating | IP68 |
Control Options | |
| Momentary switch | yes |
|---|---|
| EOS-LUX Command Center | yes |
| Compatible MFD | yes |
| EOS-LUX-SUPRA display | yes |
Mounting Dimensions | |
| Dimensions (width) | 4.4" (113 mm) |
|---|---|
| Dimensions (depth) | 1.06" (27 mm) |
| Dimensions (height) | 3.03" (77 mm) |
| Mechanical installation | Screw fixings |
