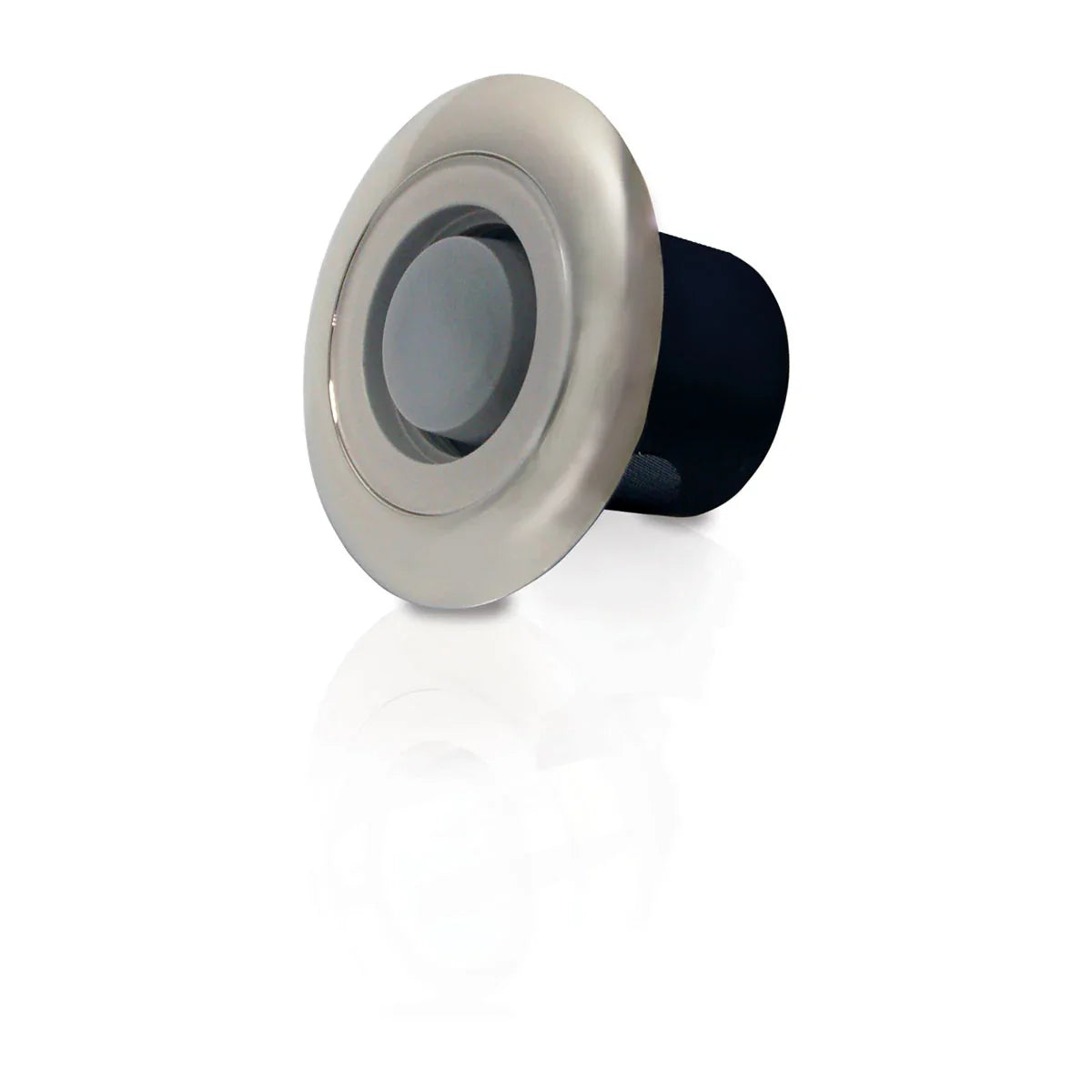

Lumishore® LUX CL25
Chrome
Sale price
$16.00
Regular price $79.99
Skip to product information
Lumishore® LUX CL25
Sale price
$16.00
Regular price $79.99
Overview
COMPACT COURTESY LIGHTING
Get a little extra light wherever you need it with these small but powerful LEDs — perfect for external walkways, stairs and the architectural elements of your boat.
CRGBW LIGHTING
2,700–6,500 K TEMPERATURE TUNABLE
SIMPLE 3-WIRE INSTALLATION
CONTROL VIA COMPATIBLE MFD, LUMISHORE DISPLAY, SMART DEVICE OR MOMENTARY SWITCH1
IP68-RATED FOR DUST AND WATER PROTECTION
3-YEAR WARRANTY
- The momentary switch requires a LUX Control Module; the MFD, Lumishore display or smart device requires the EOS-LUX Command Center
In the Box
- CL25 light
- CL25 bezel (based on selection)
Specs
General | |
| Warranty | 3 years |
|---|---|
| LED colors | CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture |
| LED type | 3 x 0.5 W Red 3 x 0.5 W Green 3 x 0.5 W Blue 3 x 0.5 W Cold White 3 x 0.5 W Warm White |
| Beam angle | ultra wide |
| Number of lights per LUX light control module | 16 maximum |
| Electrical installation | 3 wire |
| Operating voltage | 10.5-31 VDC (via LUX Control Module) |
| Current consumption 12 V (max) | 0.1 A |
| Current consumption 24 V (max) | 0.05 A |
| Average power draw | 1.2 W |
| Construction | Stainless steel bezel with black ABS body |
| Water and dust rating | IP68 |
Control Options | |
| Momentary switch | yes (via LUX Control Module) |
|---|---|
| EOS-LUX Command Center | yes |
| Compatible MFD | yes (via EOS-LUX Command Center) |
| Smart device | yes (via EOS-LUX Command Center) |
| EOS-LUX-SUPRA display | yes (via EOS-LUX Command Center) |
Mounting Dimensions | |
| Mounting diameter clearance (with bezel) | 1.77" (45 mm) |
|---|---|
| Mounting depth clearance | 0.98" (24.9 mm) |
| Frontal protrusion (profile) | 0.19" (4.5 mm) |
| Mounting hole | 1" (25 mm) |
| Mechanical installation | Screw fixings and marine adhesive (not supplied) |
