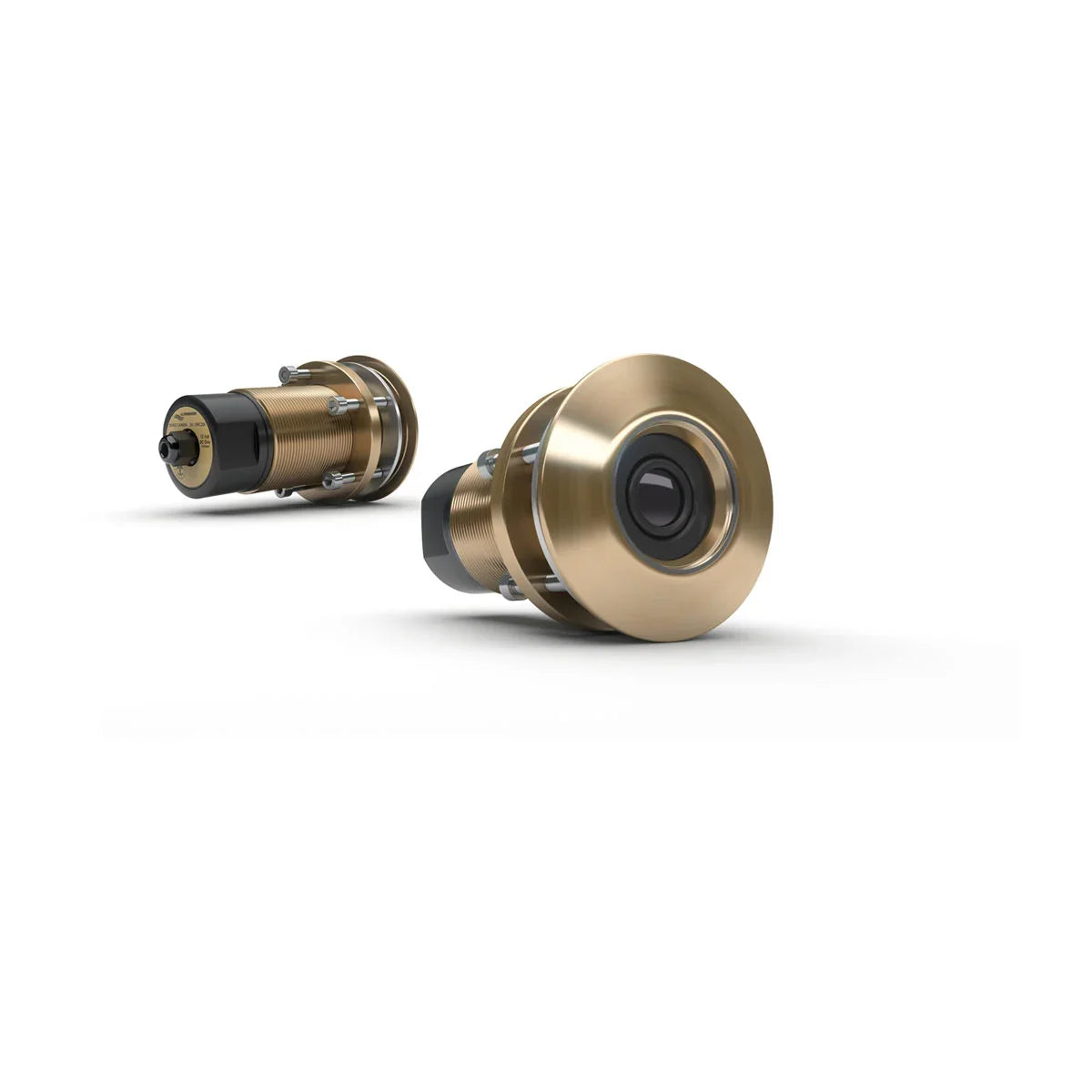

Lumishore® TIX402 Camera
Sale price
$385.00
Regular price $1,924.99
Skip to product information
Lumishore® TIX402 Camera
Sale price
$385.00
Regular price $1,924.99
Overview
YOUR HIGH-DEFINITION EYE BELOW THE SURFACE
View underwater terrain and sea life in magnificent detail with this incredibly compact, flush-fit camera that offers flexible mounting options on your hull.
FULL HD 1080P RESOLUTION
67-DEGREE VIEWING ANGLE
WIDE DYNAMIC RANGE
LOW-LIGHT MODE
DYNAMIC NOISE REDUCTION
IP68-RATED FOR DUST AND WATER PROTECTION
In the Box
- TIX402 camera with fixings
Specs
General | |
| Resolution | Full HD (1080p) |
| Lens | 3.6 mm (fixed focus) |
| Viewing angle | 67° |
| Minimum illumination | 0.01 LUX |
| Camera output | HD-SDI or composite (NTSC/PAL) |
| Operating voltage | 12 VDC |
| Current consumption 12 V (max) | 0.25 A |
| Average power draw | 3 W |
| Construction | Marine bronze body with Borosilicate glass lens |
| Water/Dust rating | IP68 |
| Warranty | 2 years |
Mounting Dimensions | |
| Mounting diameter clearance (with bezel) | 3.47" (88 mm) |
| Frontal protrusion (profile) | 0.32" (8 mm) |
| Mounting hole | 2.25” (57 mm) |
| Dimensions (Width) | 3.47" (88 mm) |
| Dimensions (Depth) | 5.67" (144 mm) |
| Dimensions (Height) | 3.47" (88 mm) |
| Mechanical installation | Bonding required (via connection on housing). Metal hull isolation (via optional isolation sleeves - kit sold separately). |
