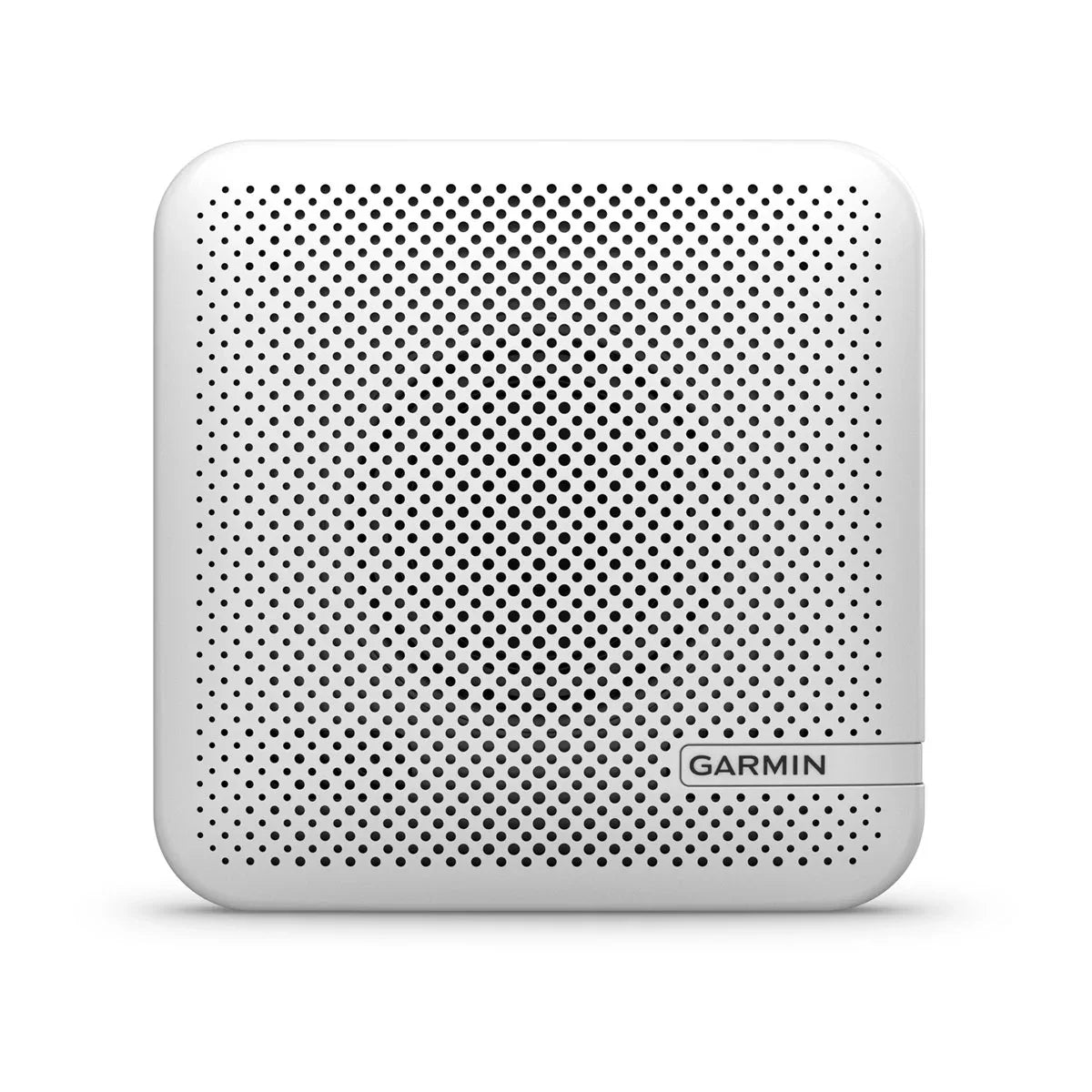

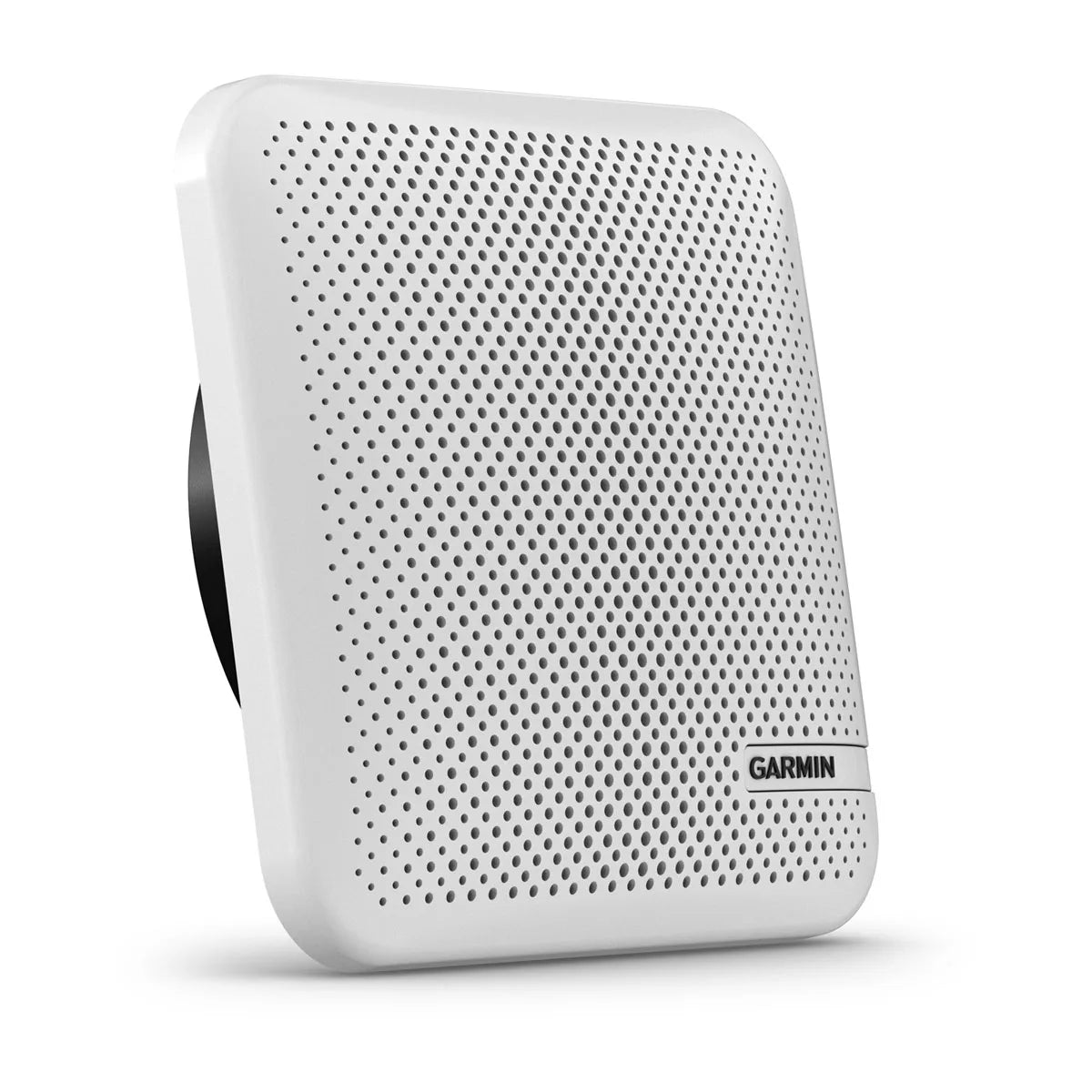

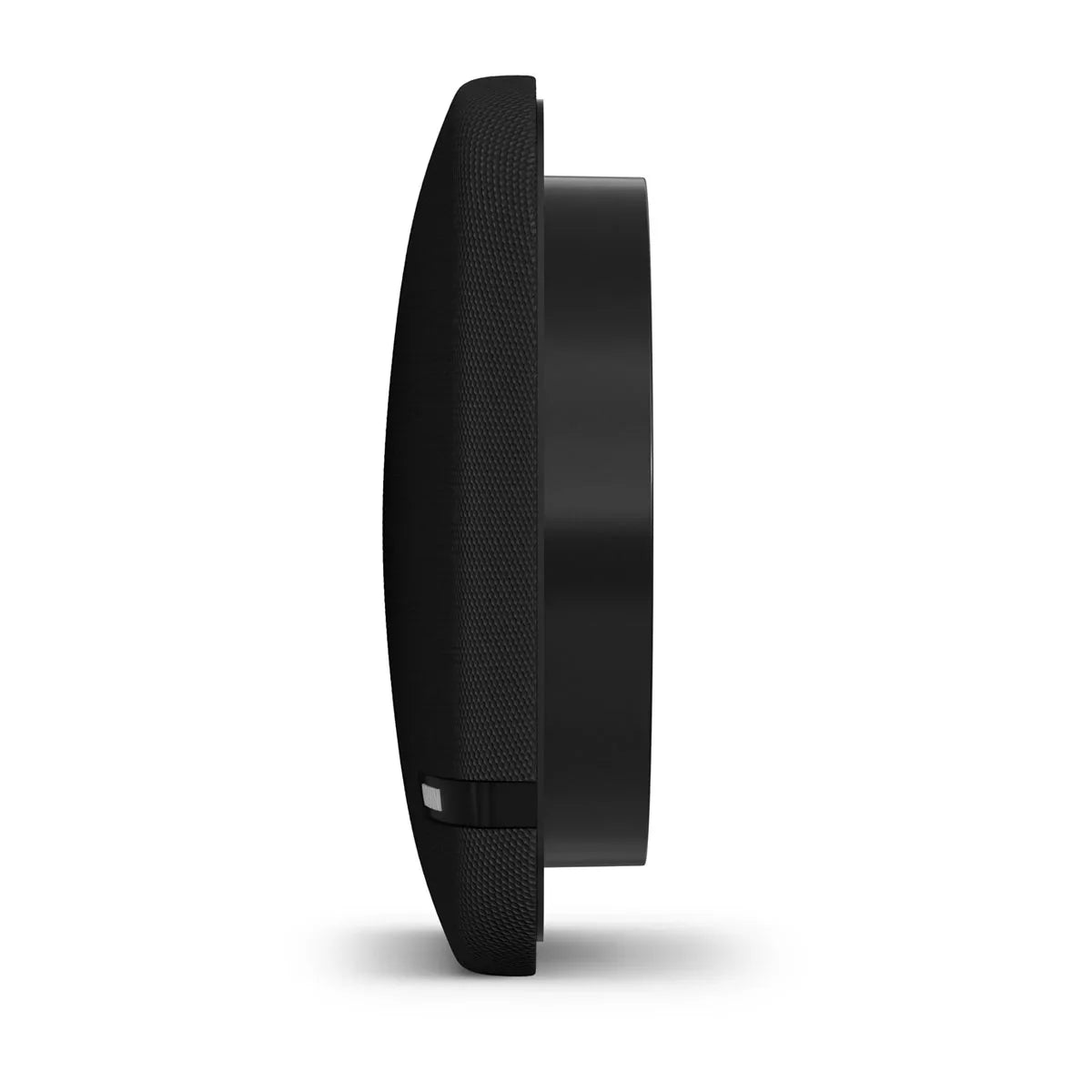

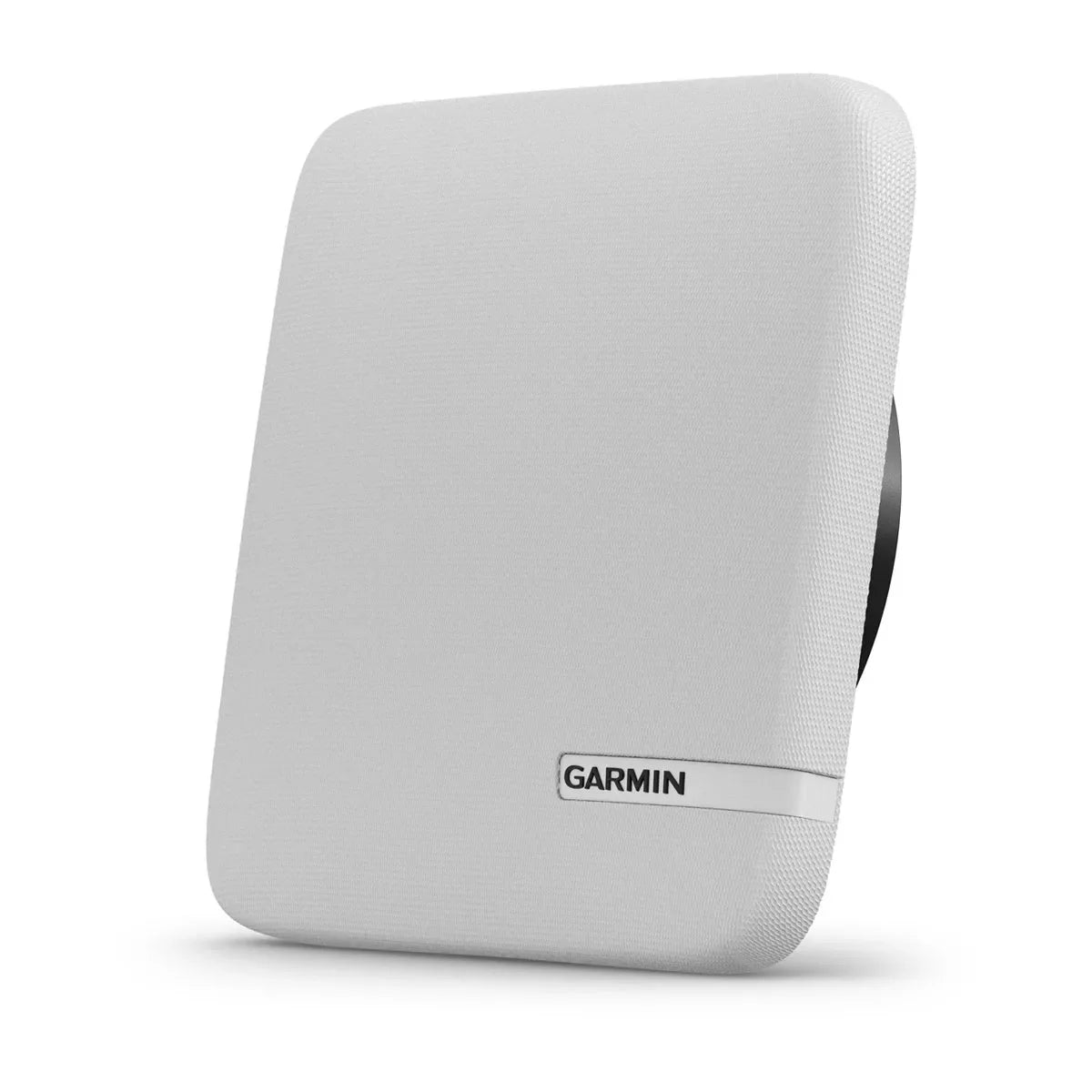

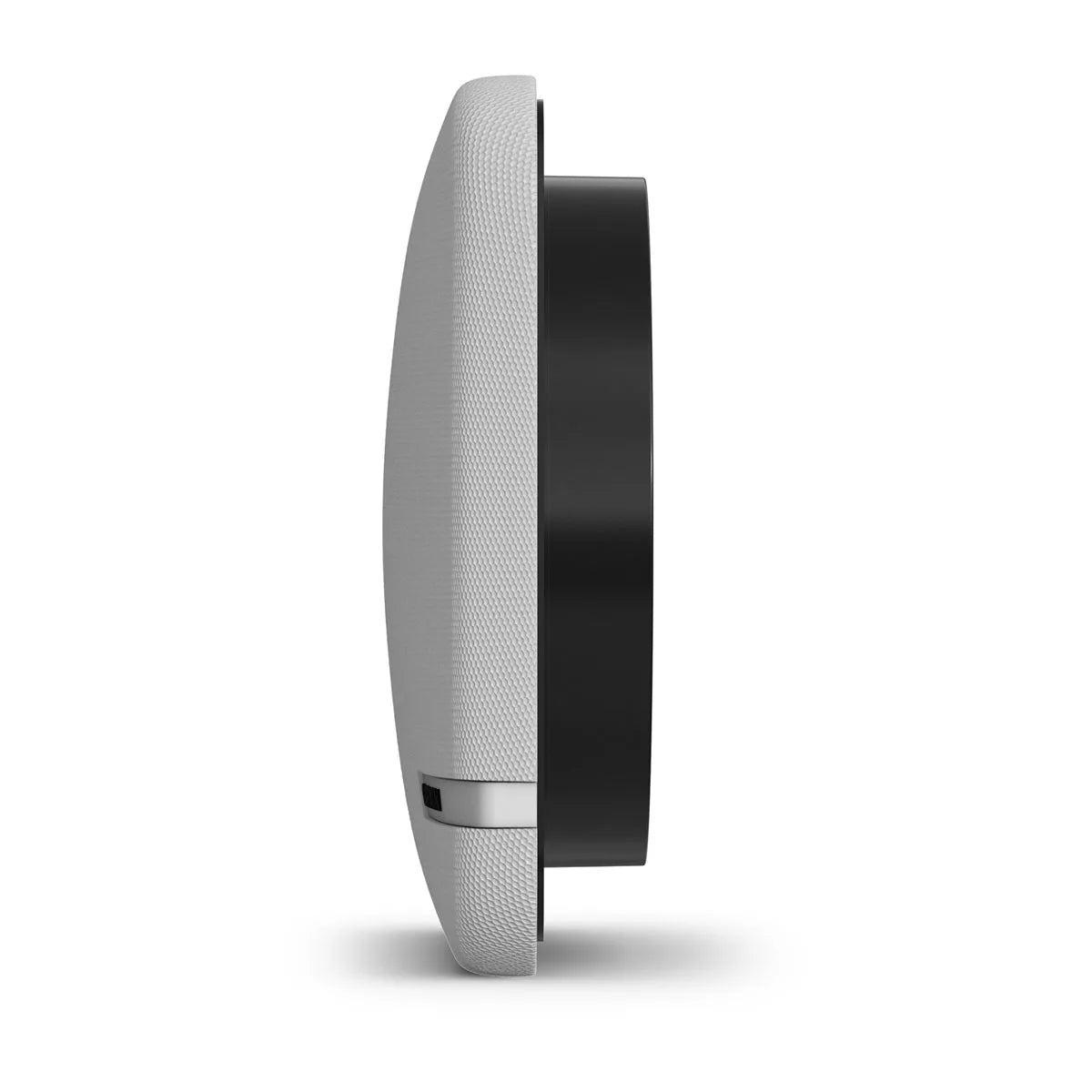

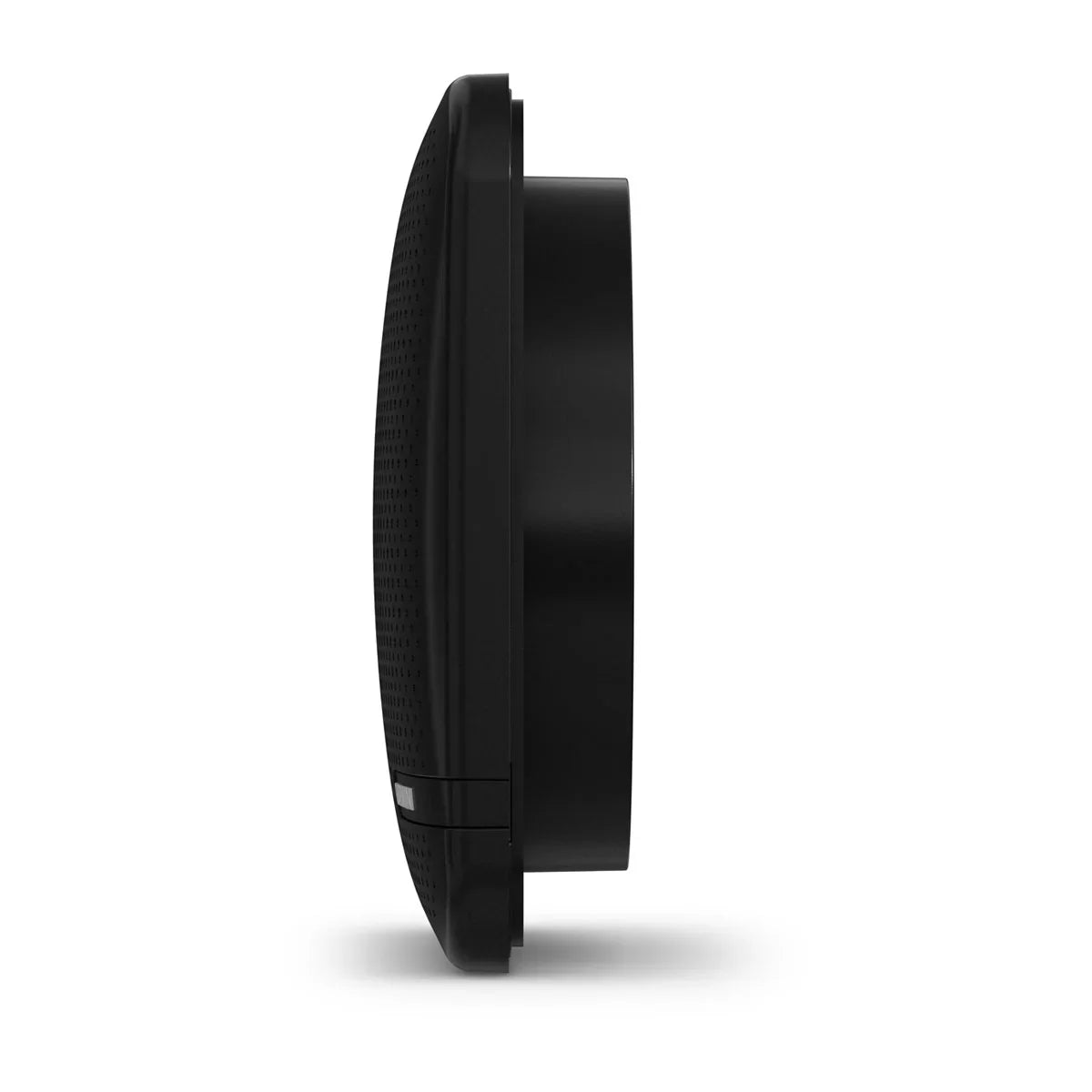

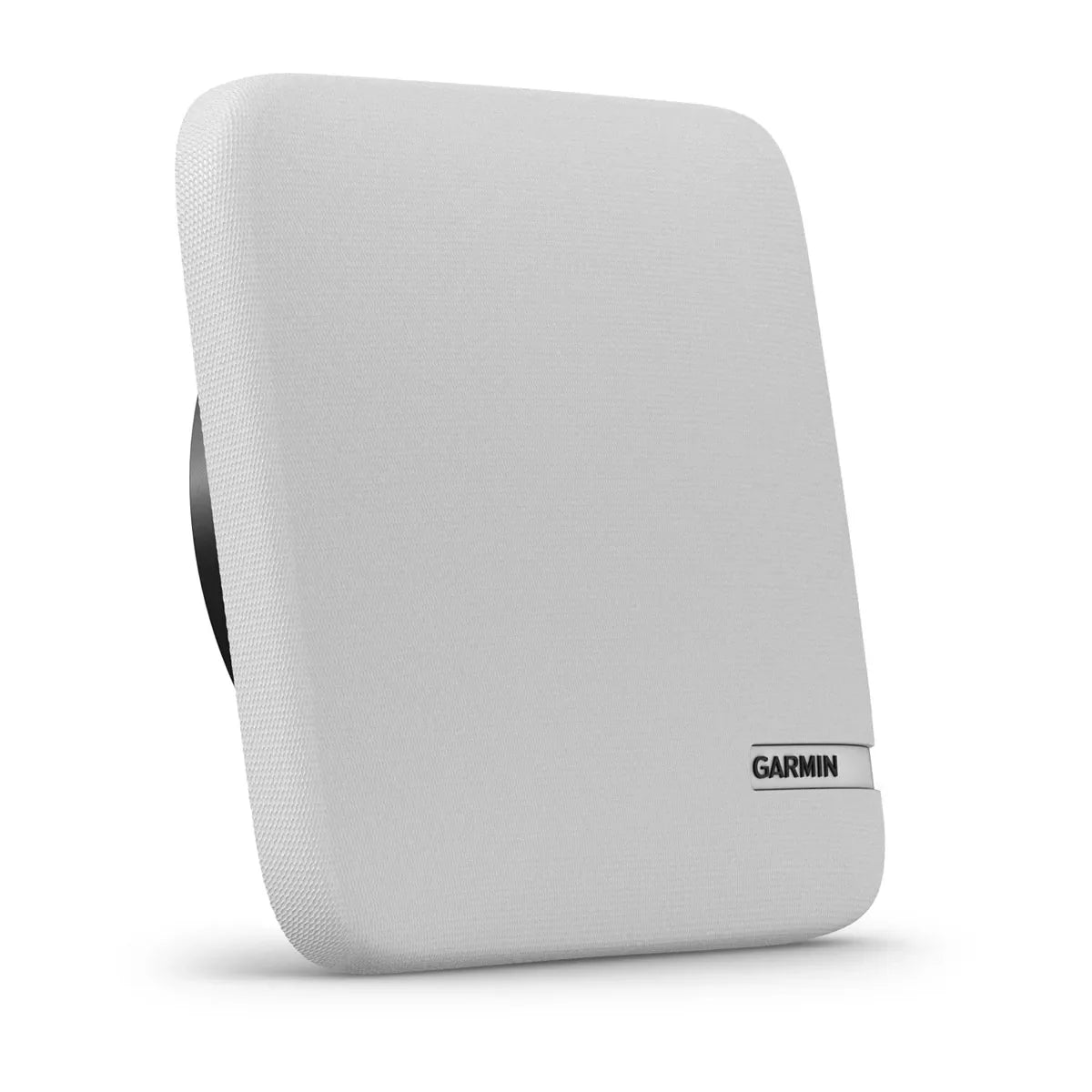

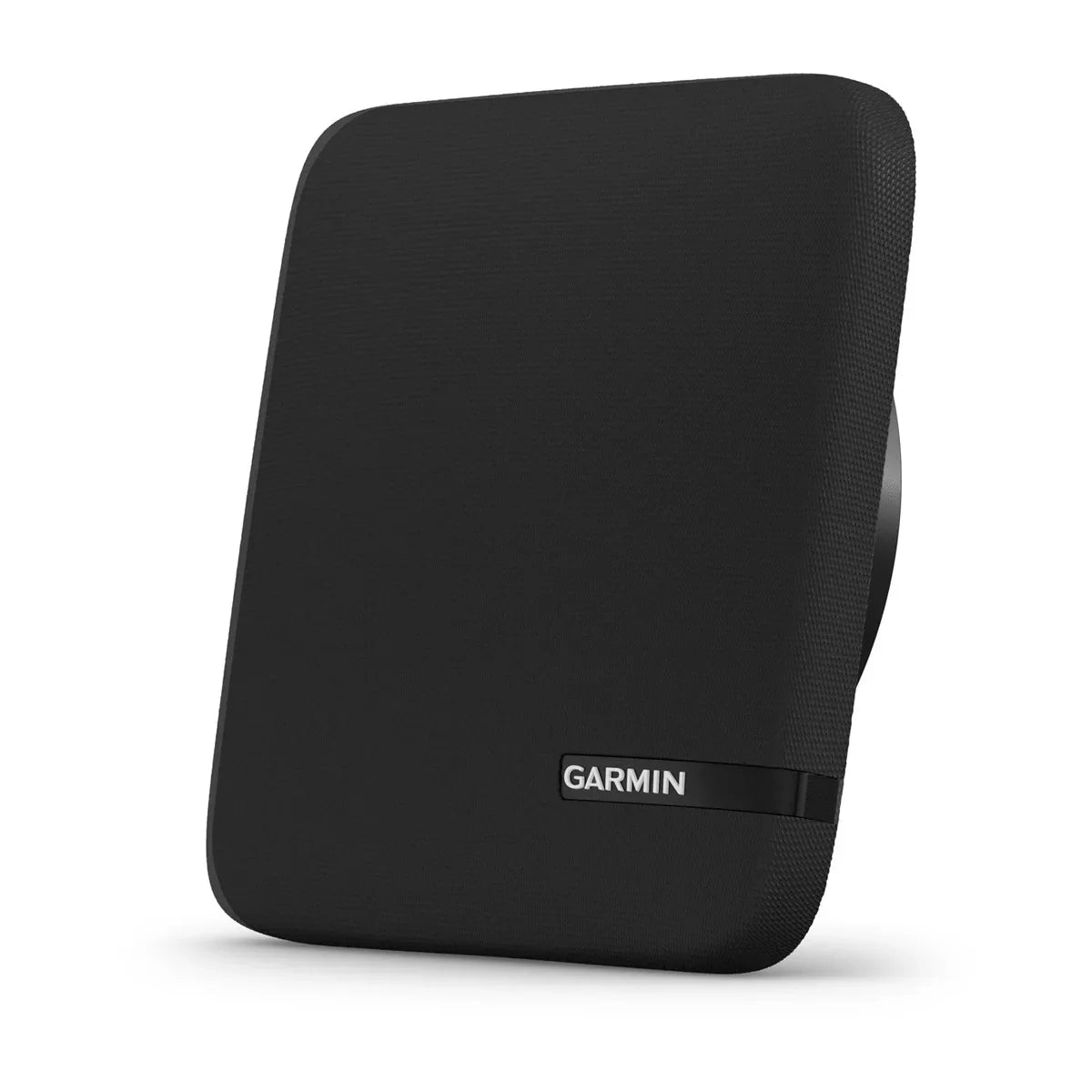

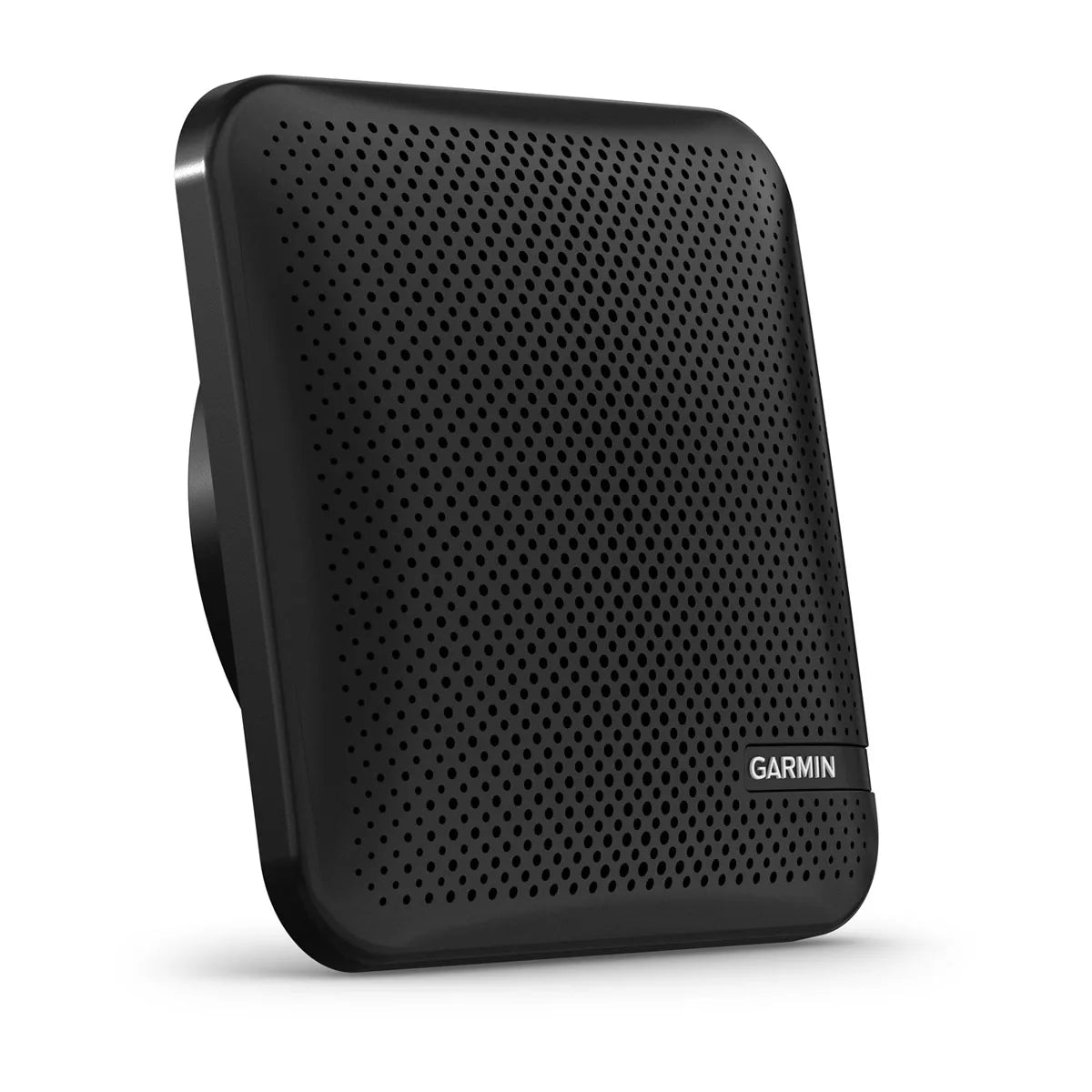

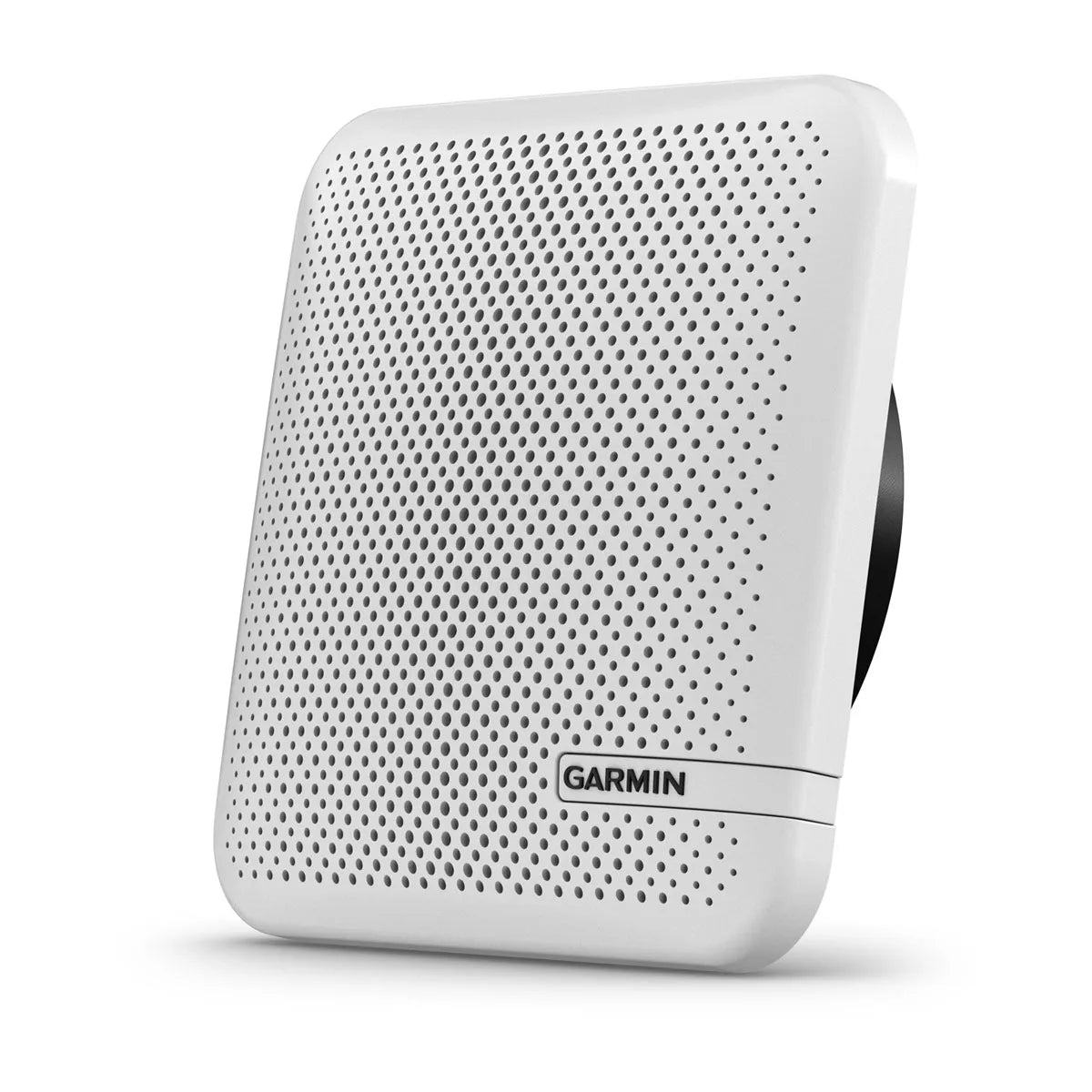

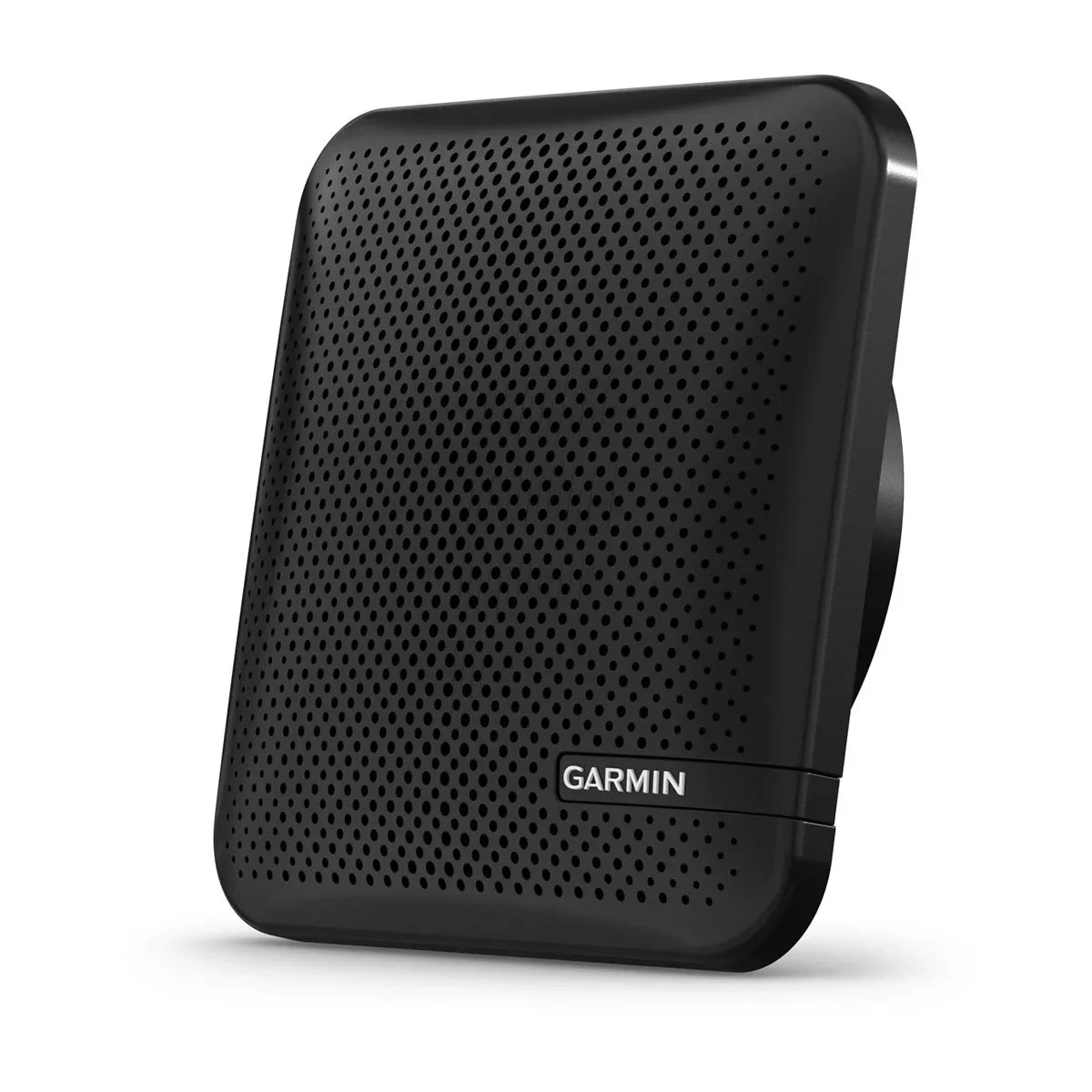

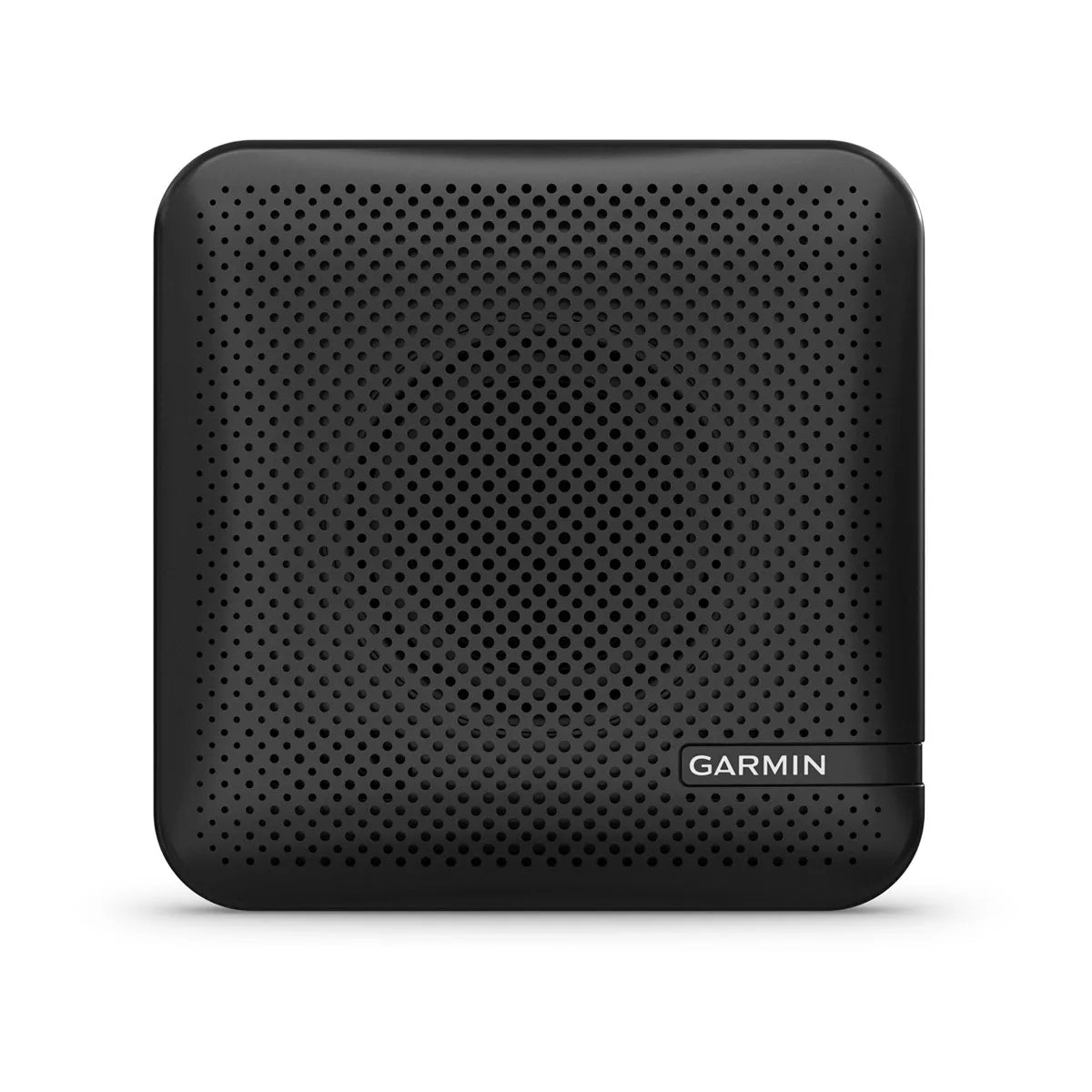

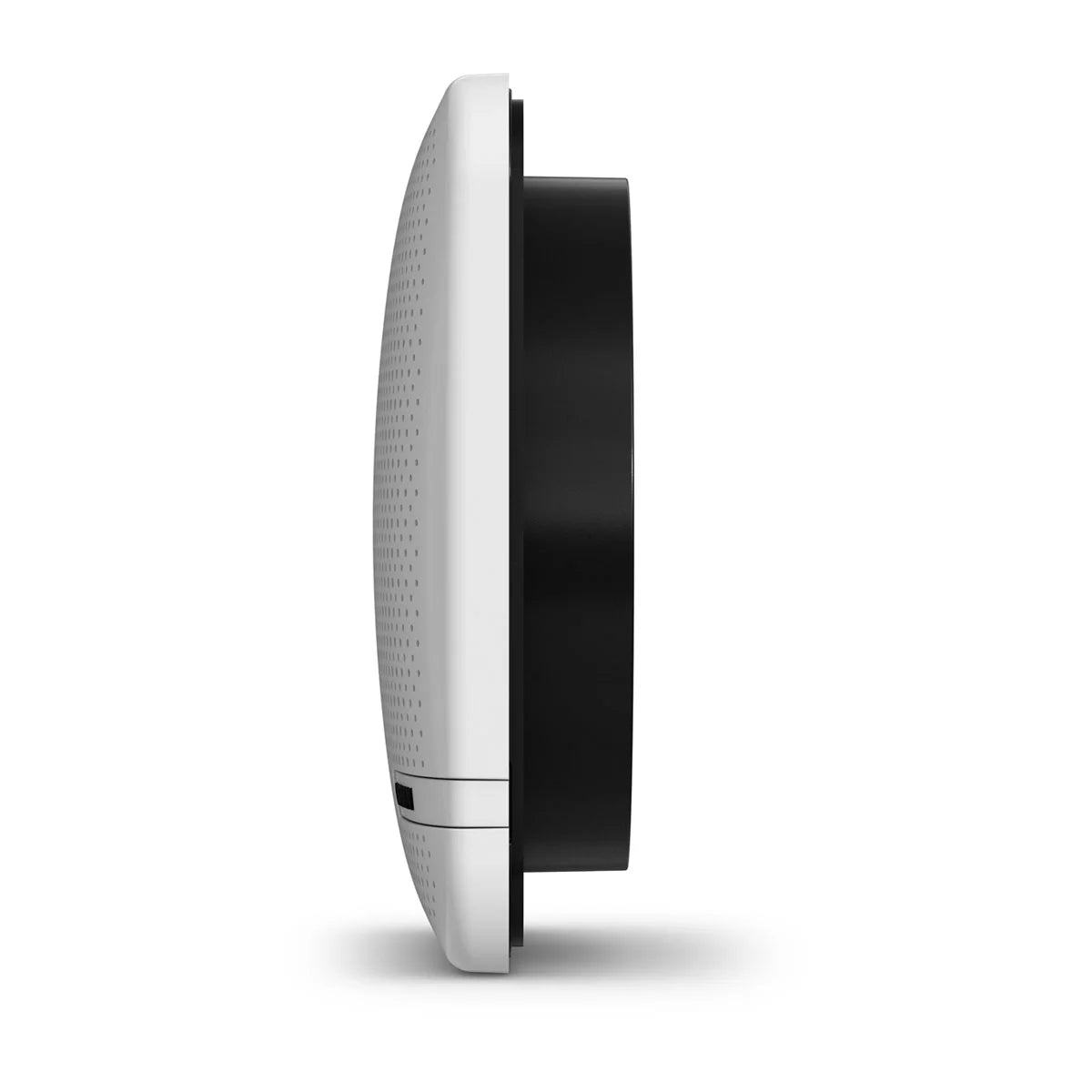

Garmin Signal™ External Speaker
6.5" White Shallow Mount Marine Speaker (Single)
Sale price
$14.00
Regular price $69.99
Skip to product information
Garmin Signal™ External Speaker
Sale price
$14.00
Regular price $69.99
Overview
In the Box
- One 6.5” shallow mount speaker for the Garmin Signal™ marine VHF radio series (white or black, depending on version selected)

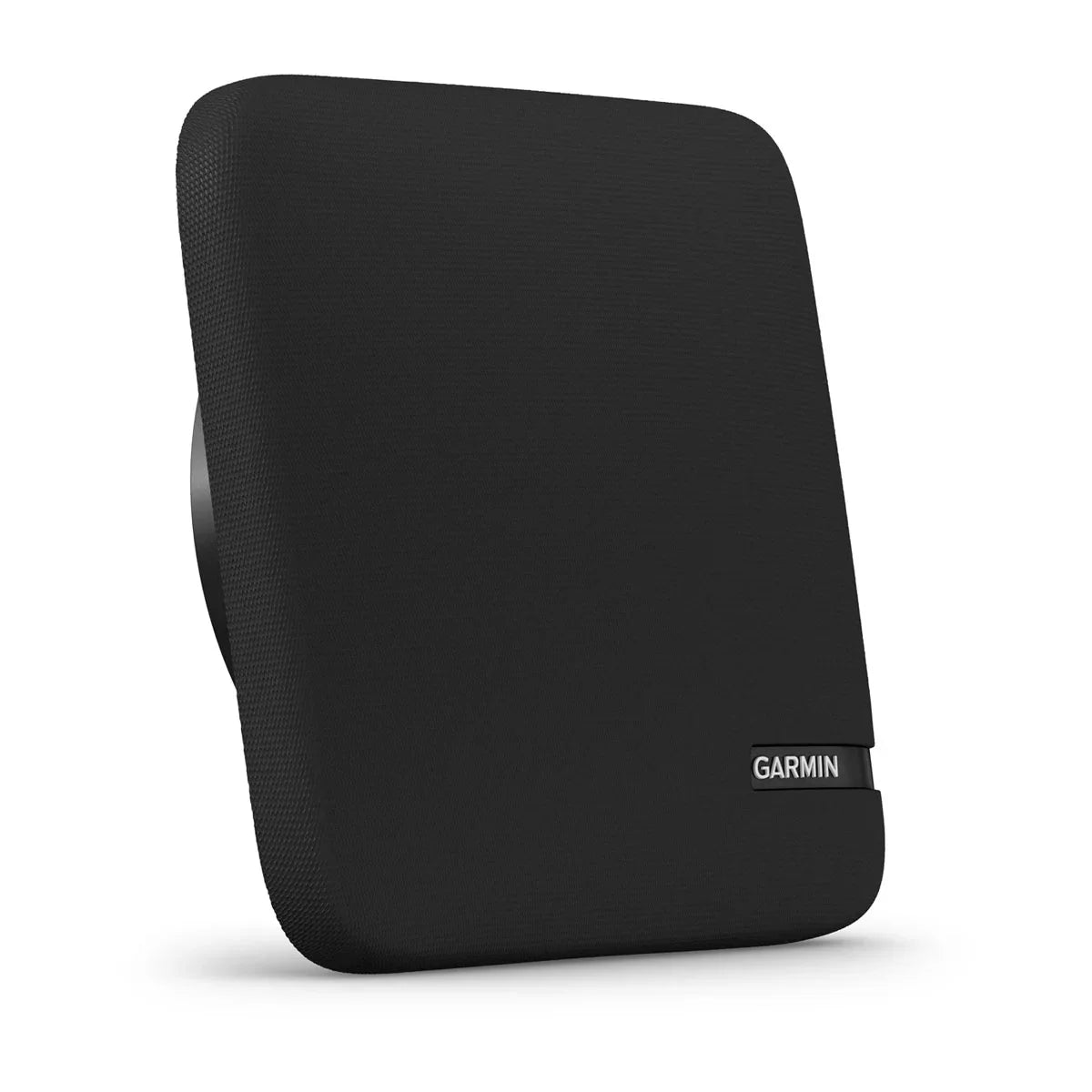

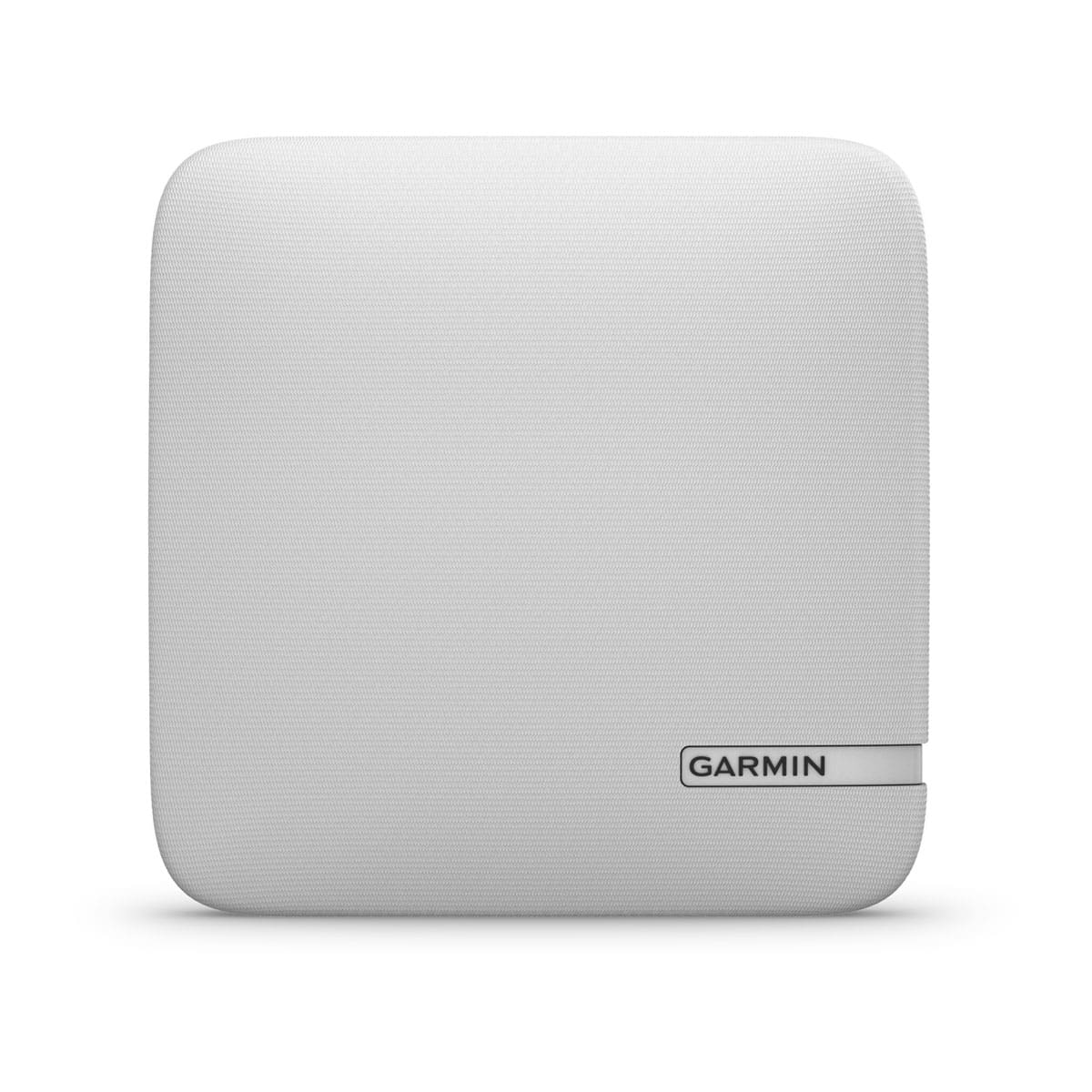

- Fabric grille
- Plastic grille
- Surface mount spacer
- Mounting hardware
- Mounting template
- Documentation
Specs
General | |
| Warranty | 1 year |
|---|---|
| Color | Classic White or Classic Black |
| Physical dimensions (Height) | 6.1" (155 mm) |
| Physical dimensions (Width) | 6.1" (155 mm) |
| Physical dimensions (Depth) | 1.81" (46 mm) |
| Weight | 1.21 lbs (0.55 kg) |
| Water and dust rating | IP65 |
| Speaker type | Full Range |
| Continuous power handling (RMS) | 15 W |
| Sensitivity (SPL @ 1 W/1 m) | 84 dB |
| Frequency response (+/- 3 dB) | 150 Hz-20 kHz |
| Nominal impedance | 4 Ω |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Cone material | Polypropylene Cone with Rubber Surround |
Electrical Features | |
| Compass-safe distance | 96.5" (245 cm) |
|---|---|
Networking & Connections | |
| Speaker connections | Spade Connectors |
|---|---|
Mounting Dimensions | |
| Mounting diameter clearance | 6.125" (155 mm) |
|---|---|
| Mounting depth clearance | 0.94" (24 mm) |
| Frontal grille protrusion | 0.98" (25 mm) |
