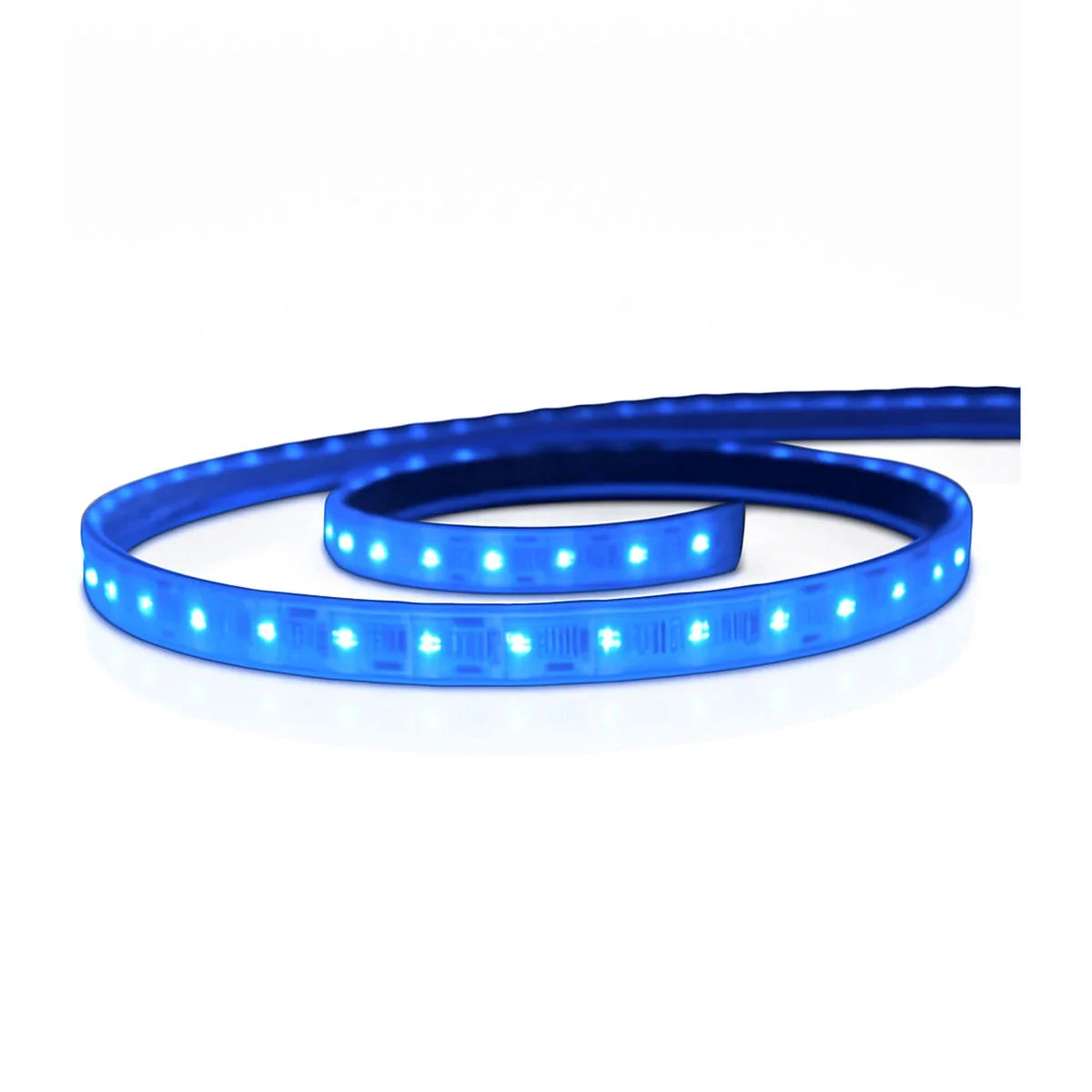

Lumishore® ECLIPSE SL100

$10.00 $49.99

Length 1 meter 2.5 meters 5 meters

Light Color Blue RGB White Blue/White

Overview

FLEXIBLE MARINE STRIP LIGHTING

Ideal for adding subtle decorative effects and indirect lighting to any craft, ECLIPSE strip lights can be seamlessly integrated into gunwales, under furniture, behind ceiling panels and more while remaining mostly hidden.

AVAILABLE IN RGB, BLUE, WHITE, OR BLUE AND WHITE COLORS

1-, 2.5- AND 5-METER LENGTHS

60 LEDS PER METER

CONTROL VIA COMPATIBLE MFD, SMART DEVICE, MOMENTARY SWITCH OR ON/OFF SWITCH1

IP68-RATED FOR DUST AND WATER PROTECTION

3-YEAR WARRANTY

The MFD, smart device and momentary switch control require the ECLIPSE Command Center or direct power via an on/off switch (blue, blue and white, or white models only)

In the Box

Eclipse SL100 strip light (based on selection)
Sealing kit with endcaps
Pack of fixing clips

Specs

General
Warranty	3 years
LED colors	Full spectrum RGB, Blue, Blue and White (5000K), White (5000K)
LED type	RGB: 60 RGB/m Blue: 60 Blue/m Blue and White: 60 Blue/m, 60 White/m White: 60 White/m
Number of lights via direct power	Not limited
Number of lights per Eclipse Comand Center/Expansion module zone	up to 20 meters
Electrical installation	RGB: 4 wire Blue: 2 wire Blue and White: 3 wire White: 2 wire
Operating voltage	10-15 VDC
Current consumption 12 V (max)	0.5 A/m
Average power draw	6 W/m
Construction	Fully encapsulated and potted
Water and dust rating	IP68

Control Options
Direct power via on/off switch	yes (recommended control via ECLIPSE Command Center)
Momentary switch	yes (via ECLIPSE Command Center)
Eclipse Command Center	yes
Compatible MFD	yes (via ECLIPSE Command Center)
Smart device	yes (via ECLIPSE Command Center)

Mounting Dimensions
Dimensions (depth)	0.177" (4.5 mm)
Dimensions (height)	0.425" (10.8 mm)
Mechanical installation	Cut to length and seal cut end before installation with silicone (supplied). Mount with adhesive strips, screw clips (supplied) or stainless steel clips (optional).
