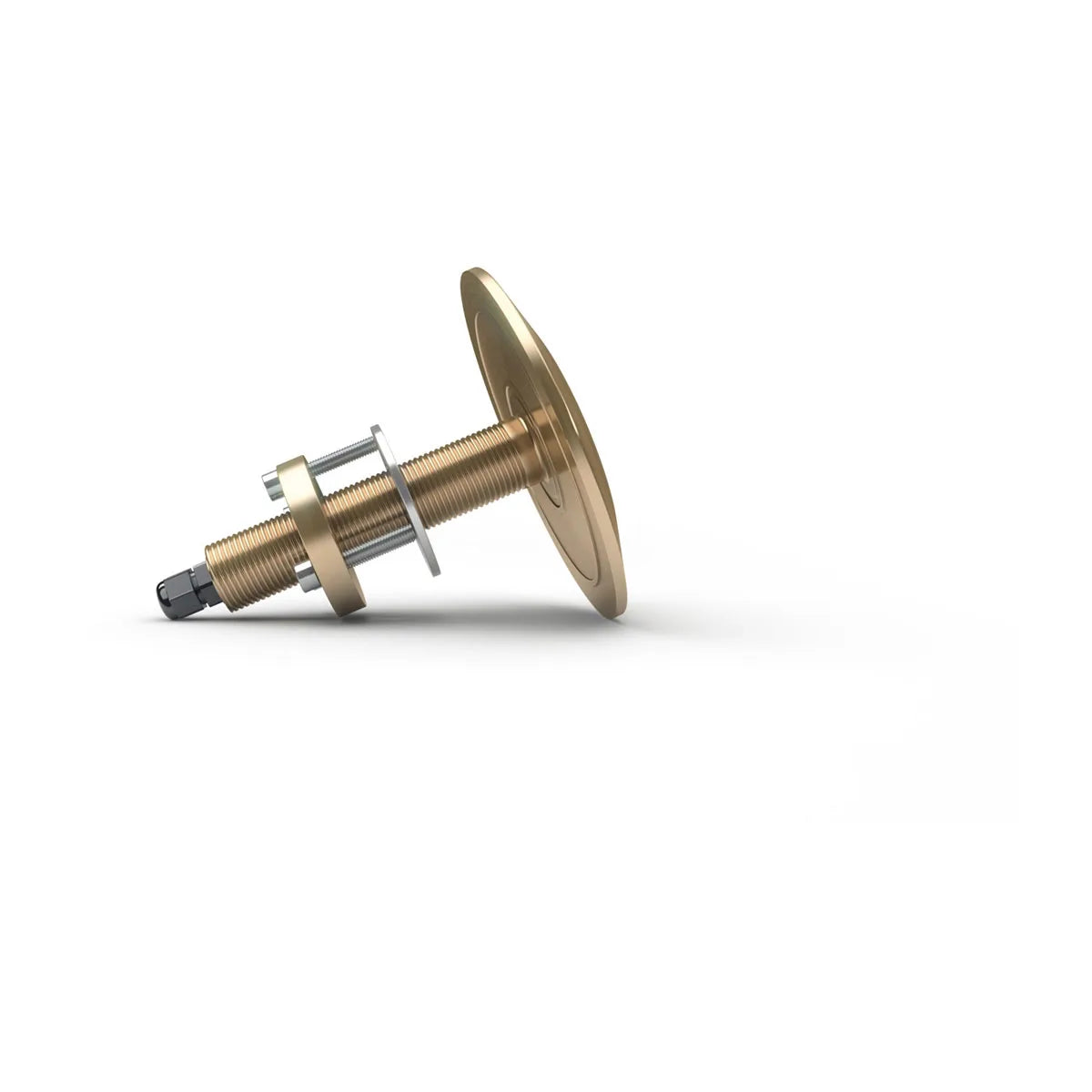

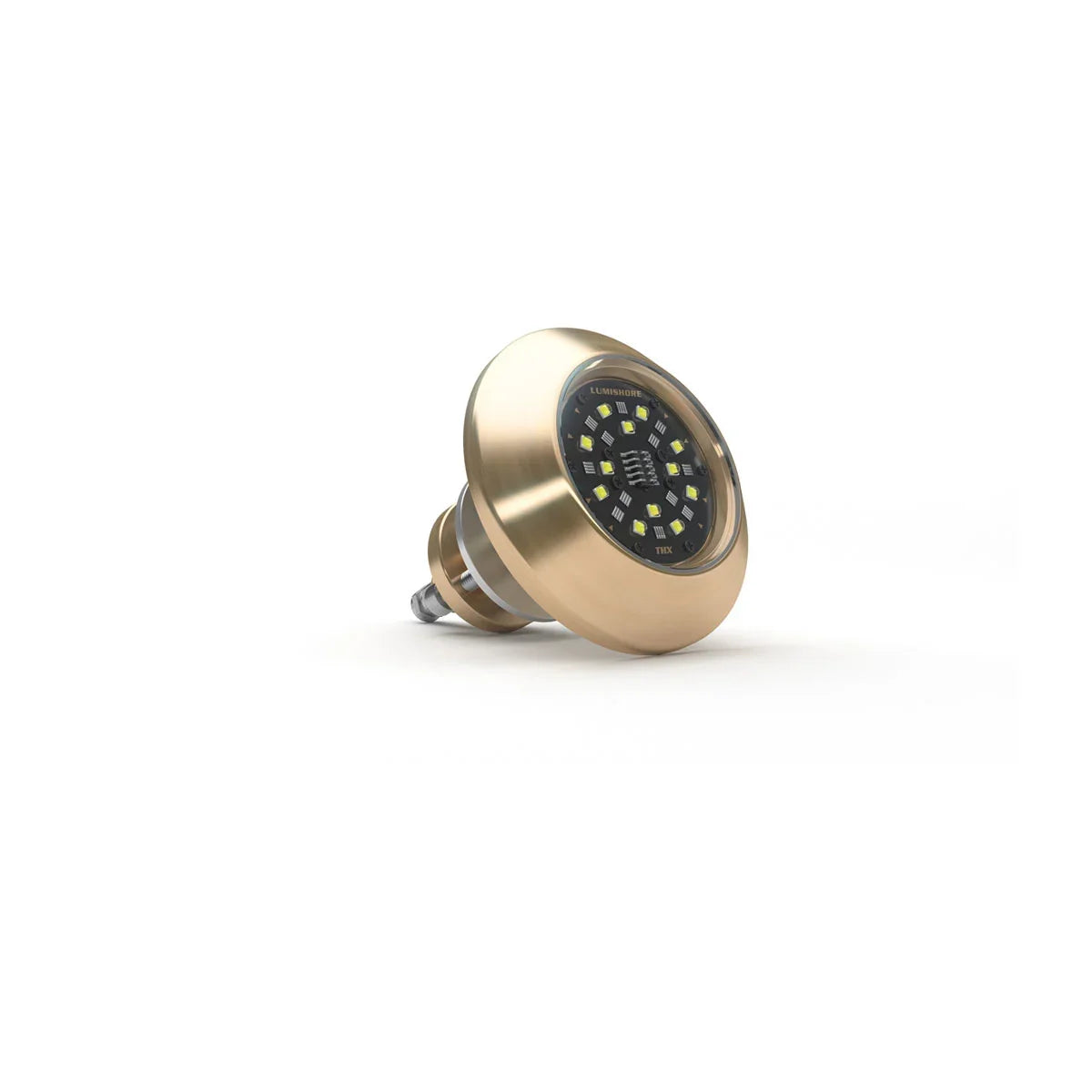

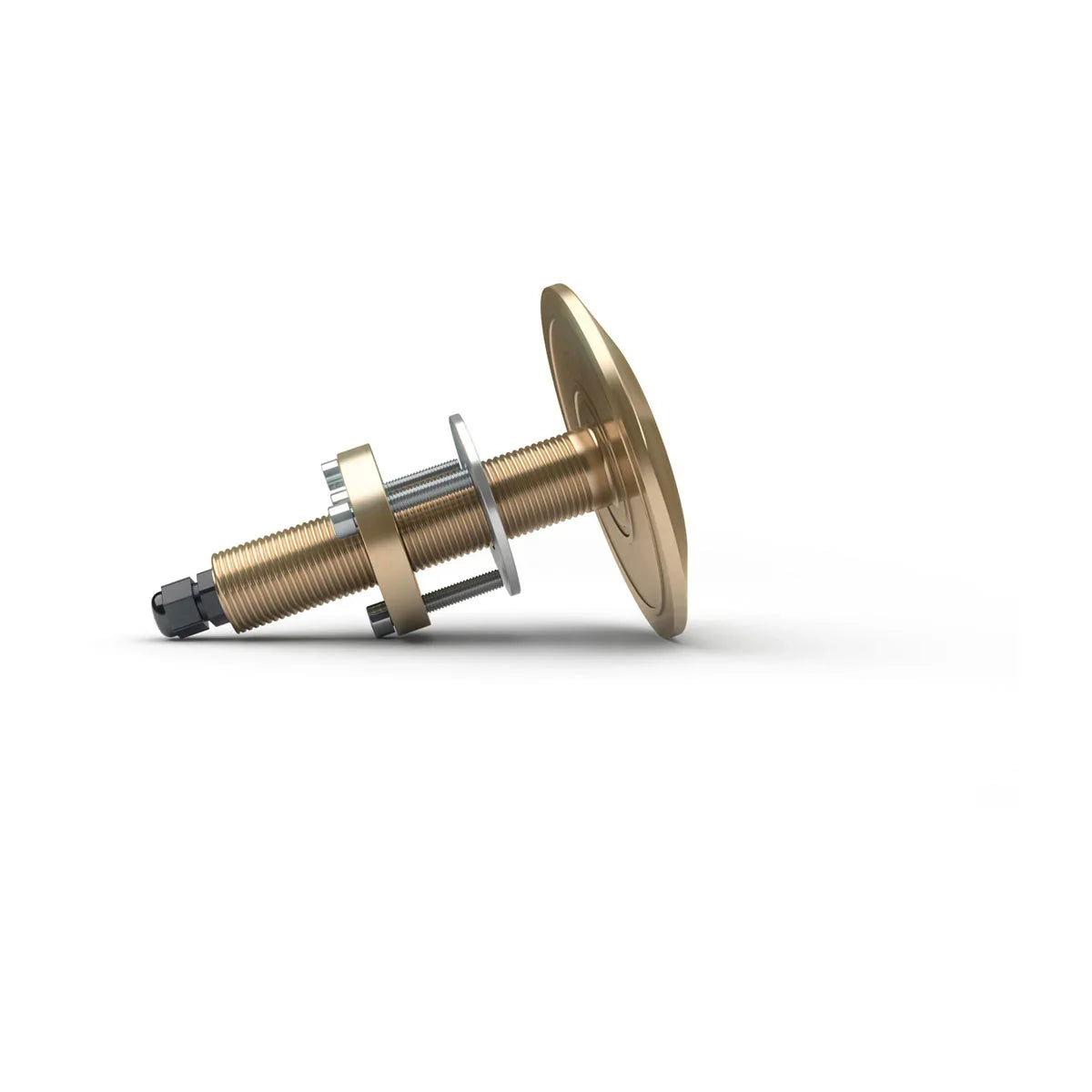

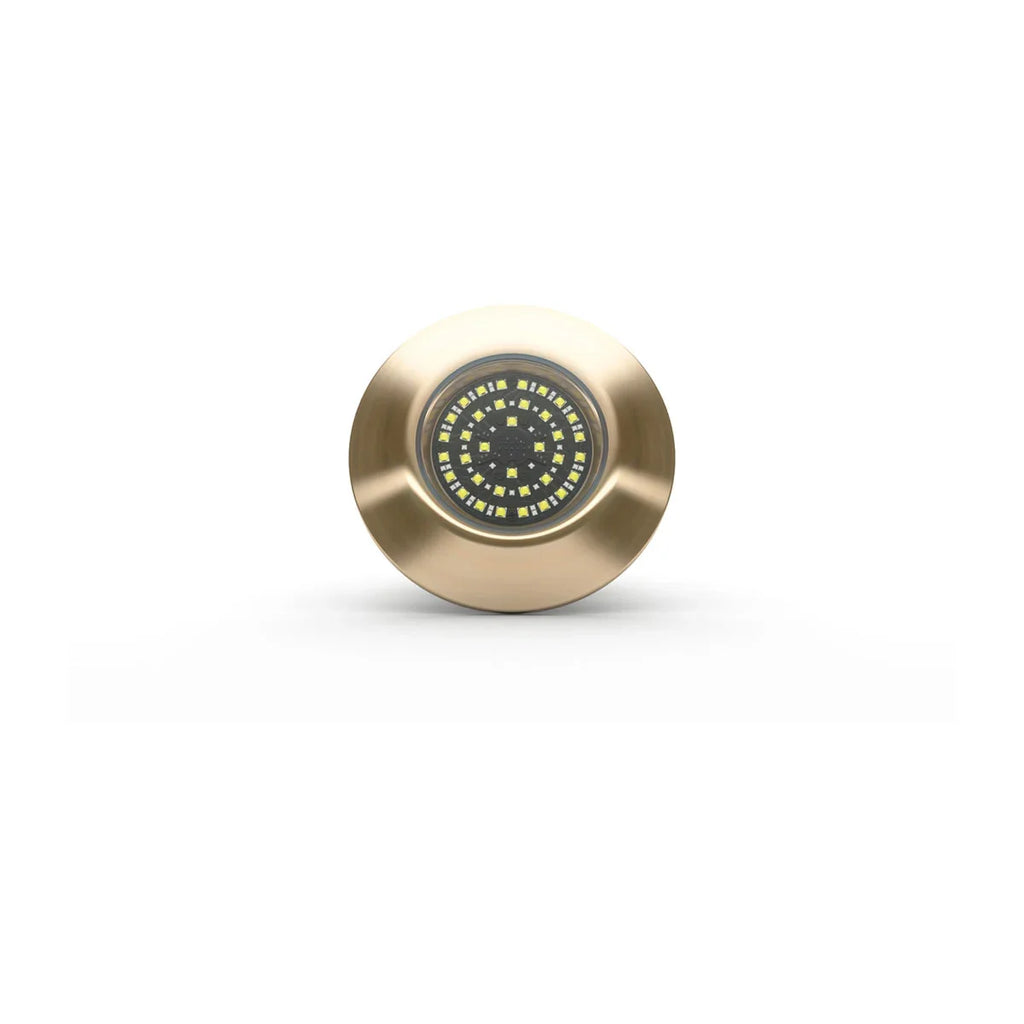

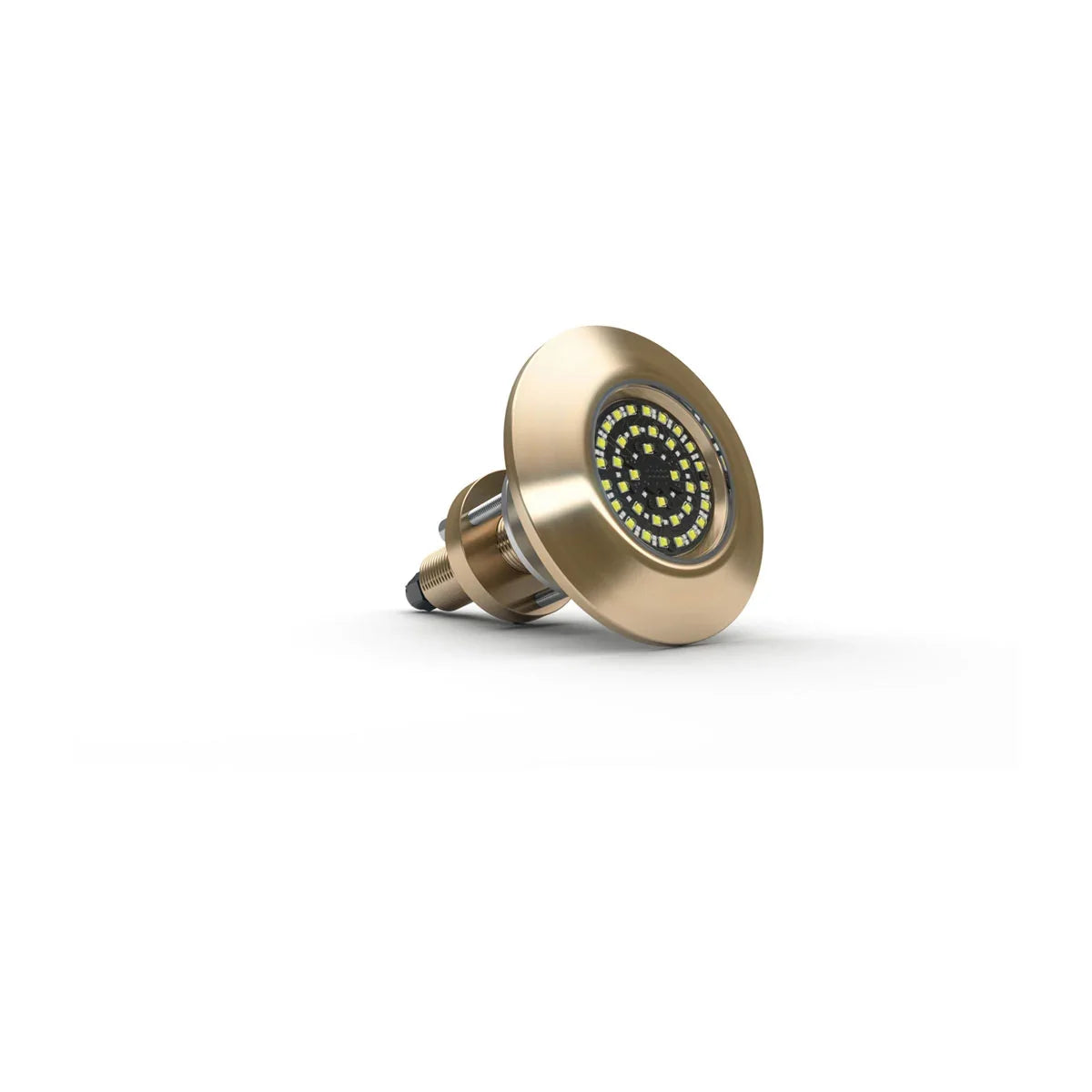

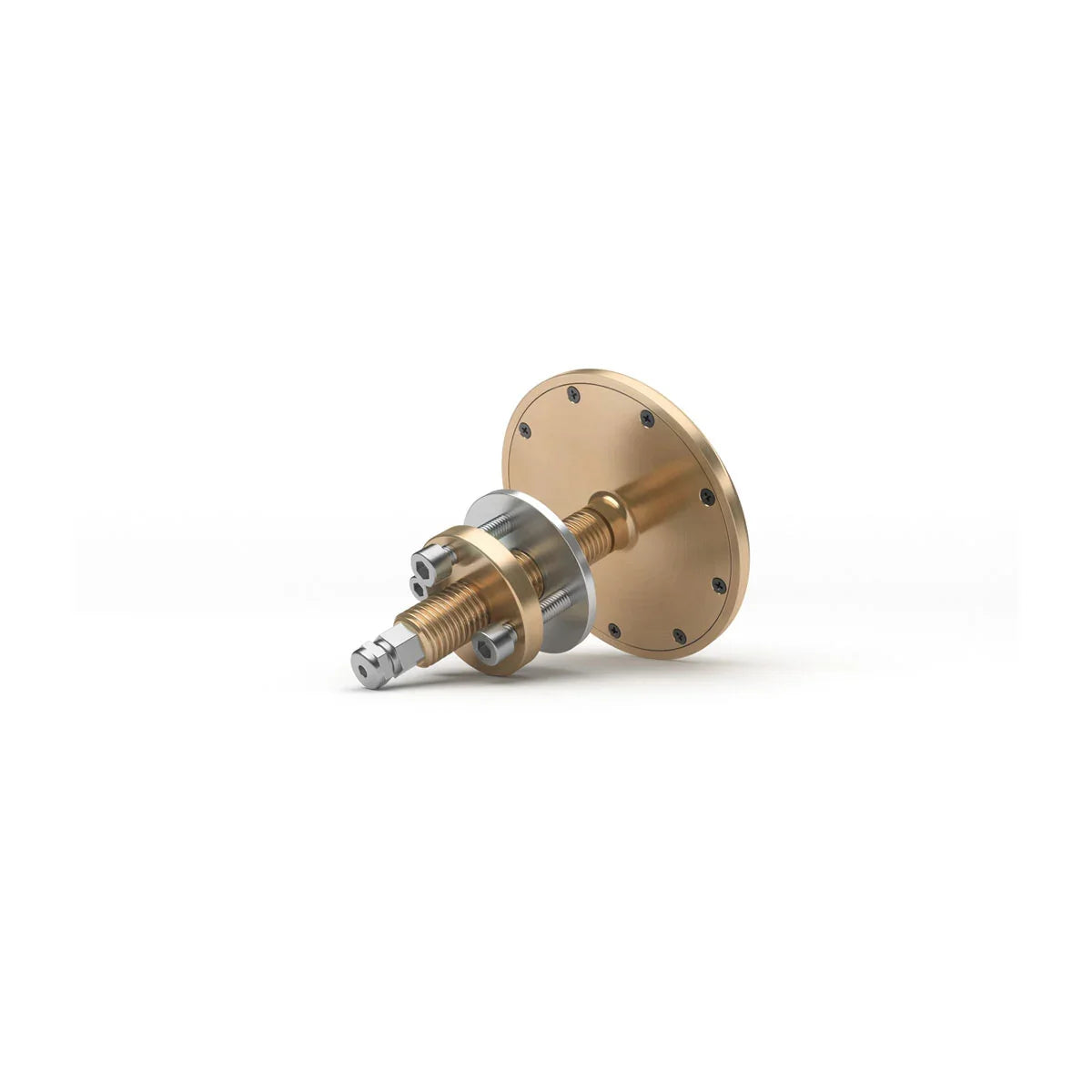

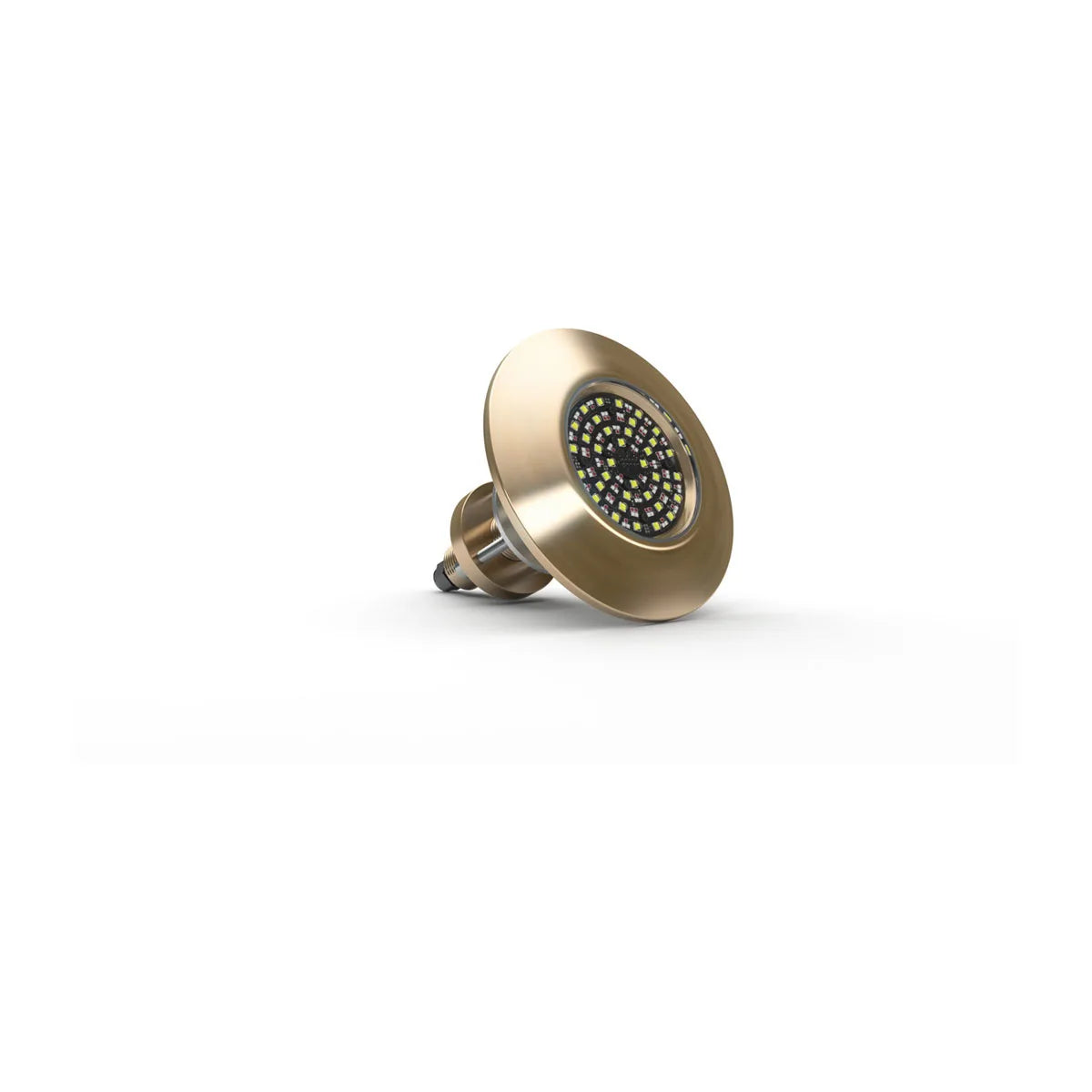

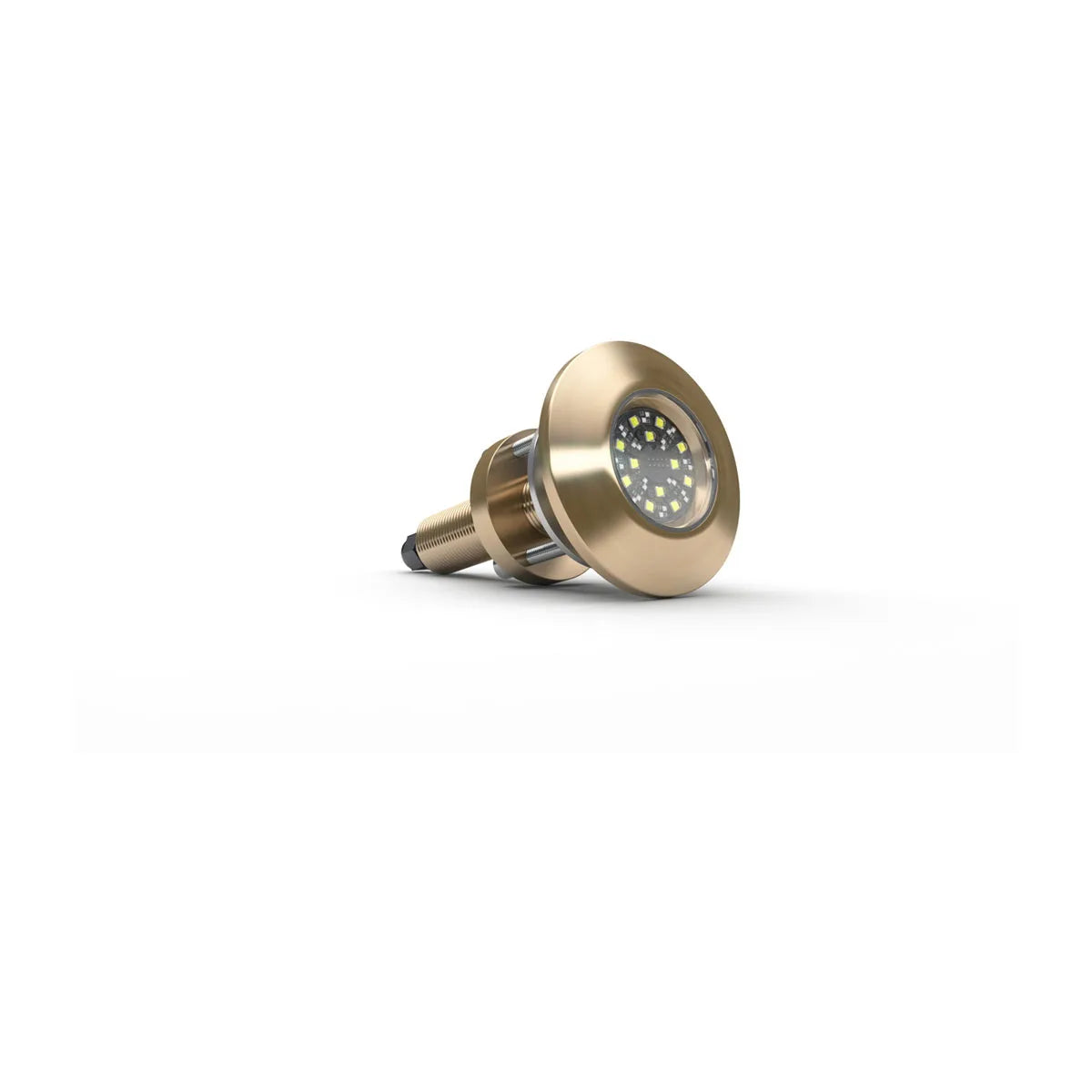

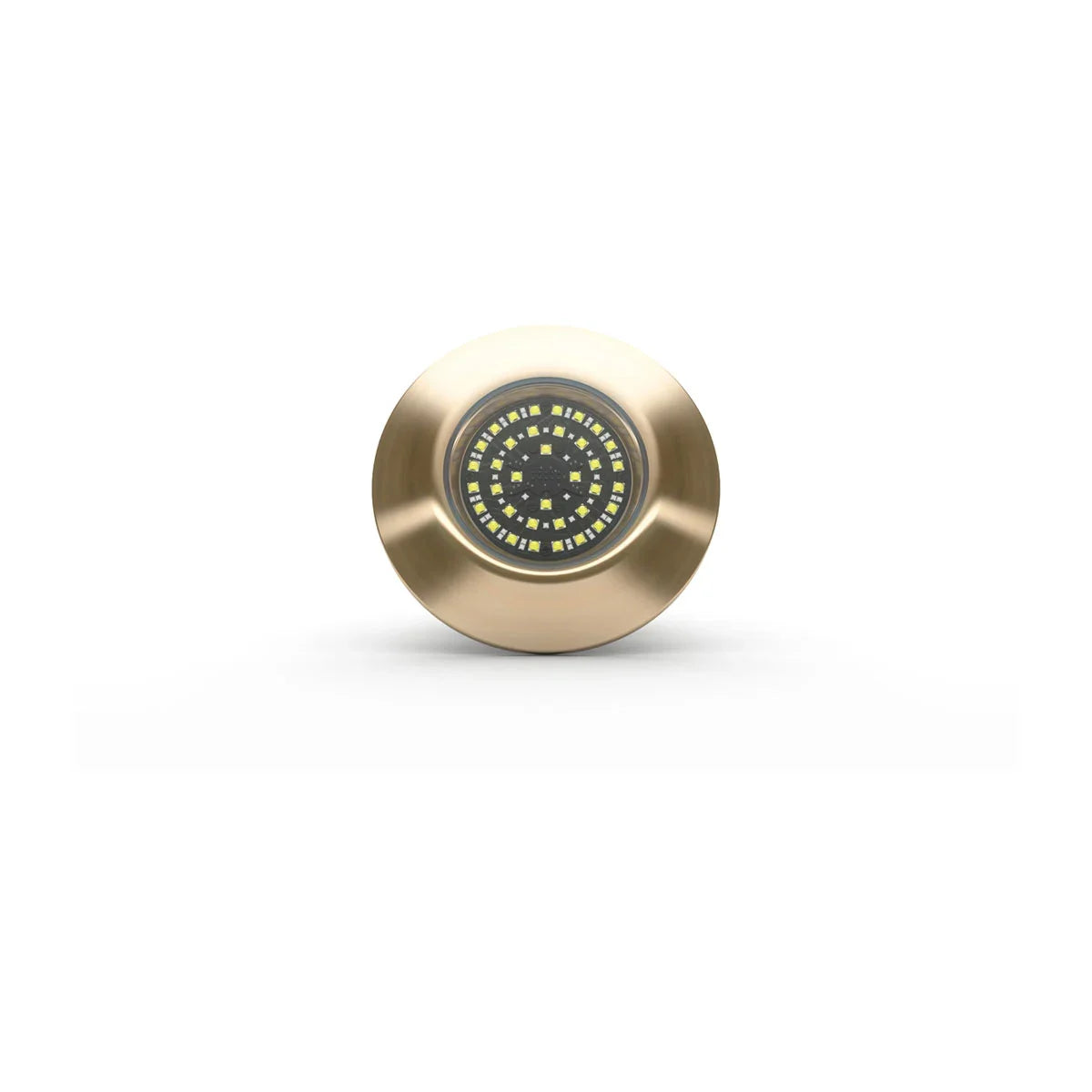

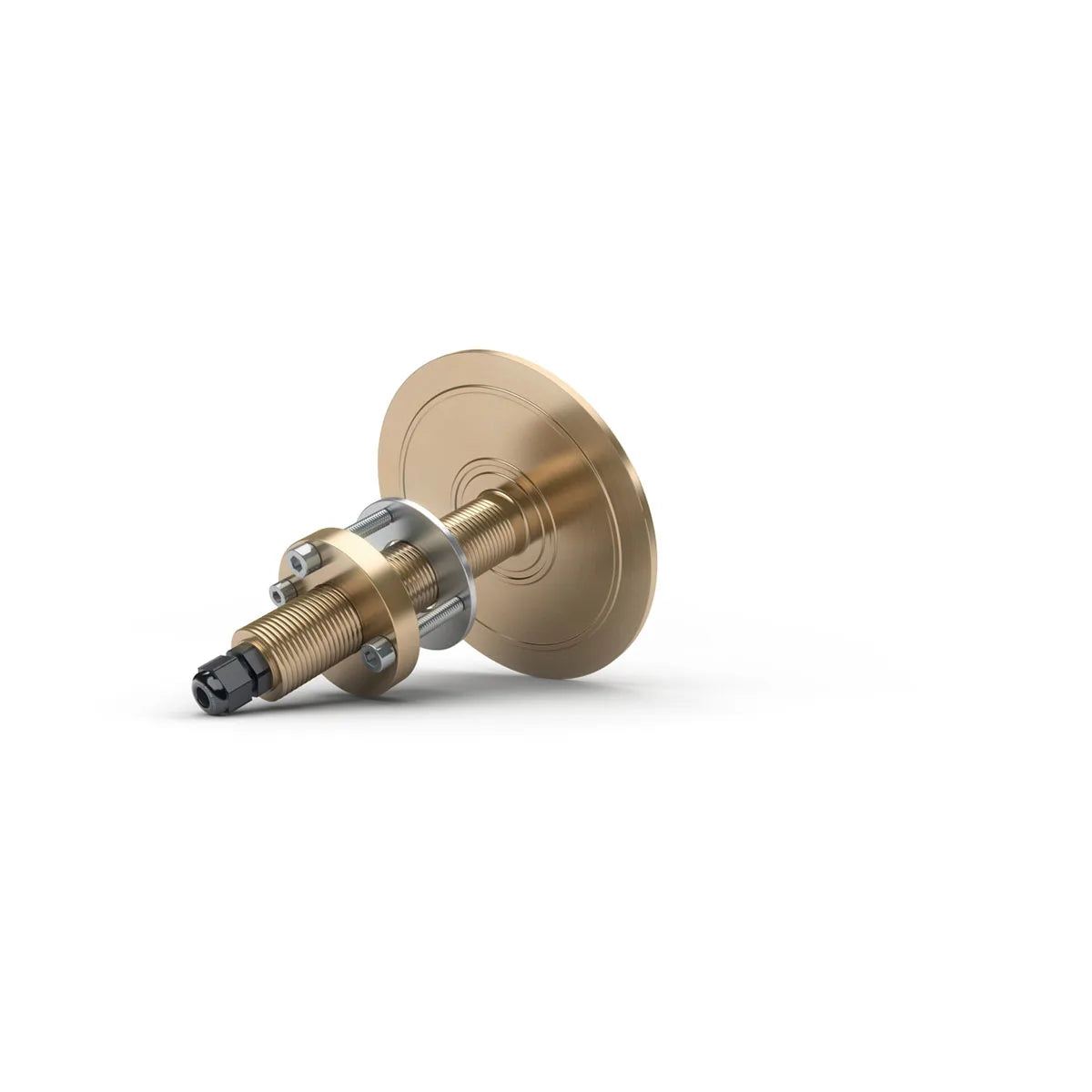

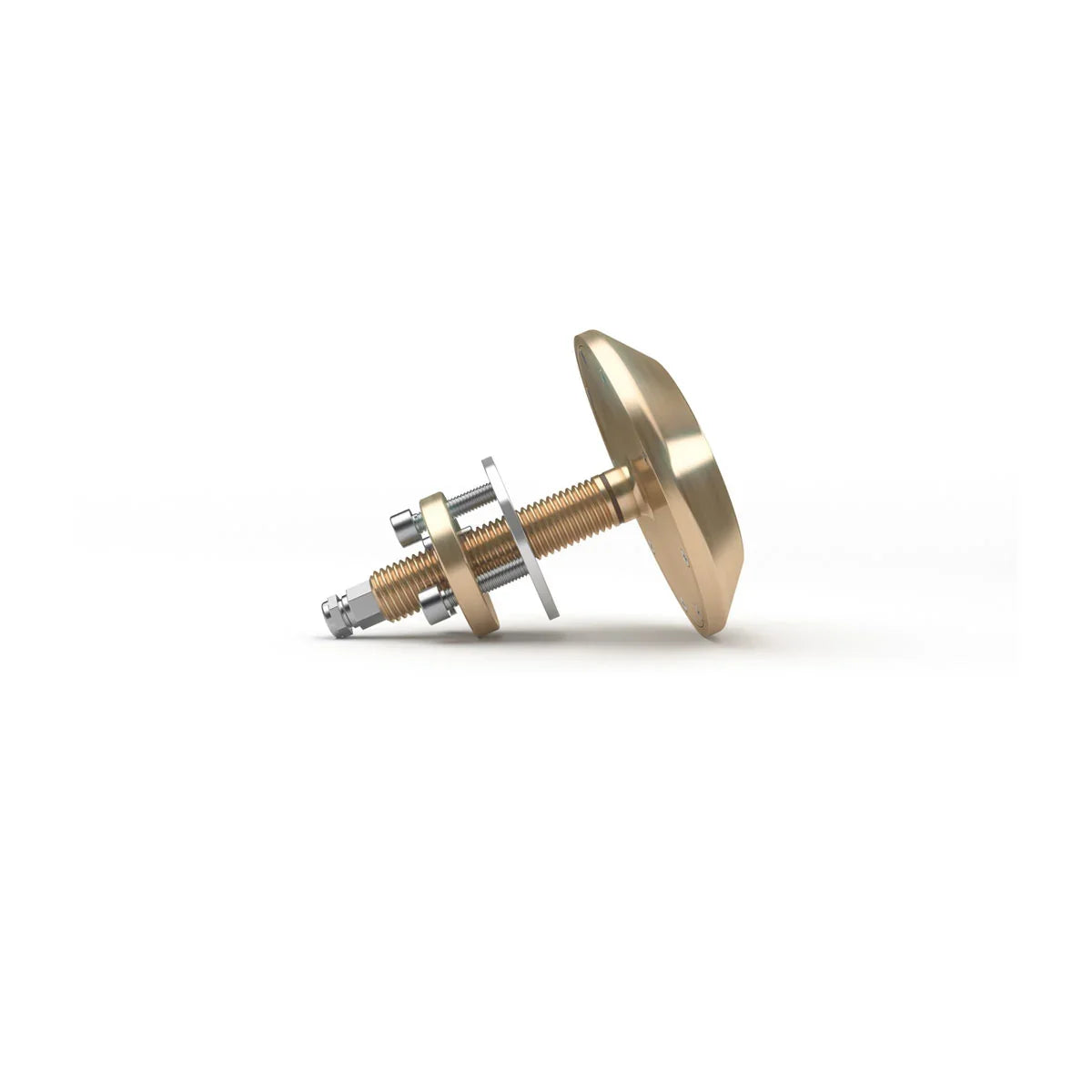

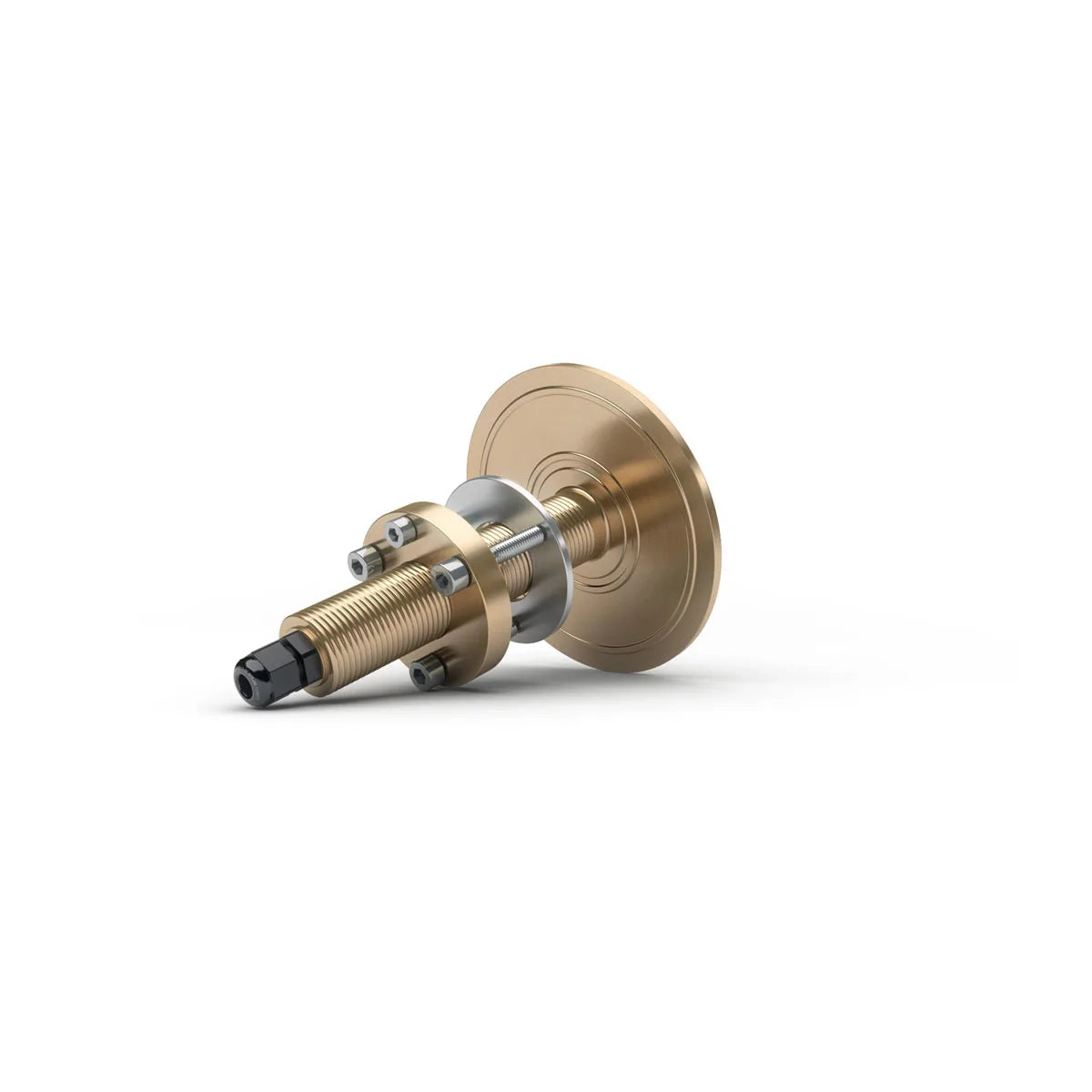

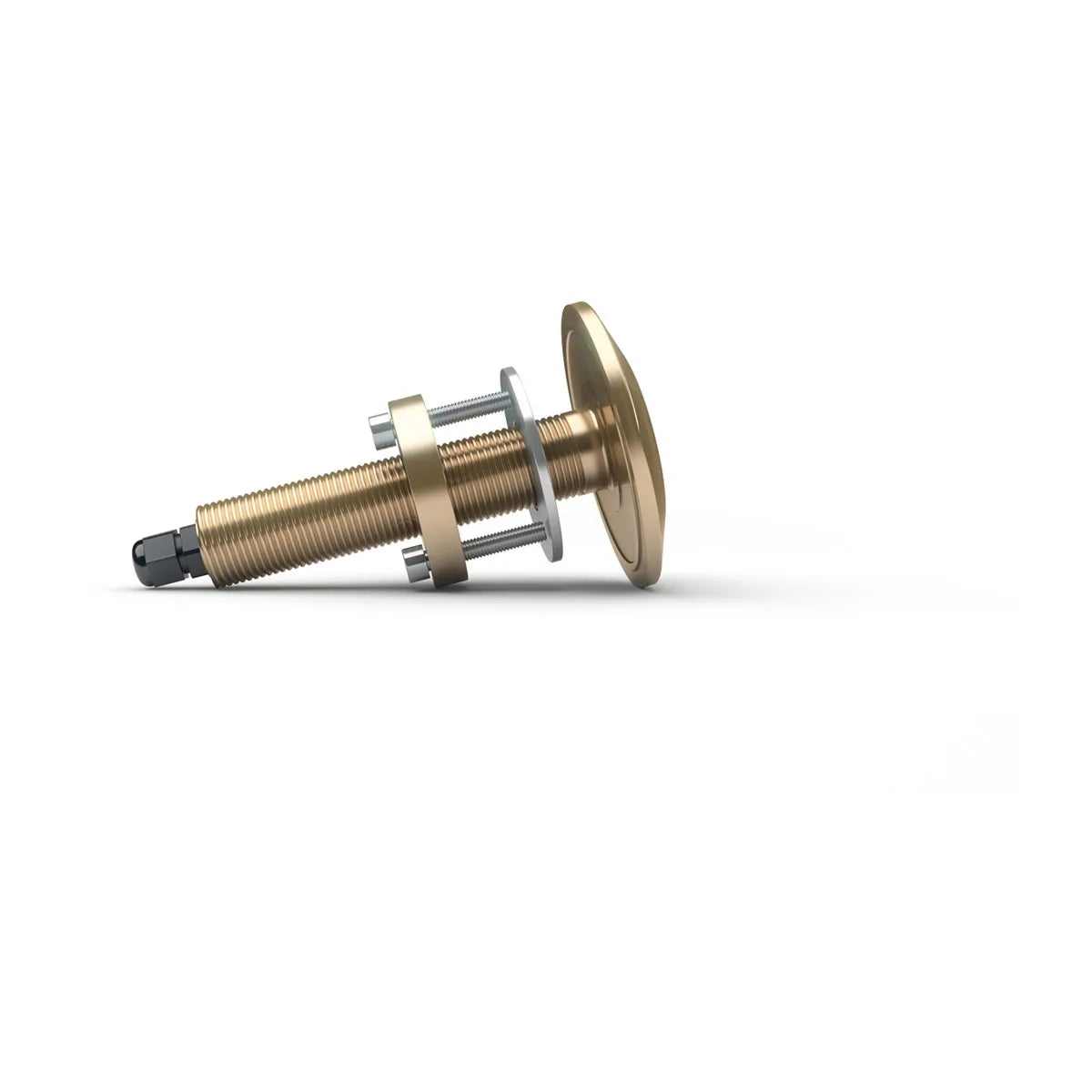

Lumishore® THX804 Underwater Thru-hull
Lumishore® THX804 Underwater Thru-hull
Overview
HIGH-OUTPUT, ULTRAWIDE UNDERWATER LIGHTING
Illuminate the water with these thru-hull LED lights engineered with a 110-degree ultrawide beam that creates a dramatic halo effect. With a flush-fit, low-profile design and marine-grade bronze housing, these lights deliver durable performance for transom or side mounting. Choose from the available colors to suit your vessel.
FULL-COLOR, DUAL-COLOR AND SINGLE-COLOR OPTIONS
6,100–20,000 FIXTURE LUMENS
MARINE-GRADE CONSTRUCTION
ULTRAWIDE 110-DEGREE BEAM ANGLE
IP68-RATED FOR DUST AND WATER PROTECTION
3-YEAR WARRANTY
In the Box
- THX804 light with fixings
- THX804 LED driver
Specs
General | |
| Warranty | 3 years |
|---|---|
| LED colors | White (6500K) + Full spectrum RGB Dual Color: Blue and White (6500K) |
| LED type | RGB: 32 x 3 W Red/24 x 3 W Green/24 x 3 W Blue/24 x 10 W White Blue and White: 48 x 3 W Blue/36 x 10 W White |
| Fixture lumens | RGB: 12,000 Blue and White: 13,500 |
| Beam angle | 110° |
| Electrical installation | RGB: Plug and Play (data), simple 2 wire connection (power) Blue and White: Plug and Play |
| Operating voltage | 12 V/24 V |
| Operating voltage range | 10.5-31 VDC |
| Current consumption 12 V (max) | 8.8 A |
| Current consumption 24 V (max) | 4.4 A |
| Average power draw | 106 W |
| Construction | Marine bronze body with Borosilicate glass lens |
| Water and dust rating | IP68 |
Control Options | |
| Momentary switch | RGB: yes (via EOS-LUX Command Center) Blue and White: yes (via SUPRA Hub or via SUPRA Bridge with SUPRA Hub) |
|---|---|
| EOS-LUX Command Center | RGB: yes |
| SUPRA Bridge | Blue and White: yes |
| SUPRA i-Connect Hub | Blue and White: yes |
| Hub required | SUPRA only |
| Compatible MFD | RGB: yes (via EOS-LUX Command Center) Blue and White: yes (via SUPRA Bridge with SUPRA Hub) |
| Smart device | RGB: yes (via EOS-LUX Command Center) |
| EOS-LUX-SUPRA display | RGB: yes (via EOS-LUX Command Center) Blue and White: yes (via SUPRA Bridge with SUPRA Hub) |
Lighting Functionality | |
| Applicable controllers/hubs | SUPRA i-Connect Hub/EOS i-Connect Hub/SUPRA Bridge/EOS-LUX Command Center |
|---|---|
| External DMX/RDM | EOS only |
Mounting Dimensions | |
| Mounting diameter clearance (with bezel) | 4.33" (110 mm) |
|---|---|
| Mounting depth clearance | 5.51" (140 mm) |
| Frontal protrusion (profile) | 0.7" (18 mm) |
| Mounting hole | 1.06" (27 mm) |
| Dimensions (width) | 4.33" (110 mm) |
| Dimensions (depth) | 6.2" (158 mm) |
| Dimensions (height) | 4.33" (110 mm) |
| Mechanical installation | Bonding required on non-conductive hulls (via connection on housing). Hull isolation sleeves must be used on conductive hull materials, including wood and carbon fiber (kit sold separately). |
