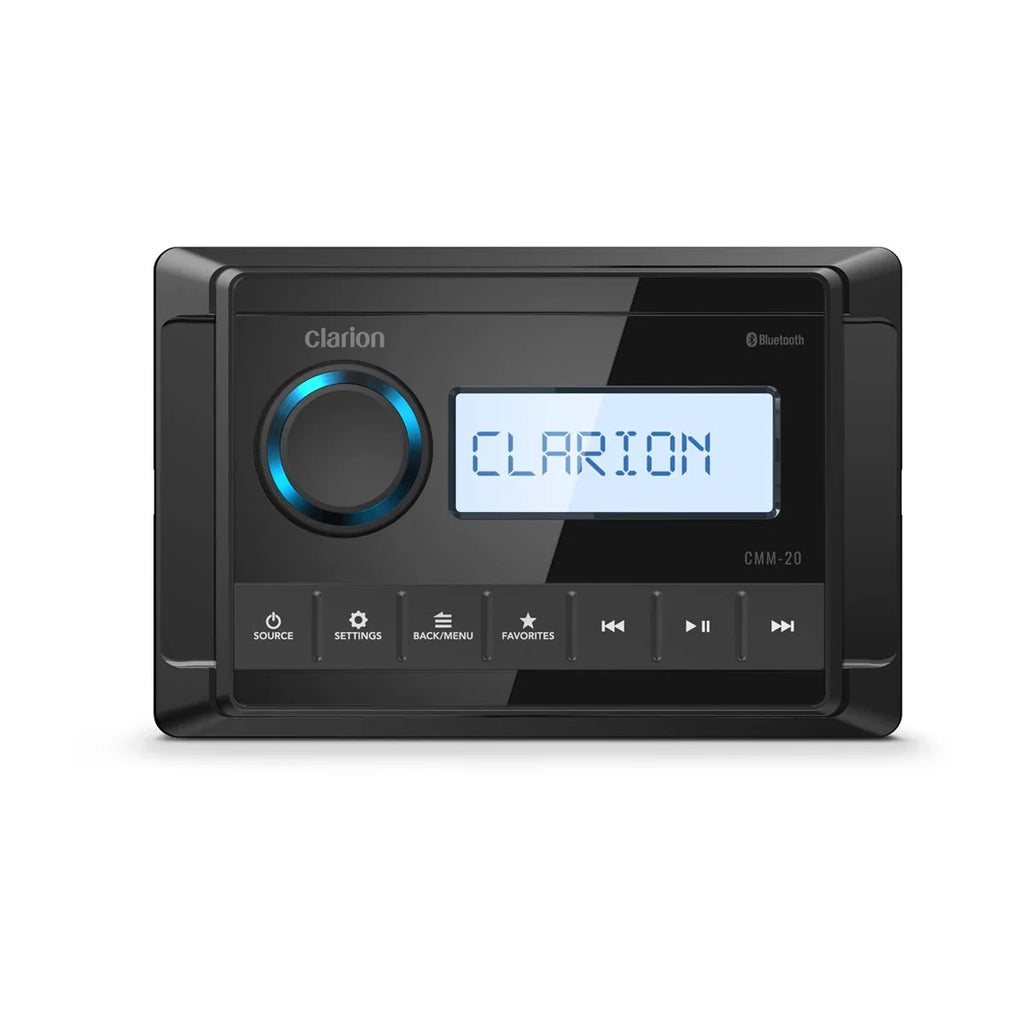

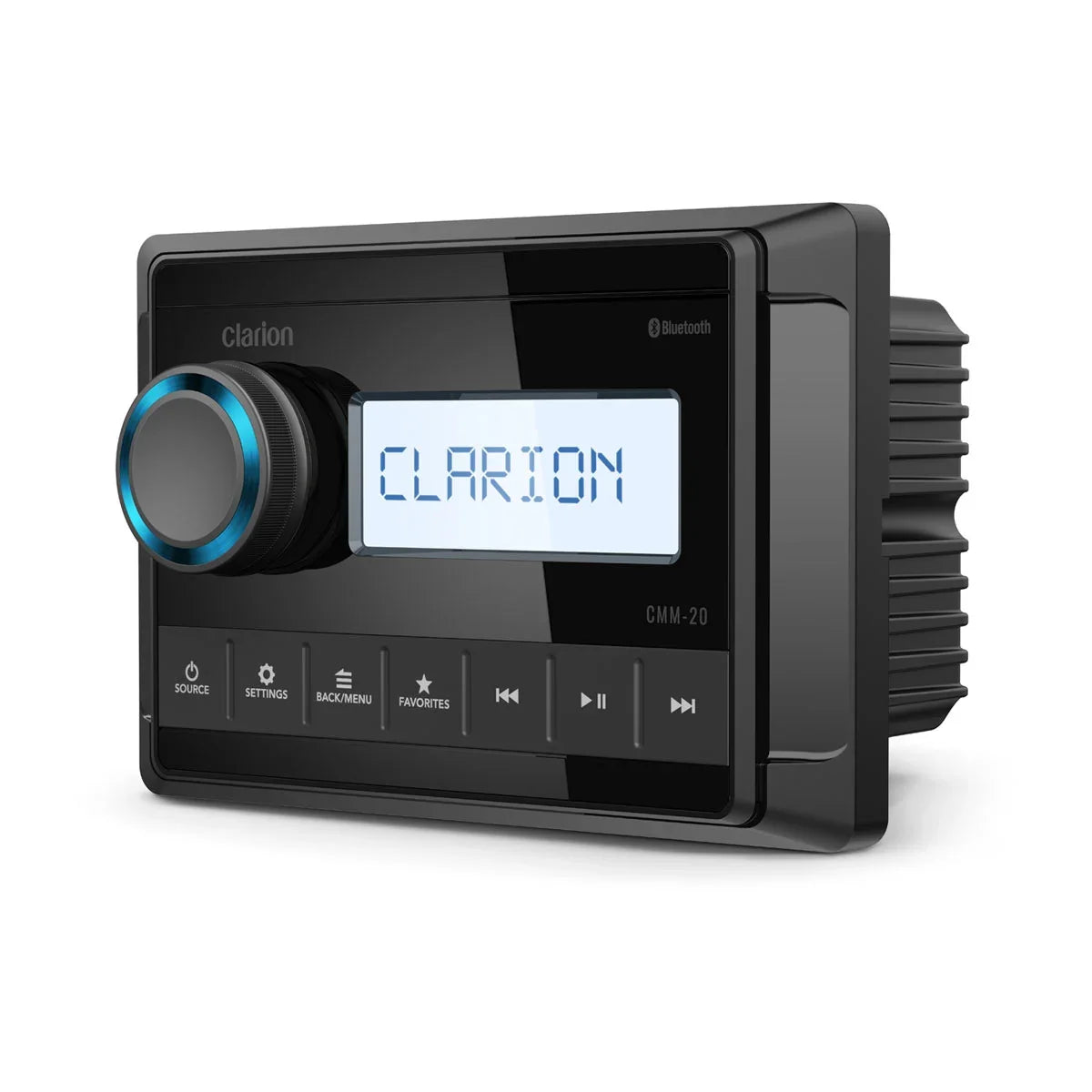

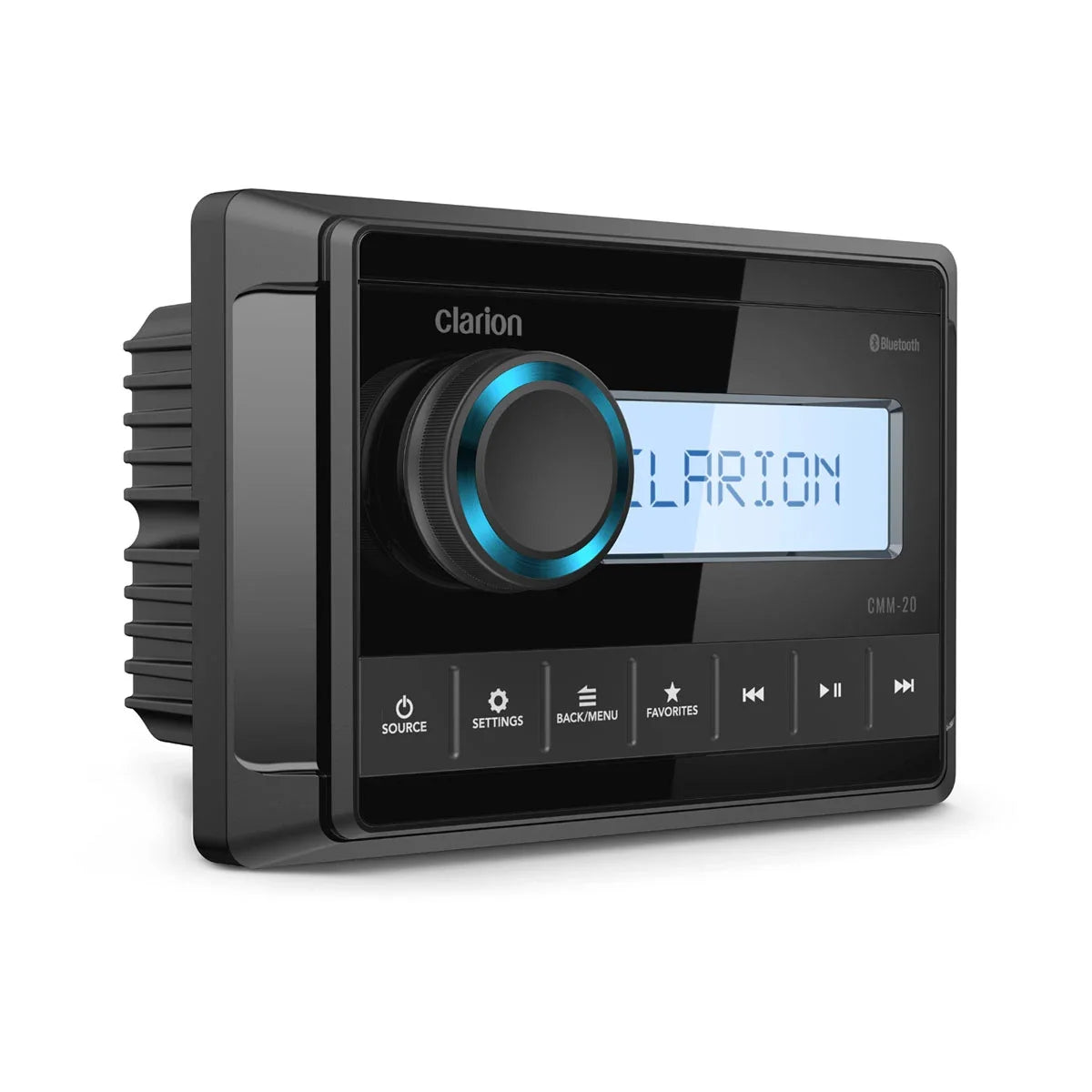

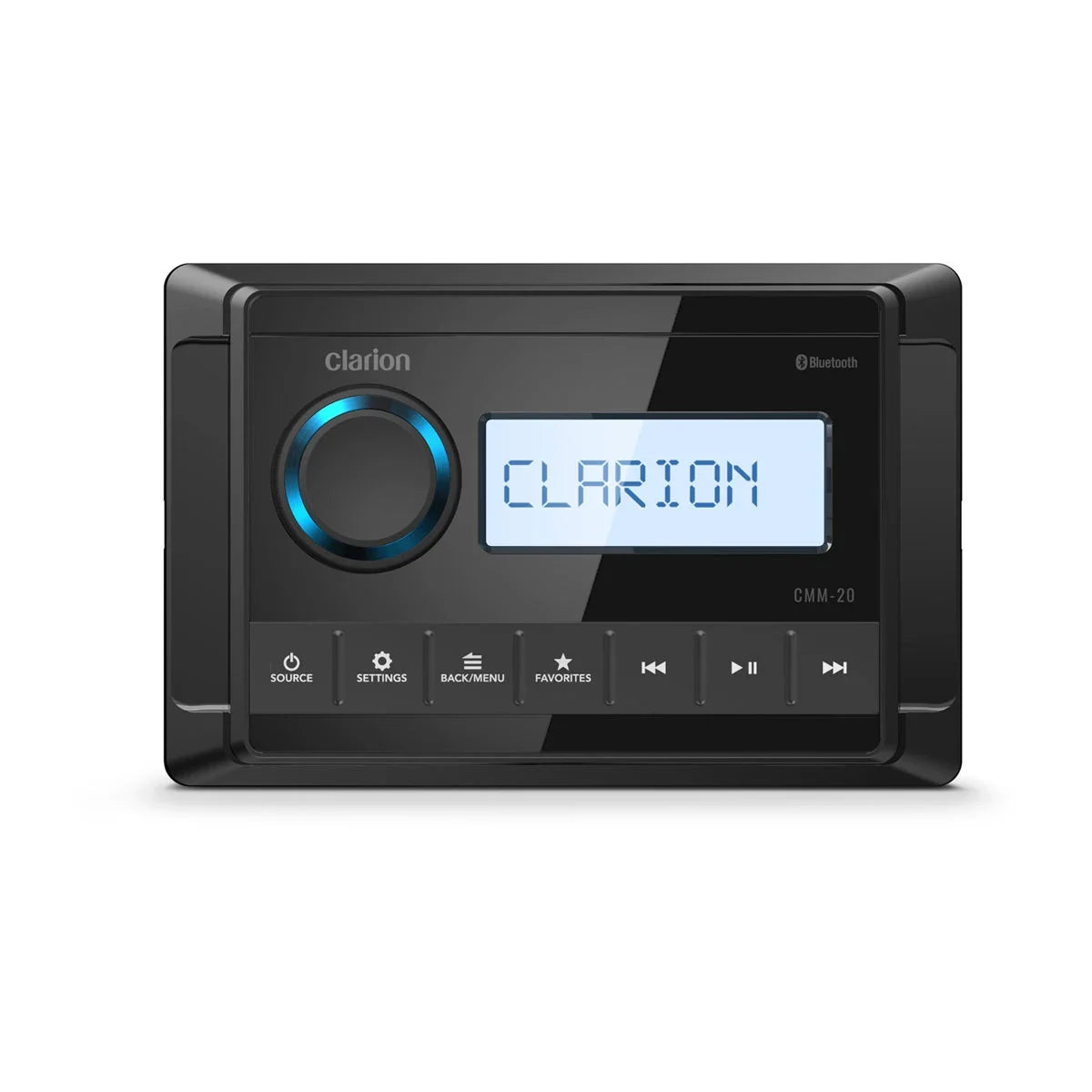

Clarion® Marine Head Unit with LCD (CMM-20)
Clarion® Marine Head Unit with LCD (CMM-20)
Overview
TOUGH BUILD. SMOOTH SOUND.
CMM-20 is a high-performance, dual-zone source unit with built-in power and versatile audio features designed for life on the water.
MUSIC STREAMING VIA BLUETOOTH® TECHNOLOGY
2.3-INCH LCD DISPLAY
2-ZONE SOUND CONTROLLER
GLOBAL AM/FM AND WEATHER BAND TUNER
BUILT-IN AMPLIFIER
IP66-RATED WATER-RESISTANT DESIGN
WHAT YOU'LL LOVE
BLUETOOTH STREAMING
Start streaming from your compatible smartphone or any device with BLUETOOTH technology.
CONNECTIVITY OPTIONS
This digital receiver has one stereo pair of auxiliary inputs as well as USB for charging and file playback.
SHAPE YOUR SOUND
Customize your sound with bass and treble controls plus a built-in amp. Or you can select from 4 equalizer presets. You can also adjust sound in different parts of the boat with 2-zone control.
TUNE IN TO RADIO
Play local radio stations with a built-in AM/FM tuner, or get the latest forecast from the weather band.
RUGGED AND READY
This source unit is IP66- rated, so you can move confidently out on the water.
In the Box
- One marine source unit with trim ring (attached)
- Power and speaker connections wire harness
- One mounting gasket
- One mounting template
- Four mounting screws
Specs
General | |
| Warranty | 1 year |
|---|---|
| Physical dimensions (Height) | 3.90" (99 mm) |
| Physical dimensions (Width) | 5.95" (151 mm) |
| Physical dimensions (Depth) | 3.15" (80 mm) |
| Control Surface Dust/Water Rating (when properly installed) | IP66 |
| Operating temperature range | -4° F to +140° F (-20° C to +60° C) |
| Current draw (max) | 15 A |
| Multi-language interface | English |
Audio | |
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm <1%> | 25 W x 4 |
|---|---|
Electrical Features | |
| Power Input | 10 -16 VDC |
|---|---|
Stereo Features | |
| Display size | 2.37" (60 mm) |
|---|---|
| Display type | monochrome,segmented, TFT LCD backlit |
| Optically bonded display | yes |
| Built-in amplifier | Class AB (4 Ω) |
| Multi-Zone™ technology | yes |
| Bluetooth® wireless technology | yes |
| Software updates | yes |
Sources | |
| Supported sources | Digital AM/FM/NOAA Weather Radio (US only)/BLUETOOTH®/USB audio/iPhone/iPod |
|---|---|
| Supported audio formats (USB) | MP3, WMA, FLAC, WAV |
Networking & Connections | |
| USB 2.0 ports | 1 USB storage device (1 A charging output) |
|---|---|
| AM/FM ports (Motorola antenna connector) | 1 |
| Speaker connections | 4 (2 zones amplified) |
| RCA pre-out (left, right and subwoofer - requires external amplification) | 2 zones (L+R) or Zone 2 as subwoofer |
| Line out (requires external amplification) | 2 (L + R per zone) |
| Subwoofer out (requires external amplification) | Occupies Zone 2 |
| Wireless frequencies/protocols | BLUETOOTH® |
| Bluetooth® wireless range | Up to 35 ft (11 meters) |
