GPS 24xd Receiver and Antenna

Overview

EXPLORE COASTAL WATERS

The GPS 24xd position receiver and antenna gives you precise location with multi-band GNSS and heading accuracy even at slow speeds.

1. <1>

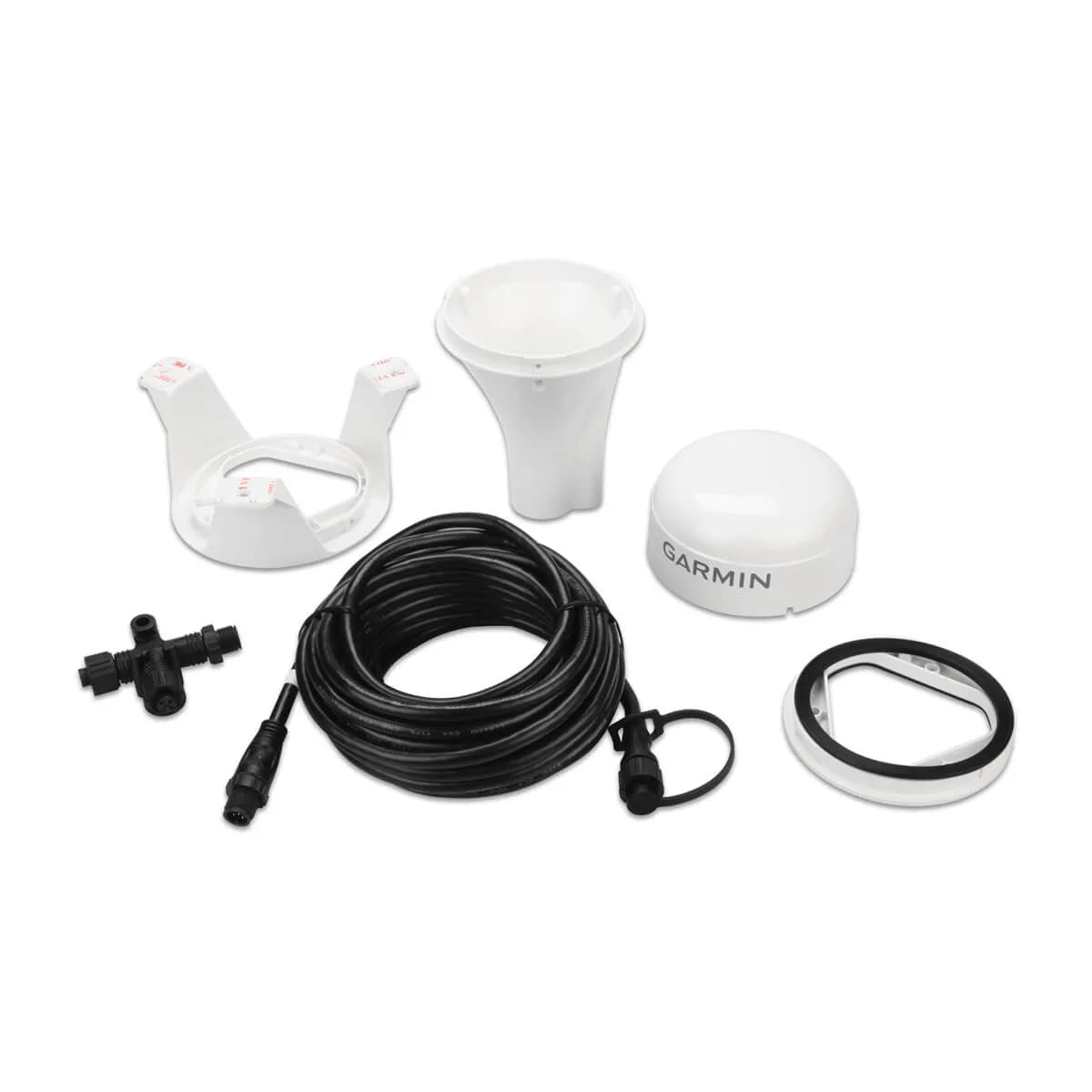

   In the Box

   • GPS 24xd NMEA 2000®
   • Pole mount
   • Surface mount
   • NMEA 2000 backbone/drop cable (6 meters)
   • NMEA 2000 T-connector
   • Documentation

   Specs

   • Dimensions (D x H): 3 19/32" x 1 15/16" (91.6 mm x 49.5 mm)
   • Weight: 7.1 oz (201 g), white; 6.2 oz (176 g), black
   • Cable length: 19 ft 8" (6 m)
   • Temperature range: -22° to 176° F (-30° to 80° C), white; -22° to 149° F (-30° to 65° C), black
   • Case material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
   • Compass-safe distance: 5.9" (150 mm)
   • Power source input: 9-32 Vdc
   • Input current: 150 mA at 12 Vdc
   • NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)
   • Position accuracy, typical marine use: < 1 meter CEP, < 3 meters, 95%
