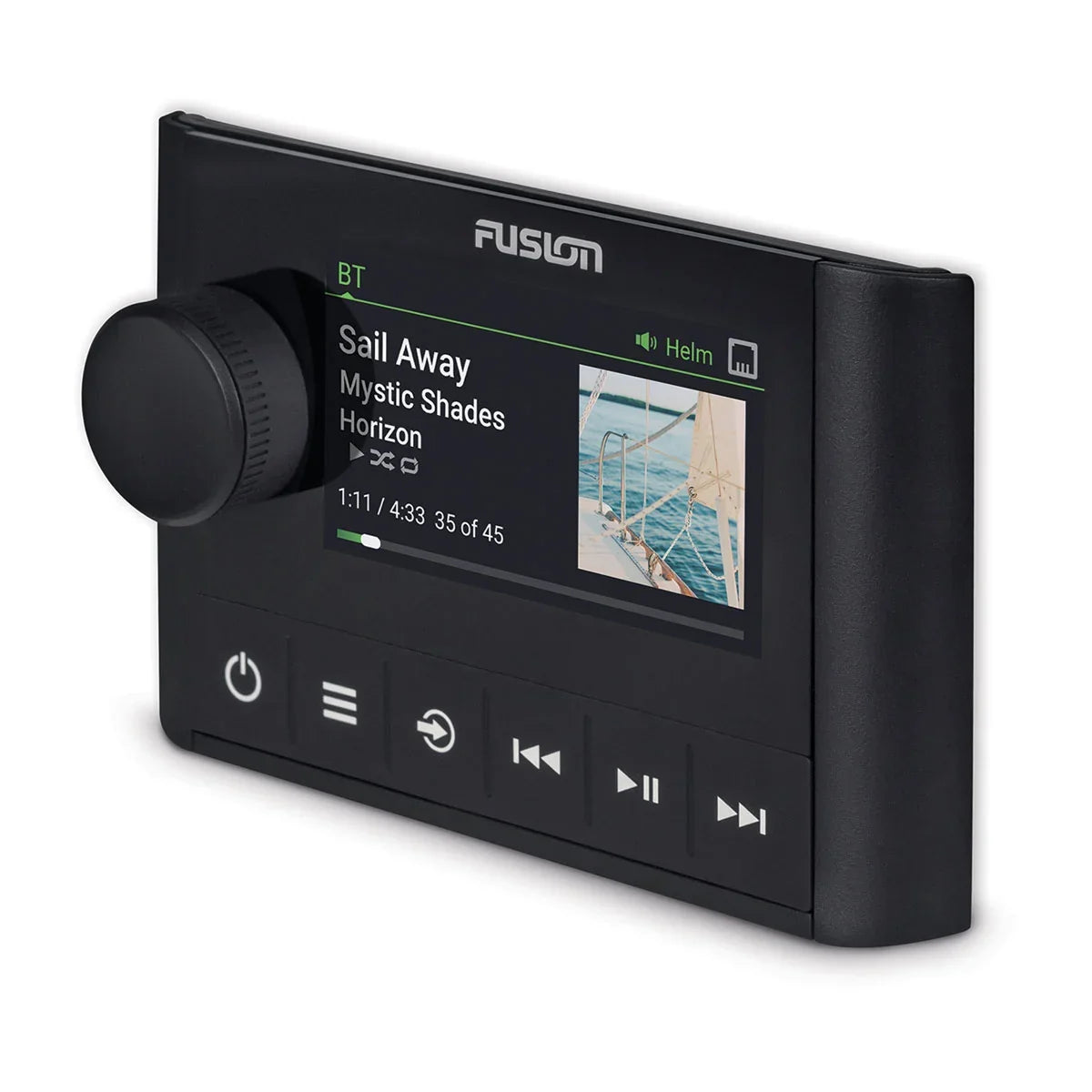

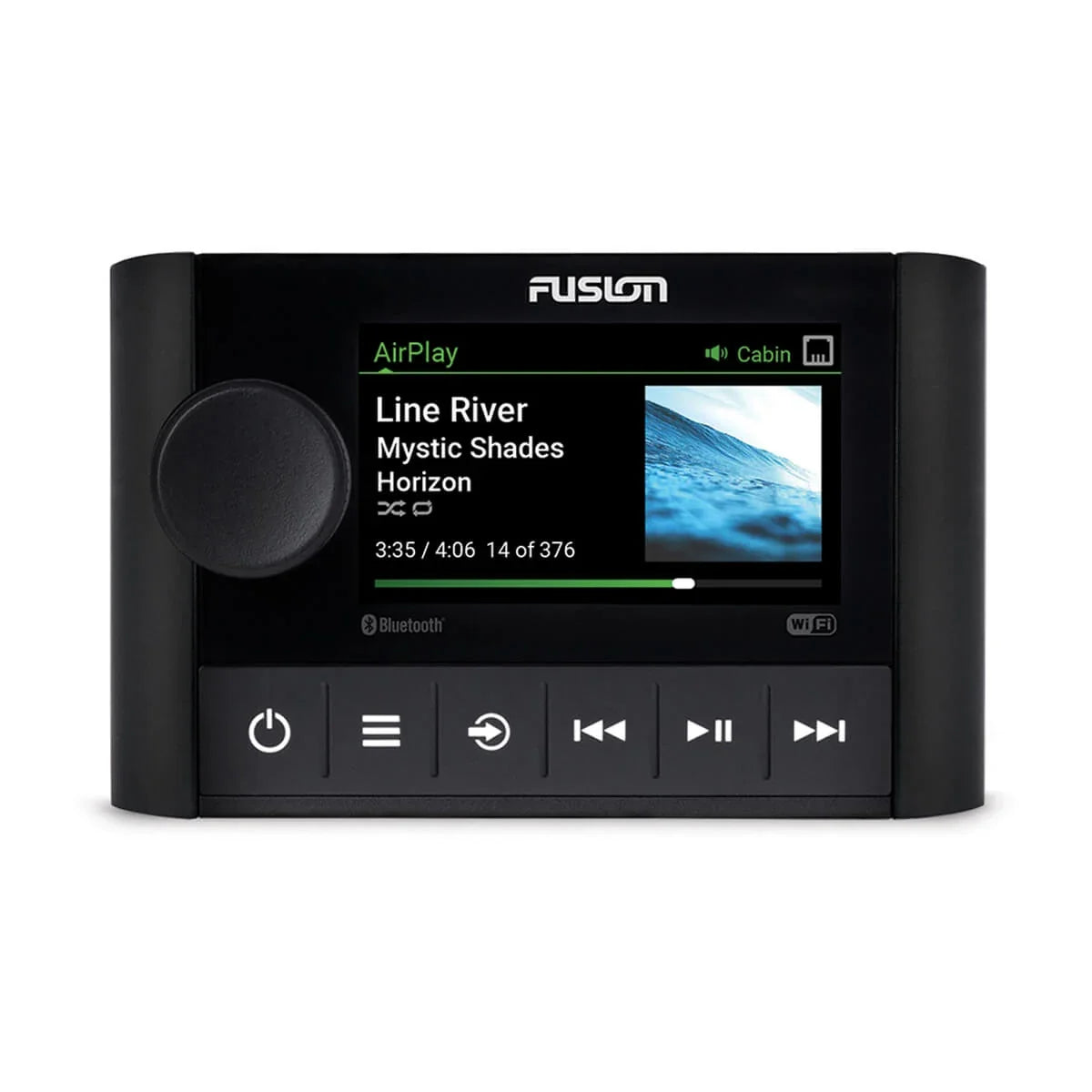

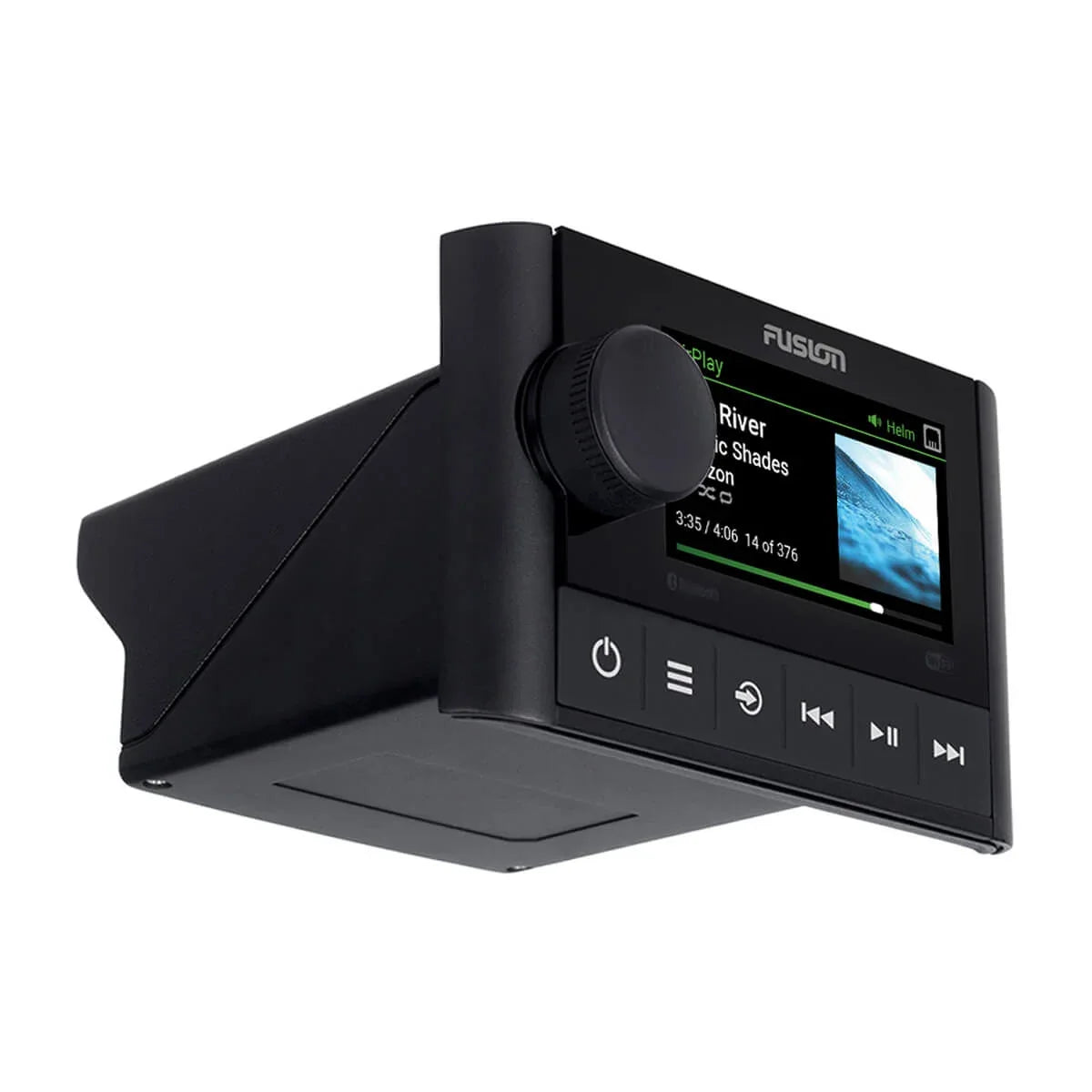

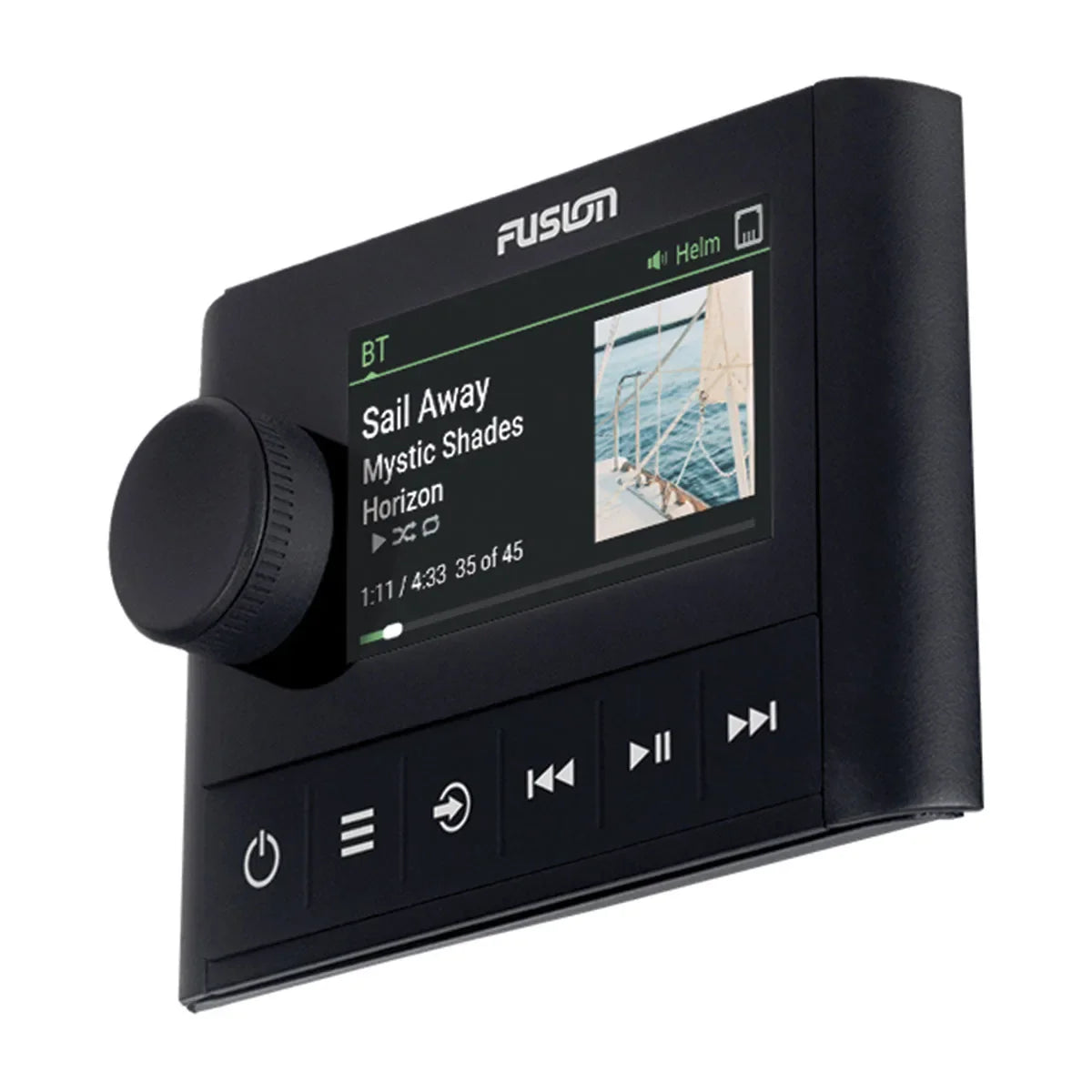

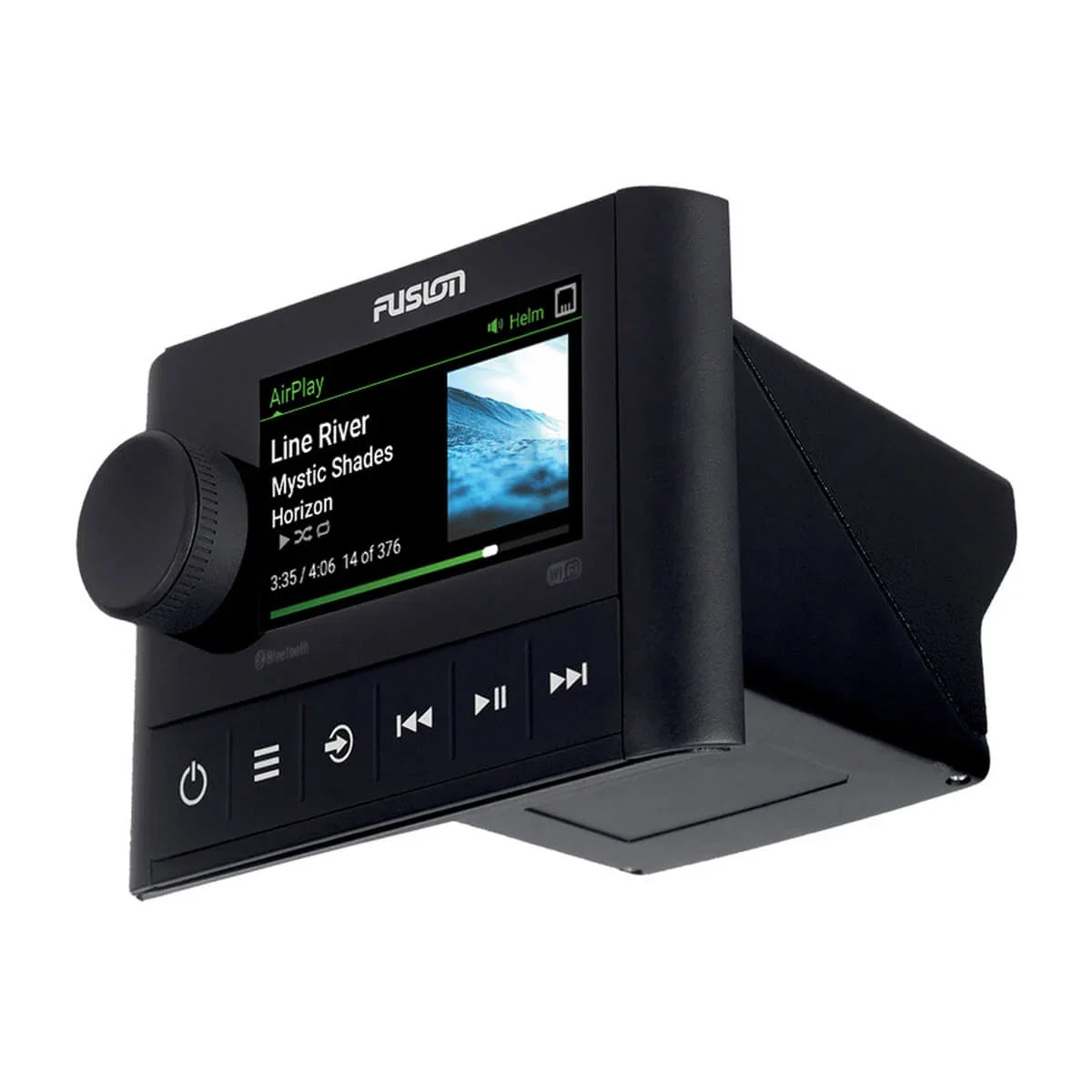

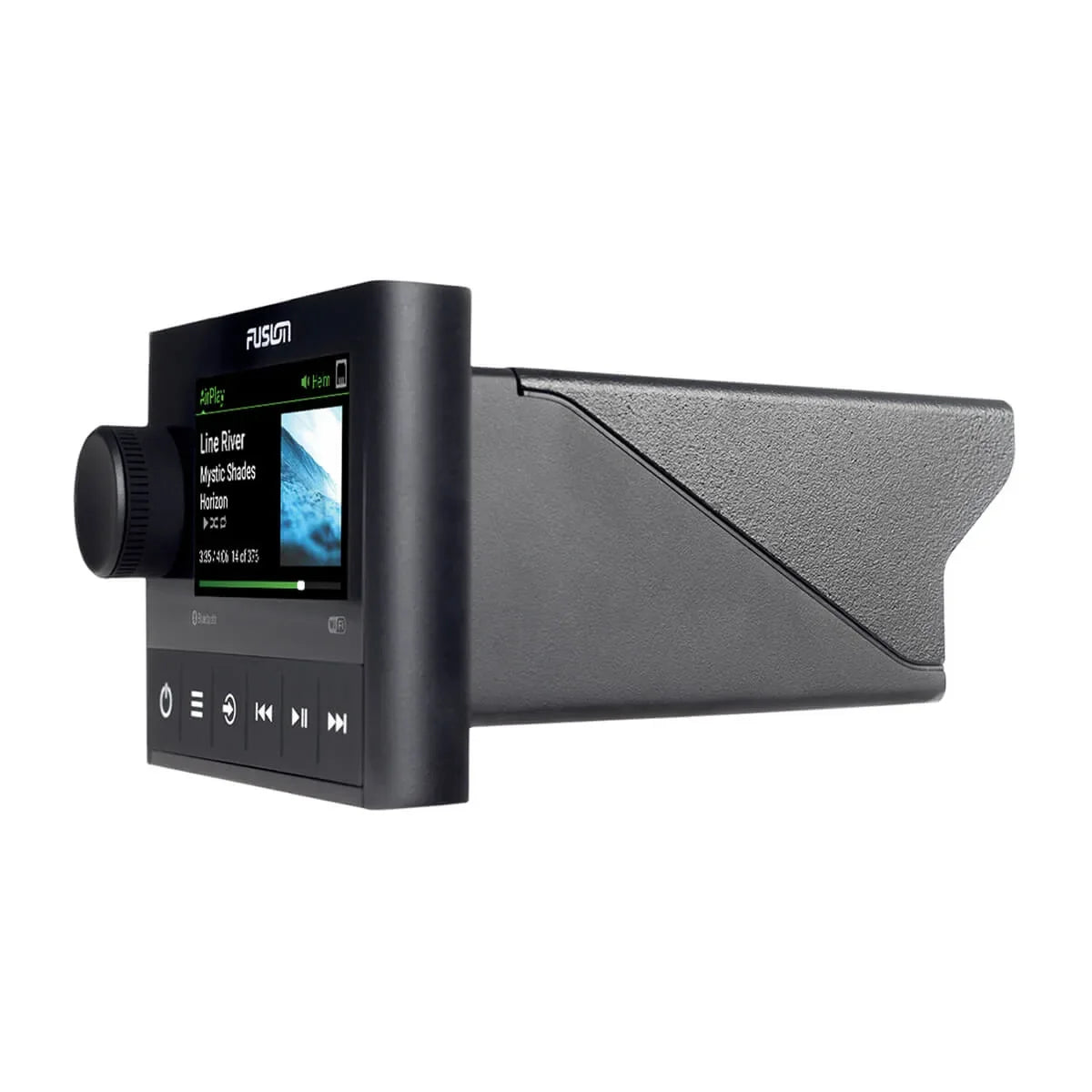

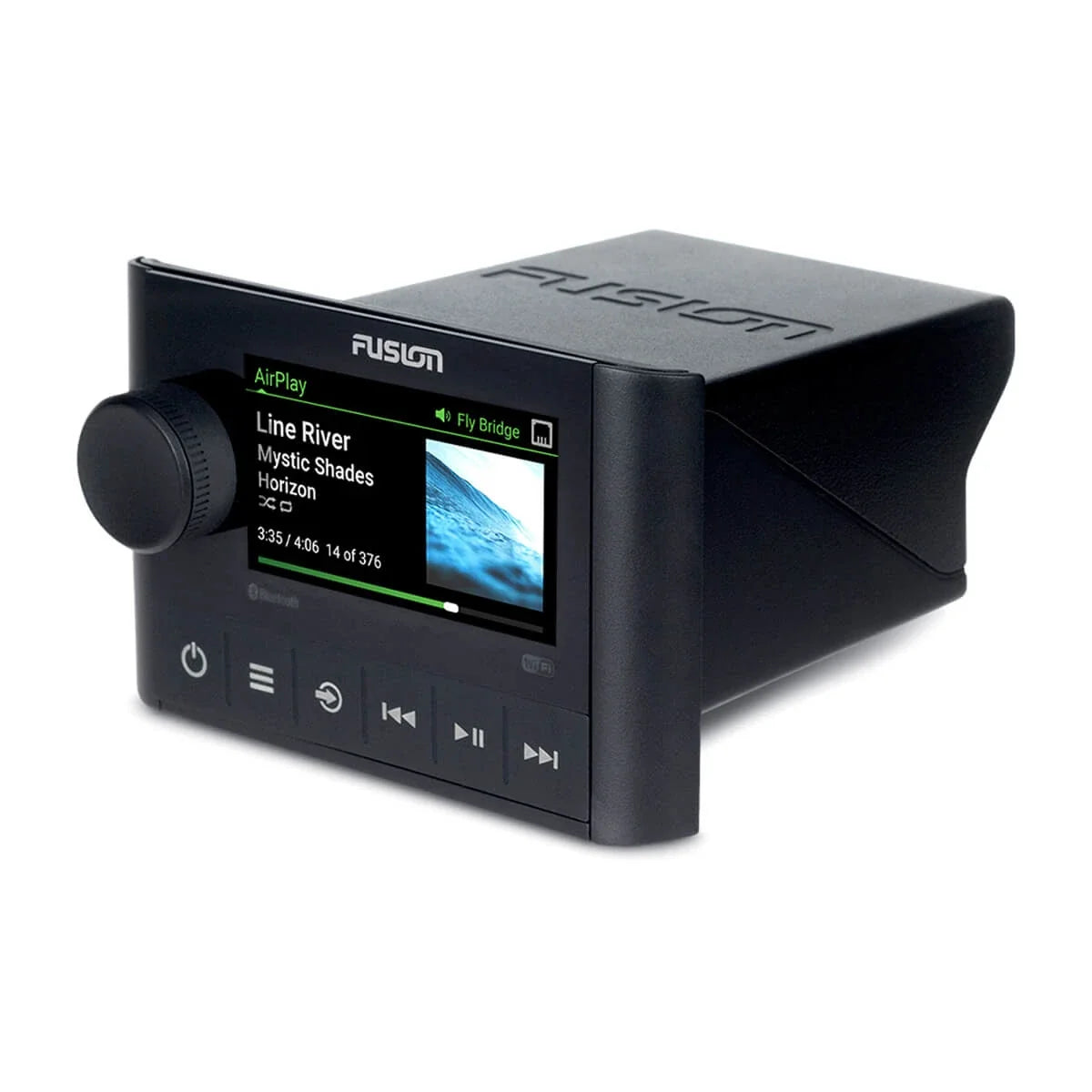

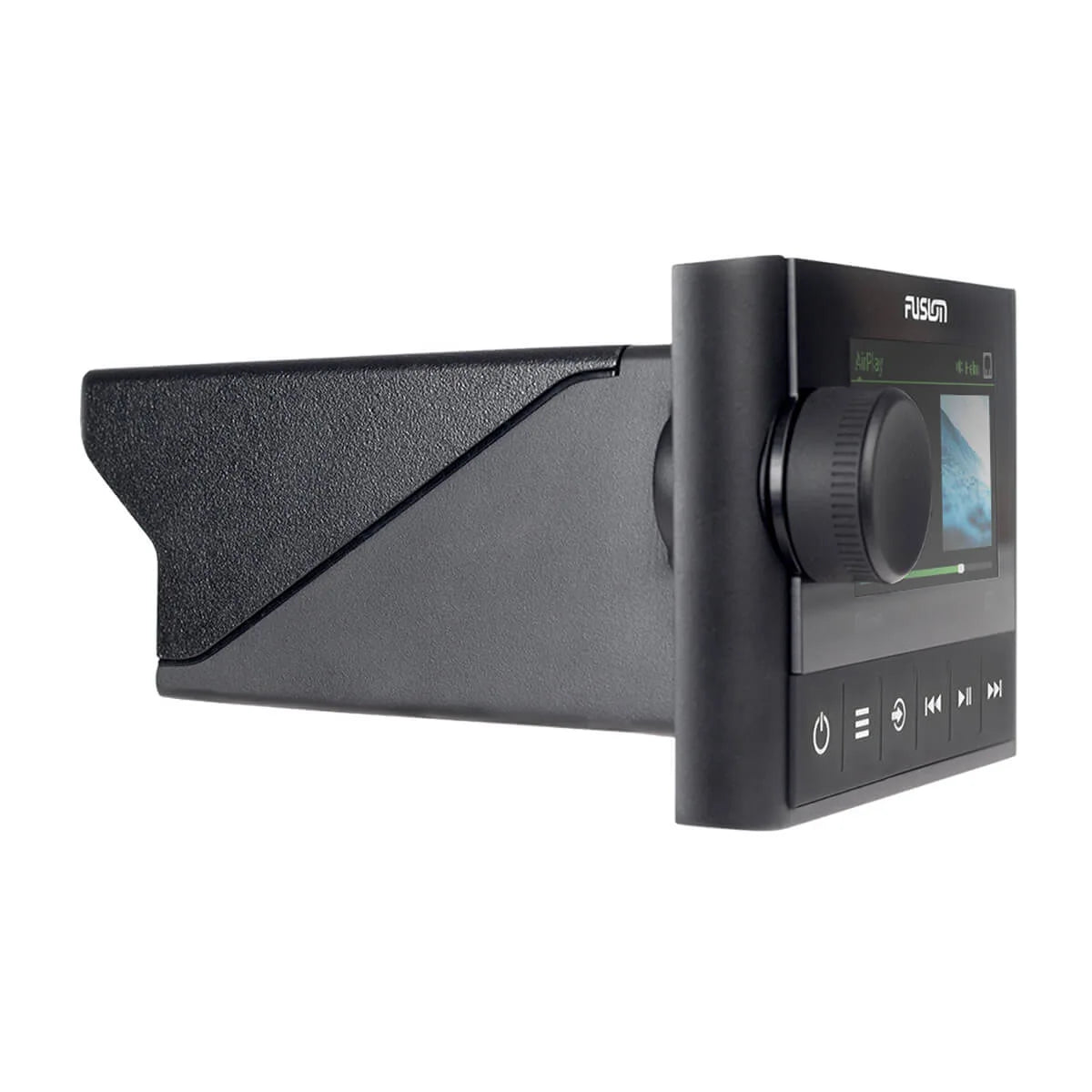

Fusion Apollo™ MS-SRX400 Marine Head Unit

Fusion Apollo™ MS-SRX400 Marine Head Unit

$80.00 $399.99
ControlAudio
Connectivity
Model/Color

Overview

THE APOLLO RA770 STEREO'S PERFECT COMPANION

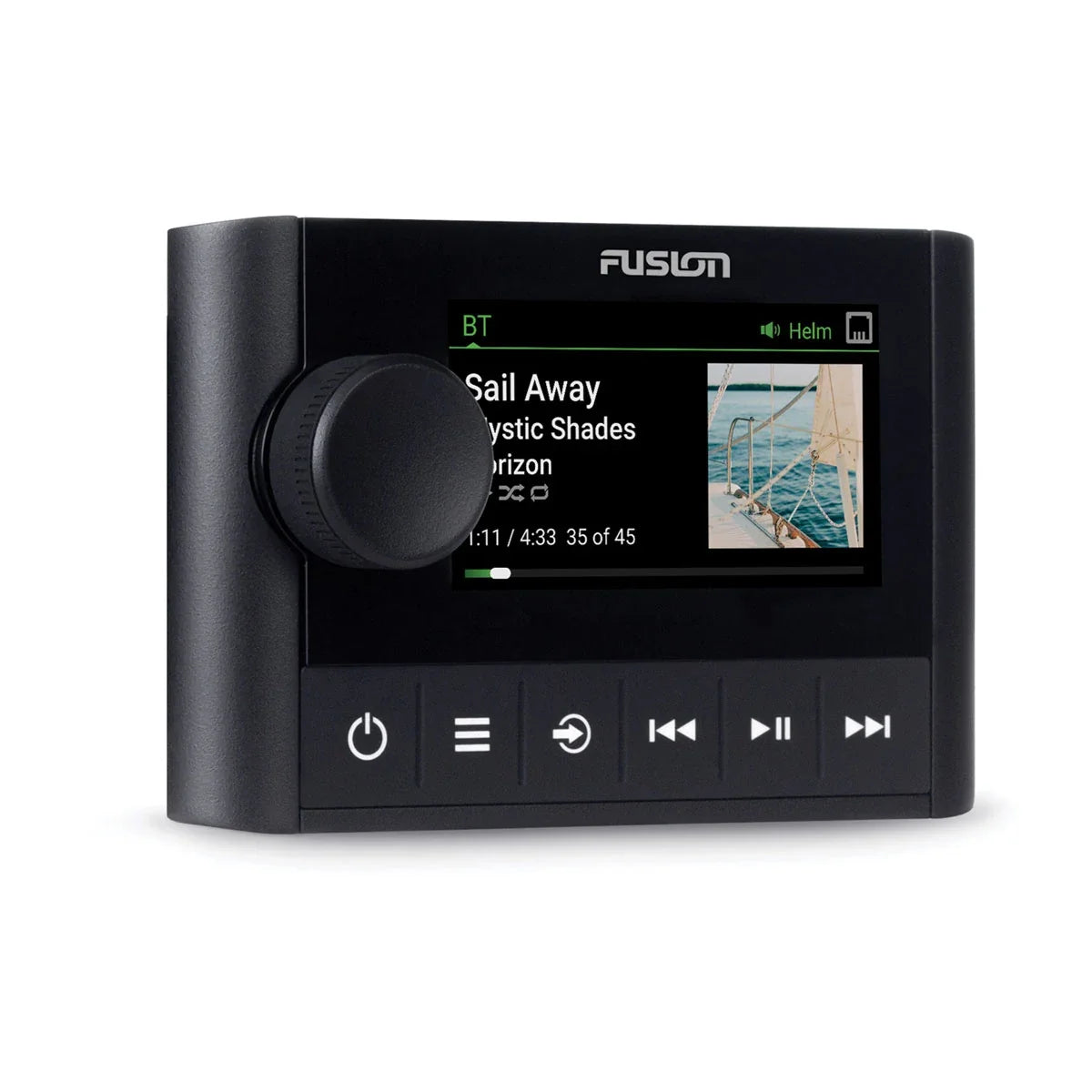

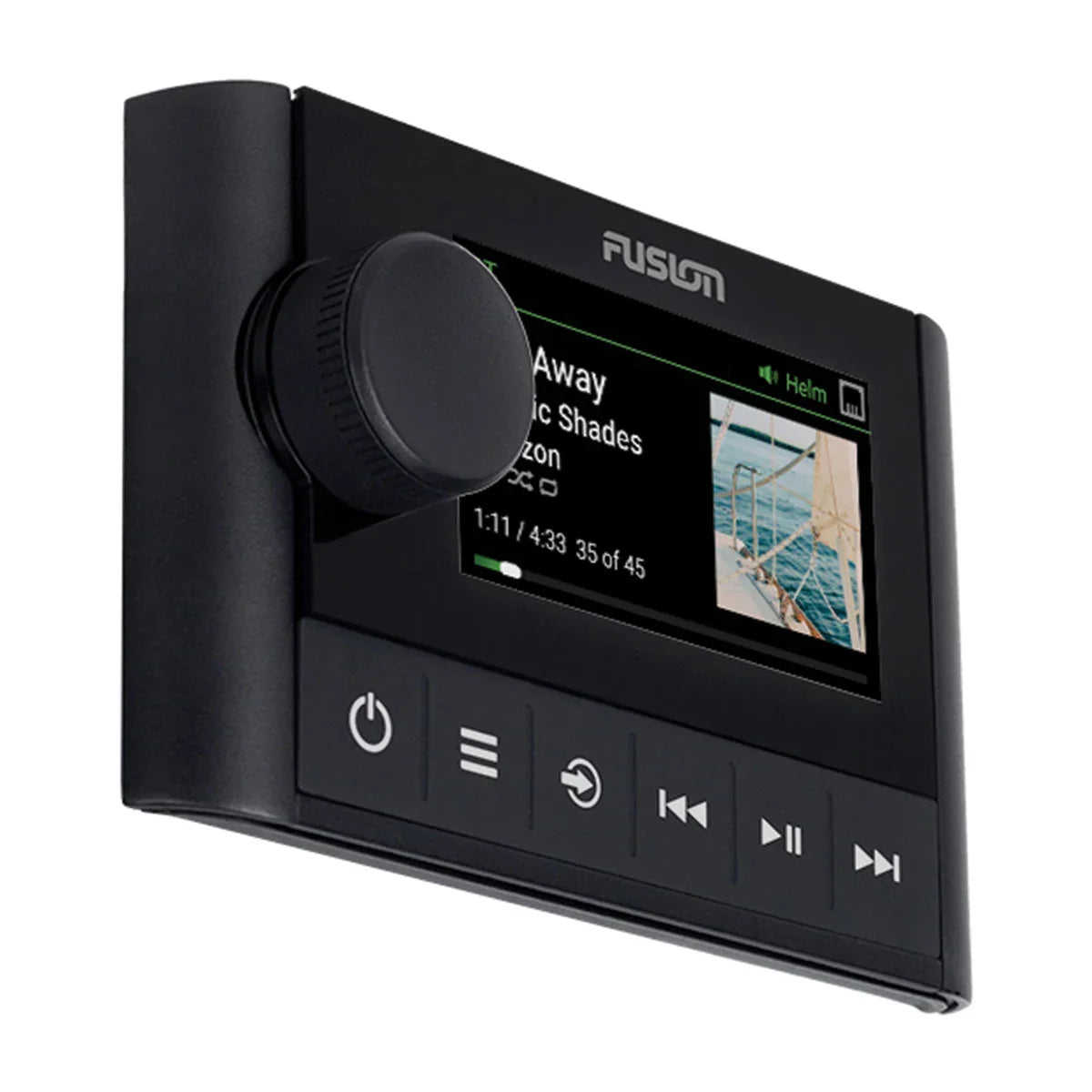

A perfect companion to Apollo RA770, the Apollo SRX400 zone stereo combines premium design and superior sound in a compact form factor.

      In the Box

      • Fusion MS-SRX400 marine zone stereo
      • Mounting gasket
      • Mounting template
      • Four 8-gauge, self-tapping screws
      • Two screw covers
      • Power, speaker, line-out, and subwoofer-out wiring harness
      • Documentation

      Specs

      General

      Physical dimensions Stereo dimensions (H x W x D): 2.76" x 4.33" x 4.81" (70 x 110 x 122 mm)
      Weight 12 oz (340 g)
      Water rating IPX6 and IPX7 (Front panel only, when properly installed)
      Power input 10.8-16 VDC
      Operating temperature range 32° to 122° F (0° to 50° C)
      Current (max.) 8 A
      Bluetooth wireless range Up to 30 ft (10 meters)
      Wireless frequencies/protocols Wi-Fi 2.4 GHz @ +15 dBm nominal
      Bluetooth 2.4 GHz @ +10 dBm nominal
      Compass-safe distance 3.9" (100 mm)

      Stereo Features

      Display 2.7" optically bonded color LCD
      Built-in amplifier Class-D (2 Ohm stereo-stable)
      Peak power 140 W
      Rated power output (2 Ohm) 43 W rms x 2 @ 14.4 V input < 10% THD
      Rated power output (4 Ohm) 26 W rms x 2 @ 14.4 V input < 10% THD
      Built-in Digital Signal Processing yes (with preconfigured DSP profiles)
      Stereo networking yes (wired or wireless)
      Fusion-Link™ control yes (with MFD and smartphone)
      Multi-Zone™ technology 1 zone
      Built-in Wi-Fi yes
      Bluetooth wireless technology yes
      Multi-language interface Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai / Turkish
      Software updates Over-the-air software updates via the Fusion-Link app
      Warranty 3 years

      Sources

      Sources AM / FM / Bluetooth / Apple AirPlay 2 / UPnP

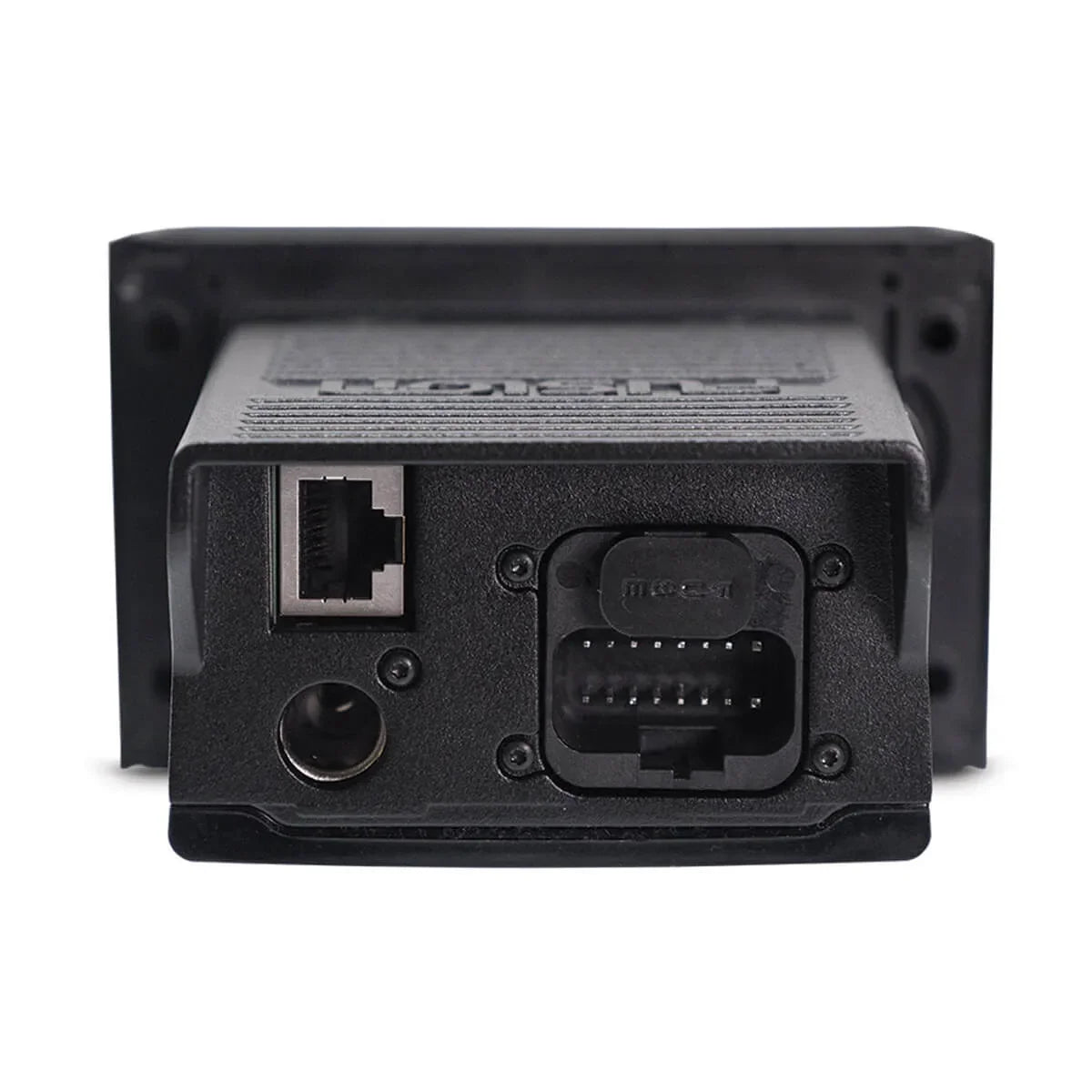

      Connectivity

      Ethernet One Ethernet port
      AM/FM radio One Motorola antenna connector port
      Speaker 2 x speaker connections (1 zone amplified)
      RCA Pre-out (left, right and subwoofer) 1 zone (requires external amplification)
      Line out 1 (1 x L + R per zone, requires external amplification)
      Subwoofer out 1 x mono output (requires external amplification)
