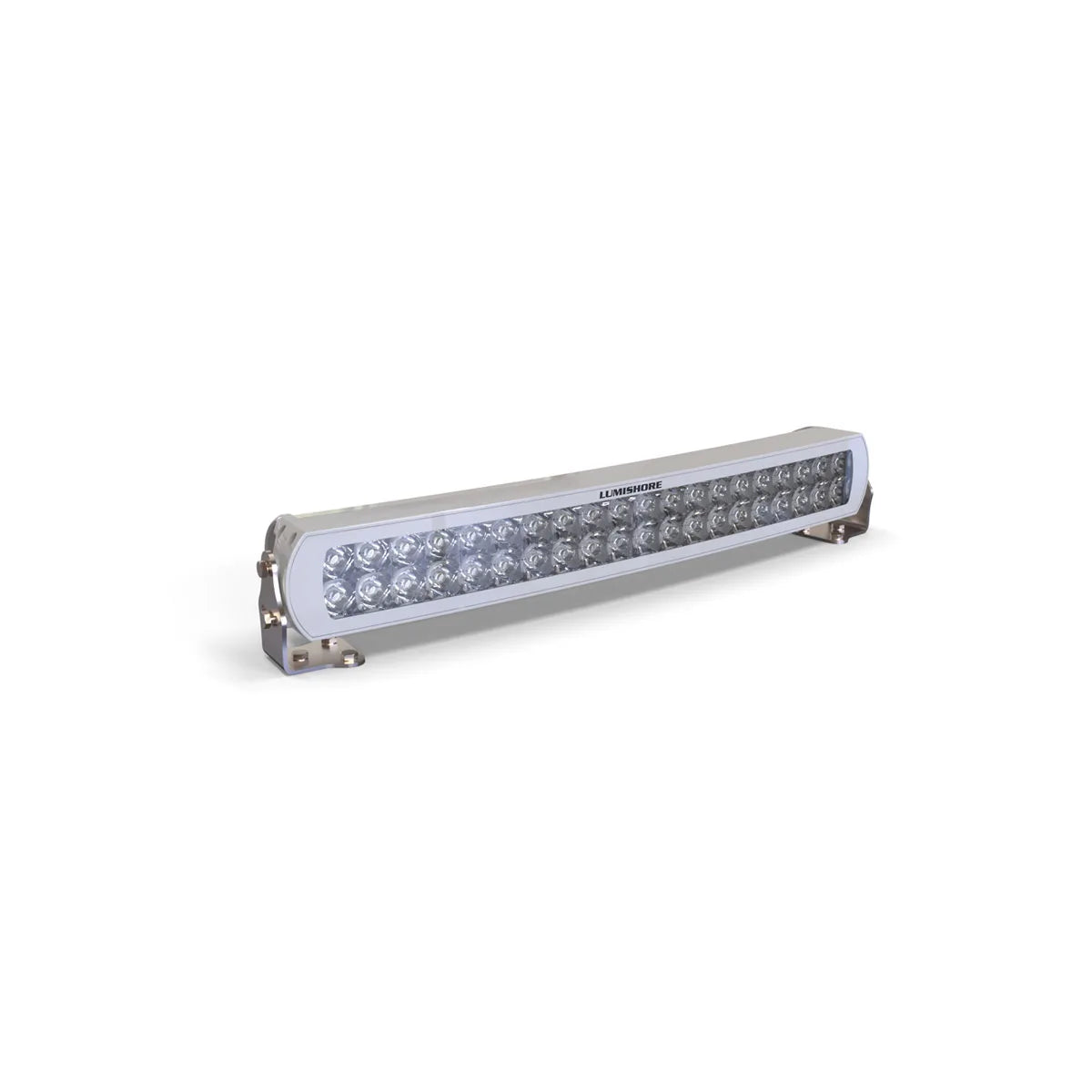

Lumishore® Curved Light Bar

Lumishore® Curved Light Bar

20"
$260.00 $1,299.99
Skip to product information
Lumishore® Curved Light Bar
  • Lumishore® Curved Light Bar
  • Lumishore® Curved Light Bar
Lumishore® Curved Light Bar

Lumishore® Curved Light Bar

$260.00 $1,299.99
Length

Overview

HIGH-INTENSITY LIGHTING WITH WIDE COVERAGE

Designed to cover a widespread area in high-intensity illumination, these light bars offer powerful, crisp and dimmable white light and are perfect for T-tops, helm roofs, fishing towers and bow platforms. They can be mounted wherever necessary to avoid bow glare and don't require a bulky harness or external relay.

WHITE LIGHT

20-, 30-, 40- AND 50-INCH SIZES

15,000–39,600 FIXTURE LUMENS

CONTROL VIA COMPATIBLE MFD, LUMISHORE DISPLAY, SMART DEVICE, MOMENTARY SWITCH OR ON/OFF SWITCH1

WIDE-BEAM ANGLE

IP68-RATED FOR DUST AND WATER PROTECTION

  1. The MFD and smart device control require the ECLIPSE Command Center or EOS-LUX Command Center; the Lumishore display control requires the EOS-LUX Command Center; the momentary switch control requires the ECLIPSE Command Center or LUX Control Module; or direct power via an on/off switch

In the Box

  • Lightbar
  • Pair of lightbar mounting brackets

Specs

General

Warranty 3 years
LED colors White (5000 K)
LED type 20": 40 x 10 W - White
30": 60 x 10 W - White
40" 80 x 10 W - White
50" 100 x 10 W - White
Fixture lumens 20": 15,000
30": 23,760
40": 31,680
50": 39,600
Beam angle Letterbox beam (vertical - horizontal)
20": 9°-20°
30": 9°-32°
40" 9°-45°
50" 9°-50°
Number of lights via direct power Not limited
Number of lights per Eclipse Comand Center/Expansion module zone 16 max (Vin and Gnd are supplied separately to Command Center/Expansion Module)
Number of lights per LUX light control module 16 maximum
Electrical installation 3 wire
Operating voltage 10.5-31 VDC
Current consumption 12 V (max) 20": 12.8 A
30": 19.3 A
40": 25.7 A
50": 32 A
Current consumption 24 V (max) 20": 6.4 A
30": 9.6 A
40": 12.8 A
50": 16 A
Average power draw 20": 154 W
30": 232 W
40": 308 W
50": 384 W
Construction Powder coated aluminum body with Makrolon lens
Water and dust rating IP68

Control Options

Direct power via on/off switch yes
Momentary switch yes (via ECLIPSE Command Center or LUX Control Module)
Eclipse Command Center yes
EOS-LUX Command Center yes
Compatible MFD yes (via ECLIPSE Command Center or EOS-LUX Command Center)
Smart device yes (via ECLIPSE Command Center or EOS-LUX Command Center)
EOS-LUX-SUPRA display yes (via EOS-LUX Command Center)

Mounting Dimensions

Dimensions (width) 20": 22.56" (573 mm)
30": 32.40" (823 mm)
40": 42.14" (1070 mm)
50": 51.80" (1315 mm)
Dimensions (depth) 20": 2.83" (72 mm)
30": 2.83" (72 mm)
40": 2.83" (72 mm)
50": 2.83" (72 mm)
Dimensions (height) 20": 3.78" (96 mm)
30": 4.37" (111 mm)
40": 5.20" (132 mm)
50": 6.23" (158 mm)
Mechanical installation

Stainless steel fixing brackets
