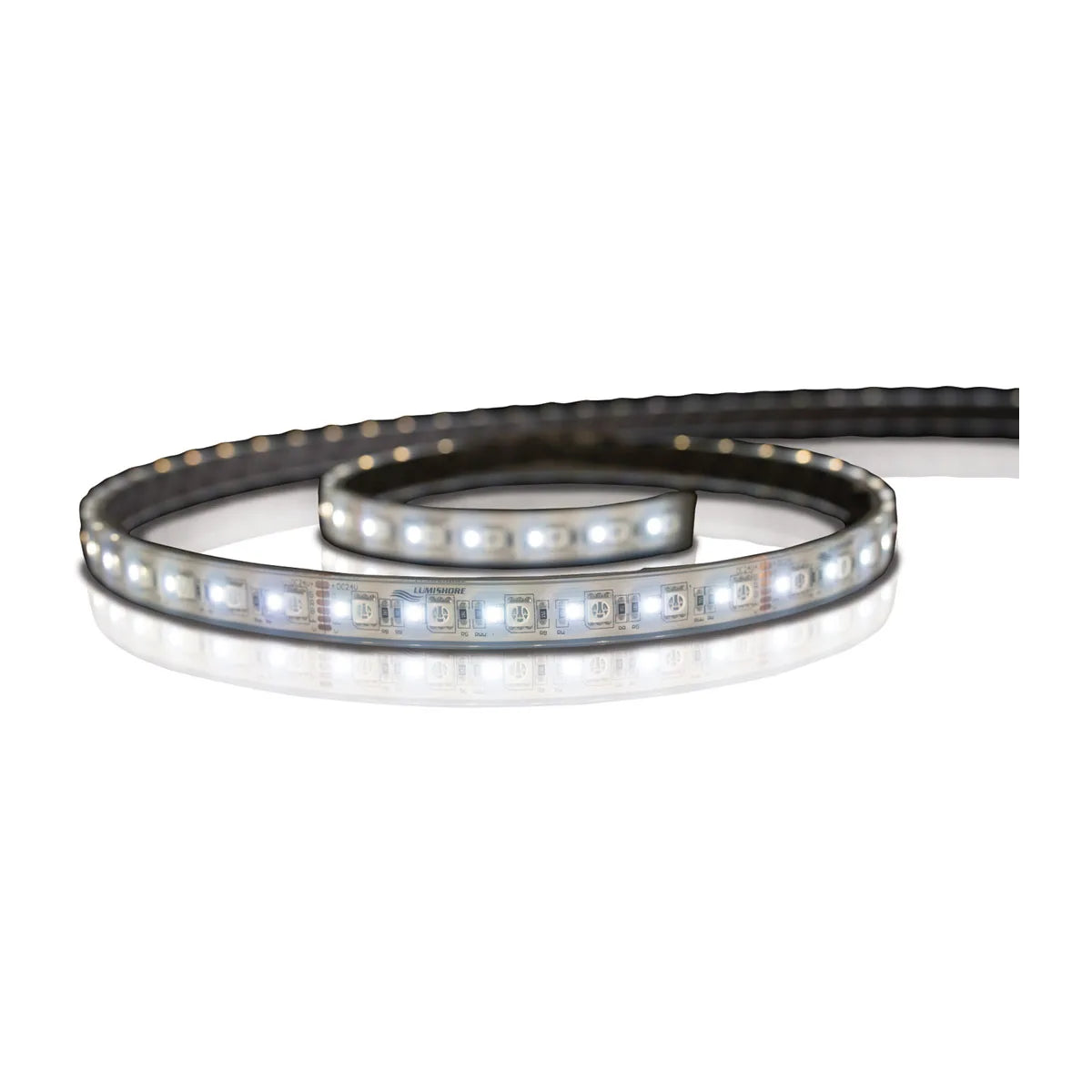

Lumishore® LUX SL180 Cut-Seal

$20.00 $99.99

Overview

CUT-TO-LENGTH, FULL-COLOR MARINE STRIP LIGHTING

These strip lights deliver CRGBW lighting with tunable white and customizable length. Easily cut every 100 mm, and seal with the included kit for seamless installation. The low-profile design fits seamlessly in gunwales, under furniture or behind panels.

FULL-COLOR CRGBW LIGHTING

CUT AND SEAL TO YOUR NEEDED LENGTH

60 CRGBW LEDS PER METER

CONTROL VIA COMPATIBLE MFD, LUMISHORE DISPLAY, SMART DEVICE OR MOMENTARY SWITCH1

IP68-RATED FOR DUST AND WATER PROTECTION

3-YEAR WARRANTY

The momentary switch control requires the Strip Driver; the MFD, Lumishore display and smart device control require the EOS-LUX Command Center

In the Box

LUX SL180 strip light
Sealing kit with endcaps
Pack of fixing clips

Specs

General
Warranty	3 years
LED colors	CRGBW, Full Spectrum RGB and Tuneable White (2700 K to 6500 K) in the same fixture
LED type	60 CRGBW/m
Length of strip per strip driver	up to 10 m total
Electrical installation	Plug and play
Operating voltage	10.5-31 VDC (via LUX Control Module)
Current consumption 12 V (max)	0.6 A/m (via strip driver)
Current consumption 24 V (max)	0.36 A/m (via strip driver)
Average power draw	8.7 W/m
Construction	Fully encapsulated and potted
Water and dust rating	IP68

Control Options
Momentary switch	yes (via Strip Driver)
EOS-LUX Command Center	yes
Compatible MFD	yes (via EOS-LUX Command Center)
Smart device	yes (via EOS-LUX Command Center)
EOS-LUX-SUPRA display	yes (via EOS-LUX Command Center)

Mounting Dimensions
Dimensions (depth)	0.197" (5 mm)
Dimensions (height)	0.571" (14.5 mm)
Mechanical installation	Cut to length and seal cut end before installation with silicone (supplied). Mount with adhesive strips, screw clips (supplied) or stainless steel clips (optional).
